Product Description

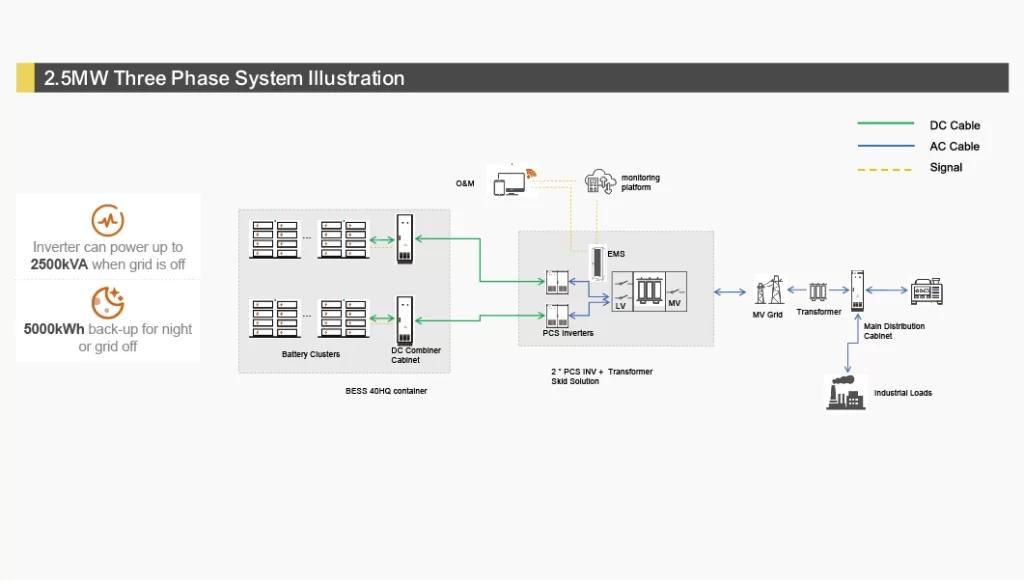

The UEI-BESS-2.5MW / 5MWh is a turnkey containerized energy storage solution engineered for grid-scale and commercial energy management. Housed in a prefabricated 40ft container, the system integrates 2.5MW power conversion, 5MWh of high-voltage LFP batteries, a step-up MV transformer, and full monitoring and safety infrastructure.

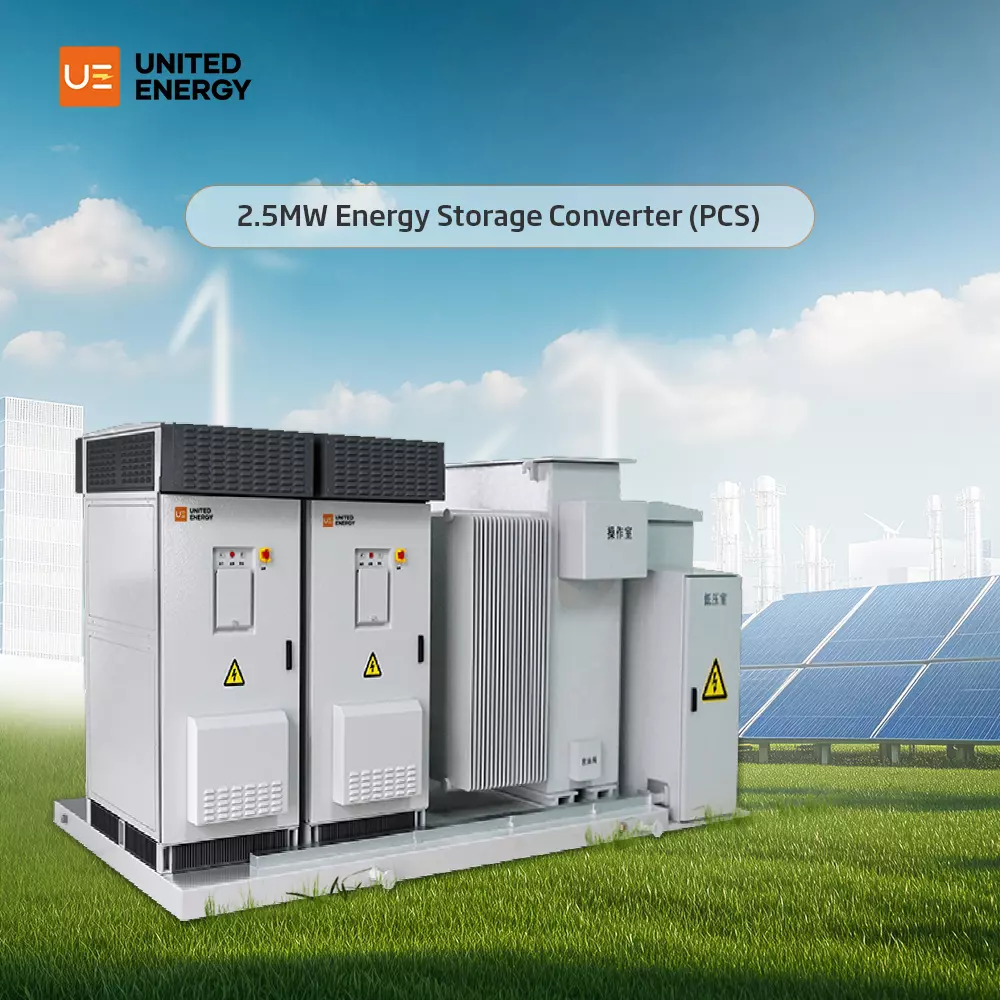

It contains 14 battery clusters of 358.4kWh each (1280V @ 280Ah), two 1.25MW energy storage inverters (PCS), and all necessary components including DC combiner cabinets, MV switchgear, local communication and EMS cabinet, fire suppression, HVAC, lighting, and power systems.
The entire system is fully factory-tested and designed for plug-and-play installation with minimal on-site wiring. It supports black-start operation, peak shaving, load shifting, and microgrid integration, making it ideal for large factories, data centers, renewable integration, and backup applications.
Technical Specifications
| Category | Details |
|---|---|
| Rated Power | 2.5MW (PCS: 2 × 1.25MW) |
| Energy Capacity | 5.017MWh (14 × 358.4kWh clusters) |
| Battery Type | LFP (LiFePO₄), 1280V / 280Ah per cluster |

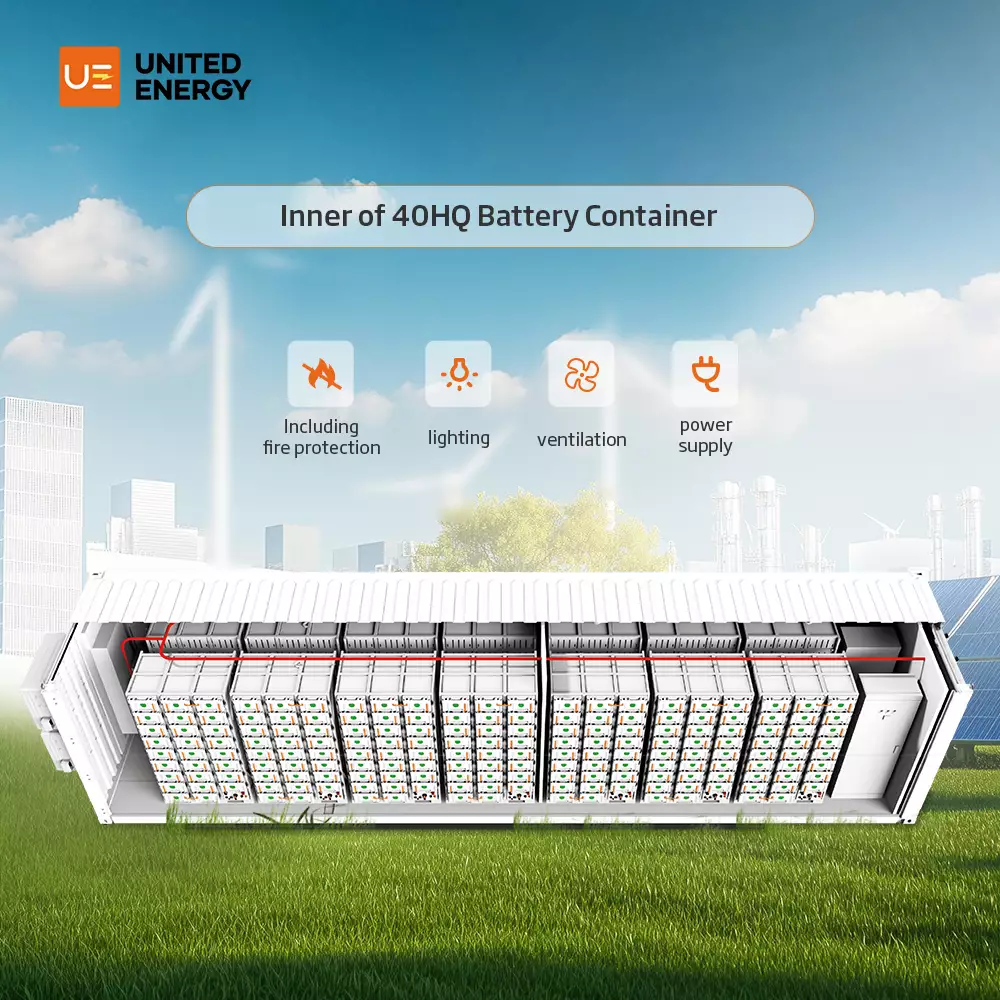

| Battery Configuration | 14 clusters, housed in 40ft ESS container |
| PCS Voltage Range | 900 – 1350VDC input, MV output |
| Transformer | 2500kVA with fan cooling, integrated with MV power cabinet |
| AC Output Voltage | 10kV / 20kV Medium Voltage grid compatible |

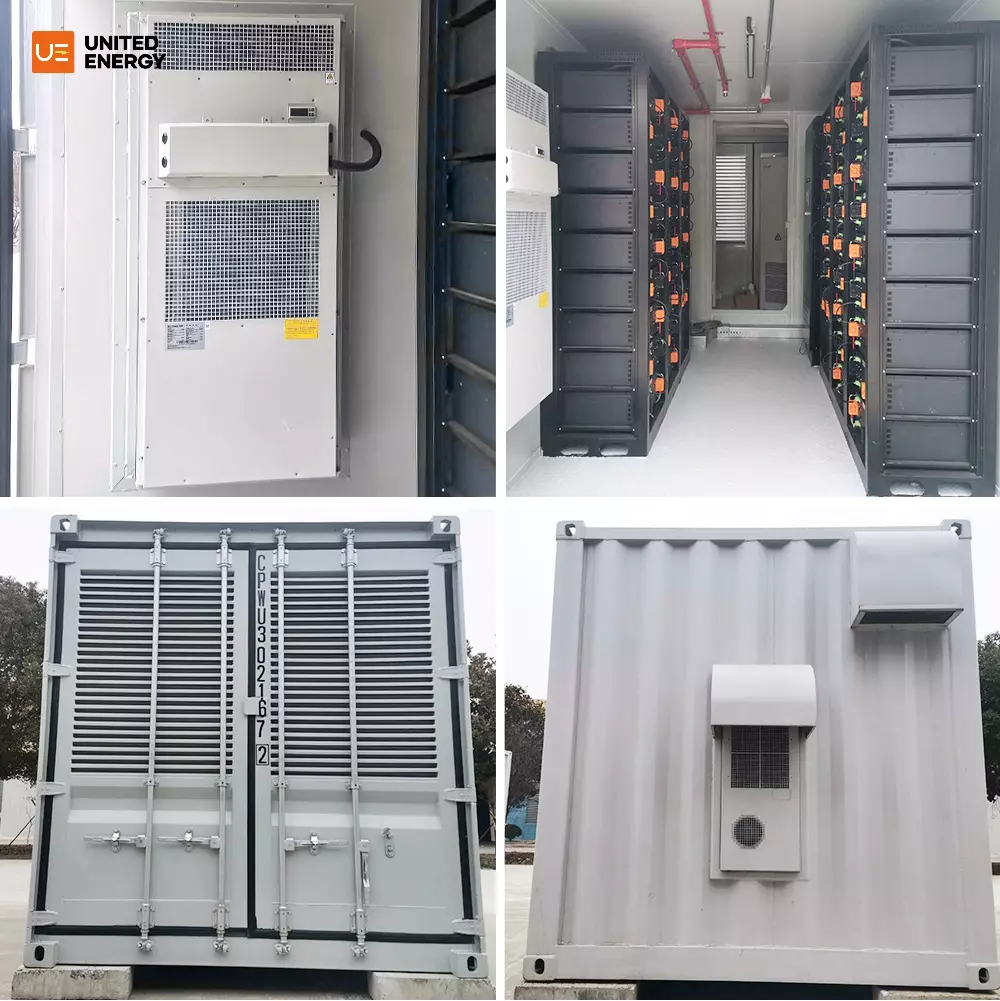

| Cooling System | 2 × 40kW air conditioners (battery container) |
| Fire Protection | Container includes sensors, extinguishers, ventilation |
| Container | 40ft prefabricated container (IP54) |
| DC Combiner Cabinet | 8-in-1-out × 2 |
| EMS & Monitoring | Local EMS cabinet + switch + UPS + remote SCADA integration |

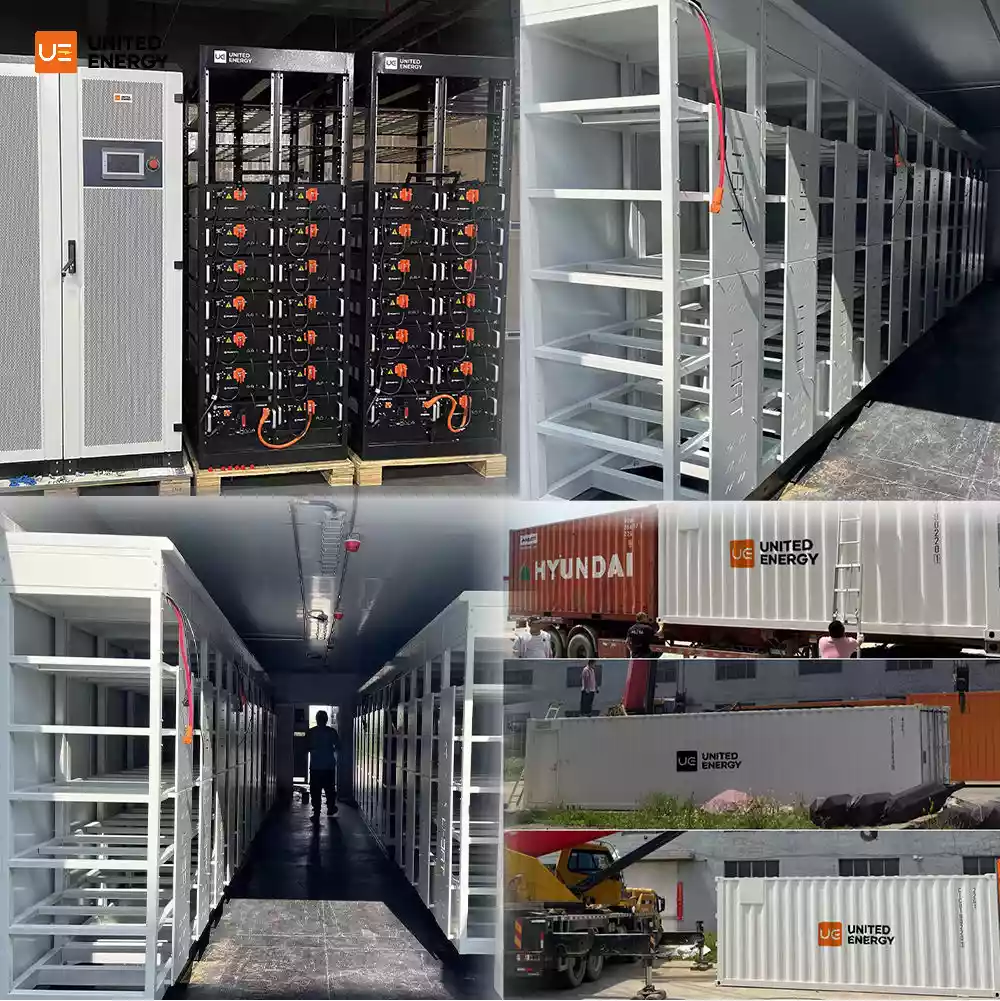

| Installation | Plug & play, pre-wired and factory-tested |
| Certifications | CE, IEC, UN38.3, IEC62619, ISO |
| Application | Industrial backup, peak shaving, demand response, microgrids |
