Product Detailed Description:

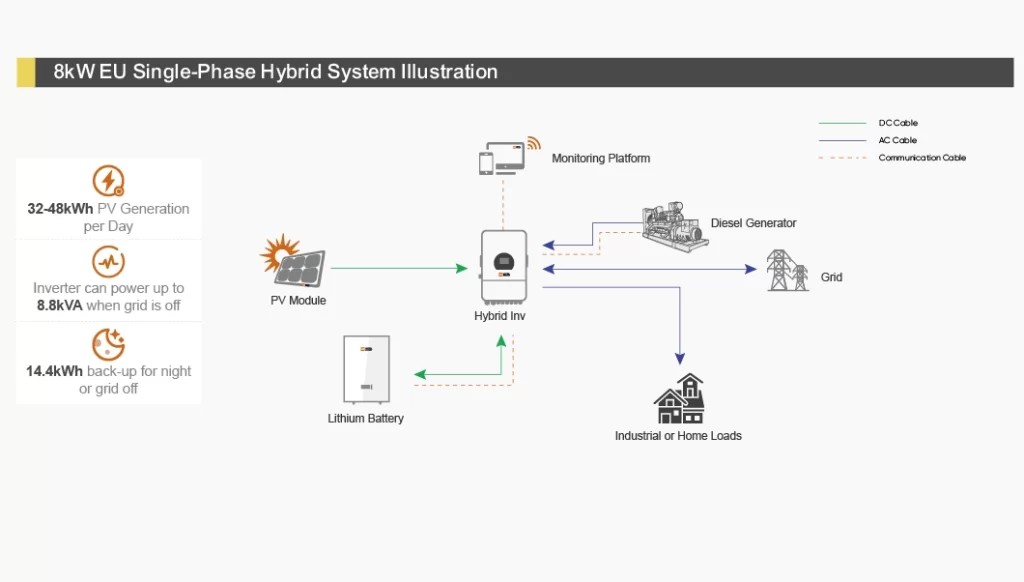

The UE 8kW Hybrid System is a scalable energy powerhouse built for reliability:
Key Components:
- Solar Panels:
- 500W bifacial modules (2200×1134×35mm, 23kg) with MBB cell technology.

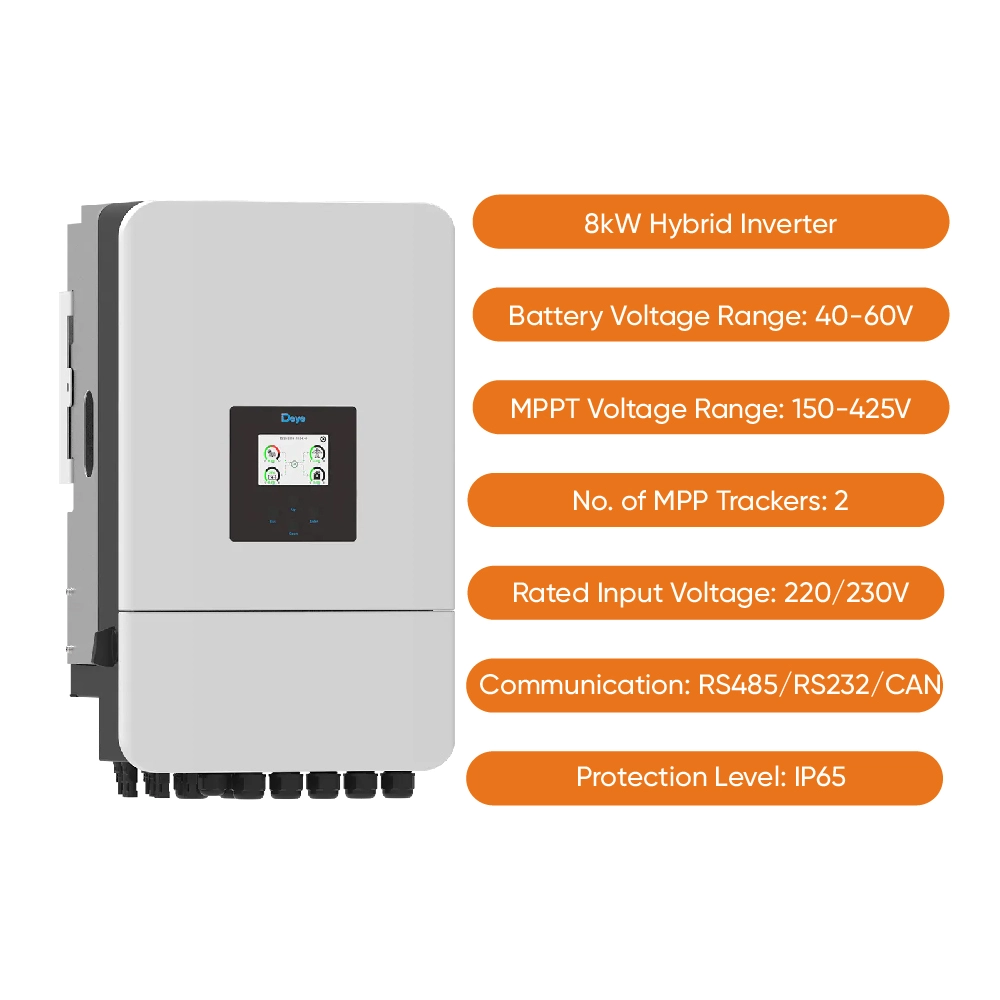

- Hybrid Inverter:
- 8kW continuous power (220/380V), dual MPPT (150-450V).
- Battery Storage:
- 15kWh LiFePO4 (modular design, expandable to 30kWh).
- Accessories:
- Aluminum mounts, AC/DC distribution boxes, and MC4 connectors.
Performance Highlights:
- Daily Generation: 32–48kWh (sunny conditions).
- Backup Power: 14.4kWh for overnight/outage coverage.
- Certifications: CE, IEC, UN38.3.
Technical Specifications Table:
| Component | Specifications |
|---|---|
| Solar Panel | 500W bifacial, 2200×1134×35mm |
| Inverter | 8kW hybrid, 97.9% efficiency, dual MPPT |
| Battery | 15kWh LiFePO4 (48V/312Ah), expandable |
| System Voltage | 150-450V DC (PV), 220/380V AC (output) |
| Operating Temp | -20°C to 50°C (battery), -40°C to 60°C (panel) |
| Communication | WiFi/Bluetooth monitoring |
