20kW Hybrid Solar System Product Detailed Description:

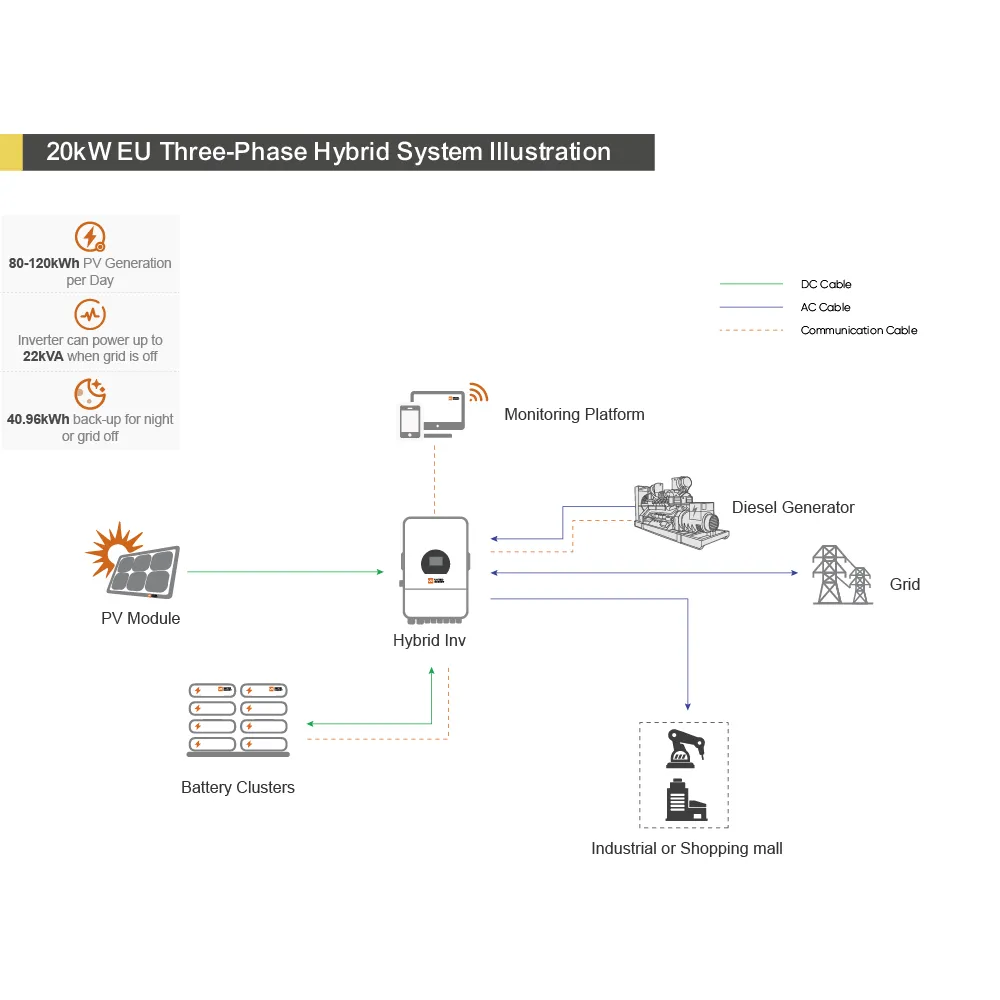

Our 20kW EU Hybrid PV + ESS System is a turnkey energy solution for businesses seeking energy independence, cost savings, and sustainability. The system includes:
- High-Performance Solar Panels: 590Wp N-type TOPCon bifacial modules ensure maximum energy harvest even in low-light conditions.
- Hybrid Inverter (20kW): Dual MPPT (150-850V), 3-phase output (220/380V, 230/400V), and 97.6% peak efficiency for seamless power conversion.
- High-Voltage Lithium Battery (40.96kWh): 409.6V/100AH battery cluster with 8 modules in series, providing long-lasting nighttime backup.
- Durable Mounting System: Aluminum alloy brackets for rooftop installation, built to withstand extreme weather.
- Smart Energy Management: Optional diesel generator support + remote monitoring for optimized energy use.
Perfect for: Factories, shopping malls, warehouses, and any business needing reliable, scalable, and eco-friendly power!
Technical Specifications Table:
| Component | Specifications |
|---|---|
| Hybrid Inverter | 20kW, 3-phase (220/380V, 230/400V), 97.6% efficiency, dual MPPT (150-850V) |
| Solar Panels | 590Wp, N-type TOPCon bifacial, 2279x1134x30mm, 31.5kg per panel |
| Battery Storage | 40.96kWh (409.6V/100AH), HV lithium, 368.4V-460.8V range, 8 modules in series |
| Operating Temperature | -40°C to 90°C, TUV-certified |
| Backup Power | Up to 22kVA during grid outages |
| Daily Energy Output | 80-120kWh (solar) + 40.96kWh (battery backup) |
| Certifications | CE, IEC, TUV |
