Product Details
The UEI-BESS-2.4MW-5MWh is a turnkey energy storage system designed for industrial and commercial applications. It combines high-capacity battery storage (5.015MWh) with a robust 2.4MW PCS inverter system, all housed in IP54-rated, fire-protected containers. The system features:

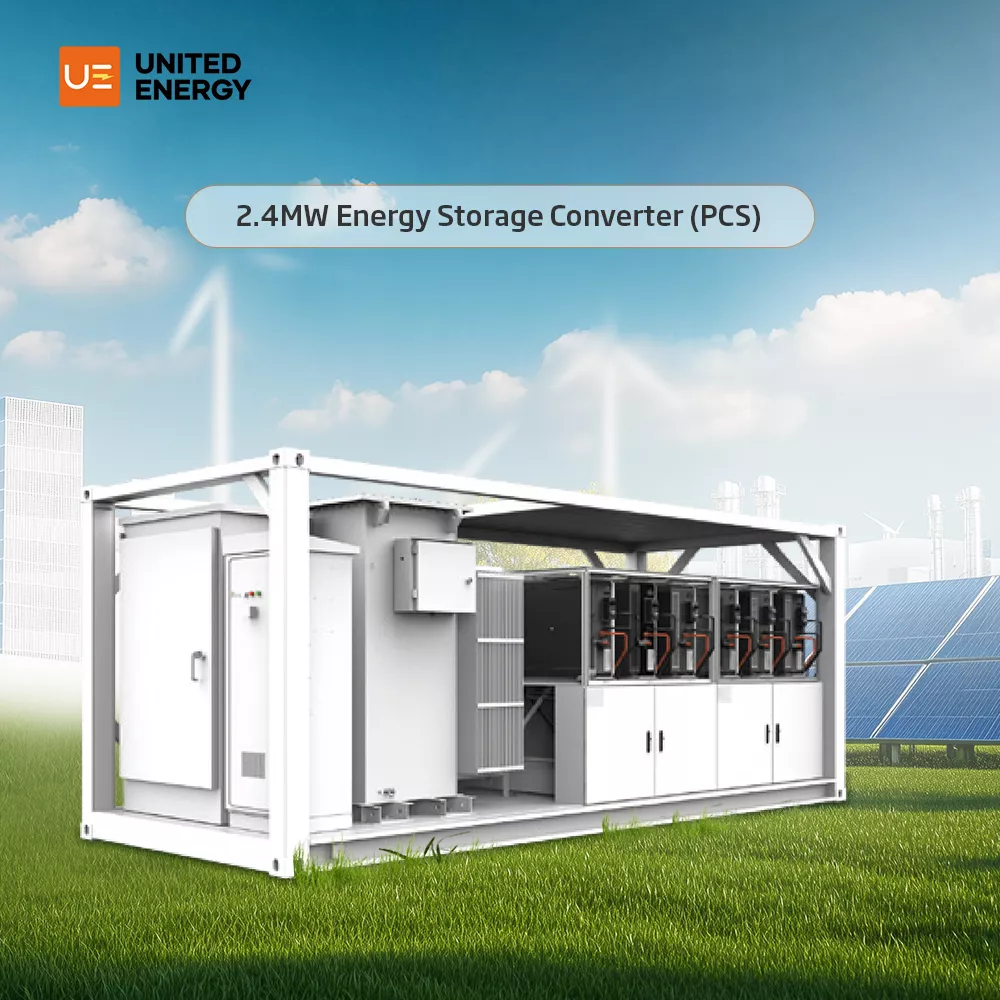

- 12x 200kW PCS inverters + 2500kVA transformer for seamless grid integration.

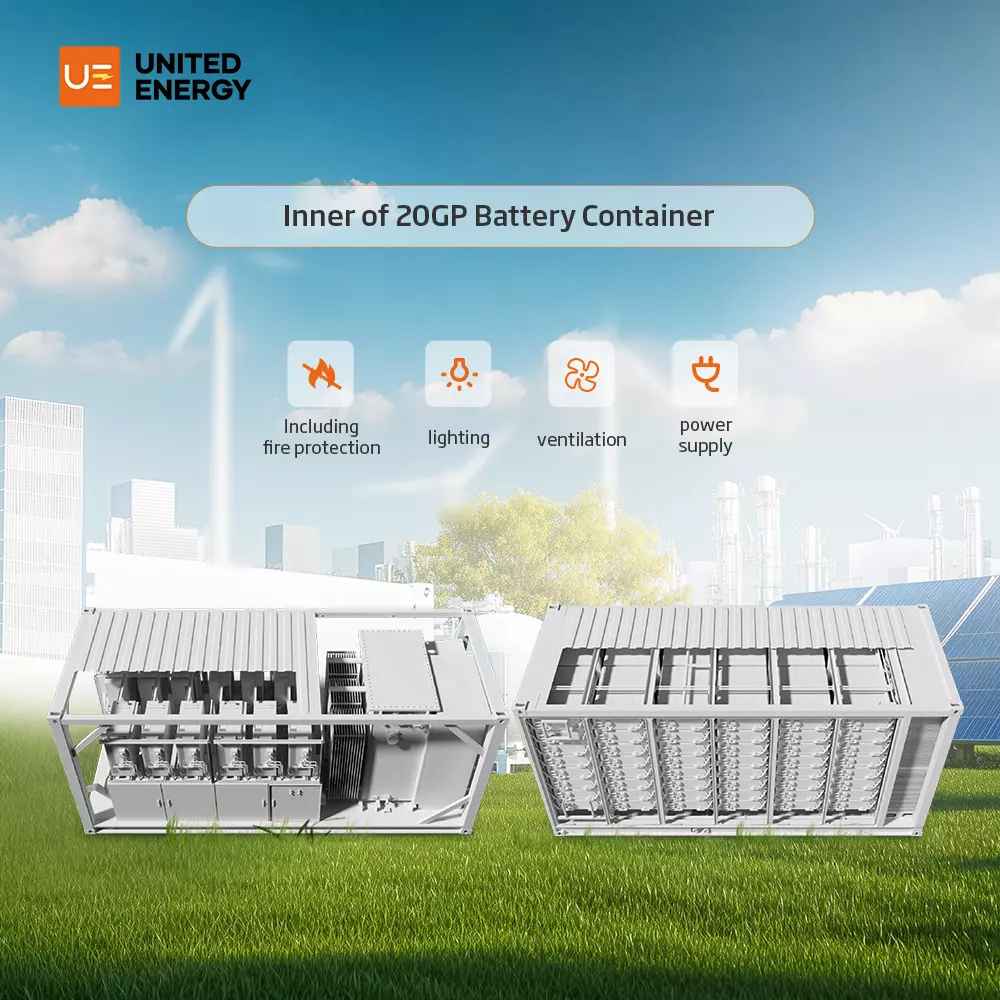

- Liquid-cooled battery clusters (1331.2V, 314Ah, 418kWh each) for optimal thermal management.

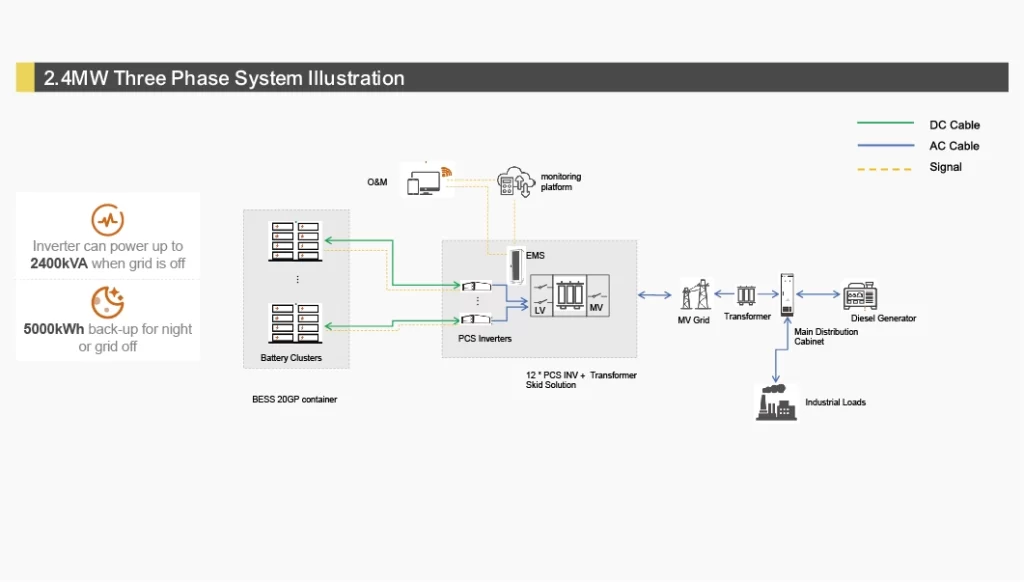

- Integrated EMS for real-time monitoring, multi-parallel scalability, and diesel generator compatibility.
- Prefabricated design – Includes HV/LV cabinets, communication systems, and cooling infrastructure.
Ideal for load shifting, peak shaving, and renewable energy stabilization.
Technical Specifications
| Component | Details |
|---|---|
| PCS Capacity | 2.4MW (200kW x 12 units) |
| Battery Capacity | 5.015MWh (418kWh x 12 clusters) |
| Voltage/Current | 1331.2V, 314Ah per cluster |
| Cooling System | 40kW liquid cooling + IP54 protection |
| Transformer | 2500kVA with integrated HV cabinet |
| Compliance | EU/US standards, EMS-controlled, fire extinguishing system |
| Container Dimensions | 20GP standard (pre-fabricated) |
