16kW Hybrid Solar System Product Detailed Description:
The Split Phase 16kW UL Hybrid PV+ESS System is a turnkey solar + storage solution for homeowners, small businesses, and off-grid installations. Featuring a dual 8kW UL-certified split-phase inverter, dual MPPT tracking, and WiFi connectivity, this system ensures optimal solar harvest and real-time monitoring.
With 40 high-efficiency 450W bifacial N-type Topcon panels, the system can produce up to 108kWh daily. Its 28.8kWh battery bank, built from 2 x 48V 200Ah lithium modules, delivers uninterrupted night-time power or backup during outages.

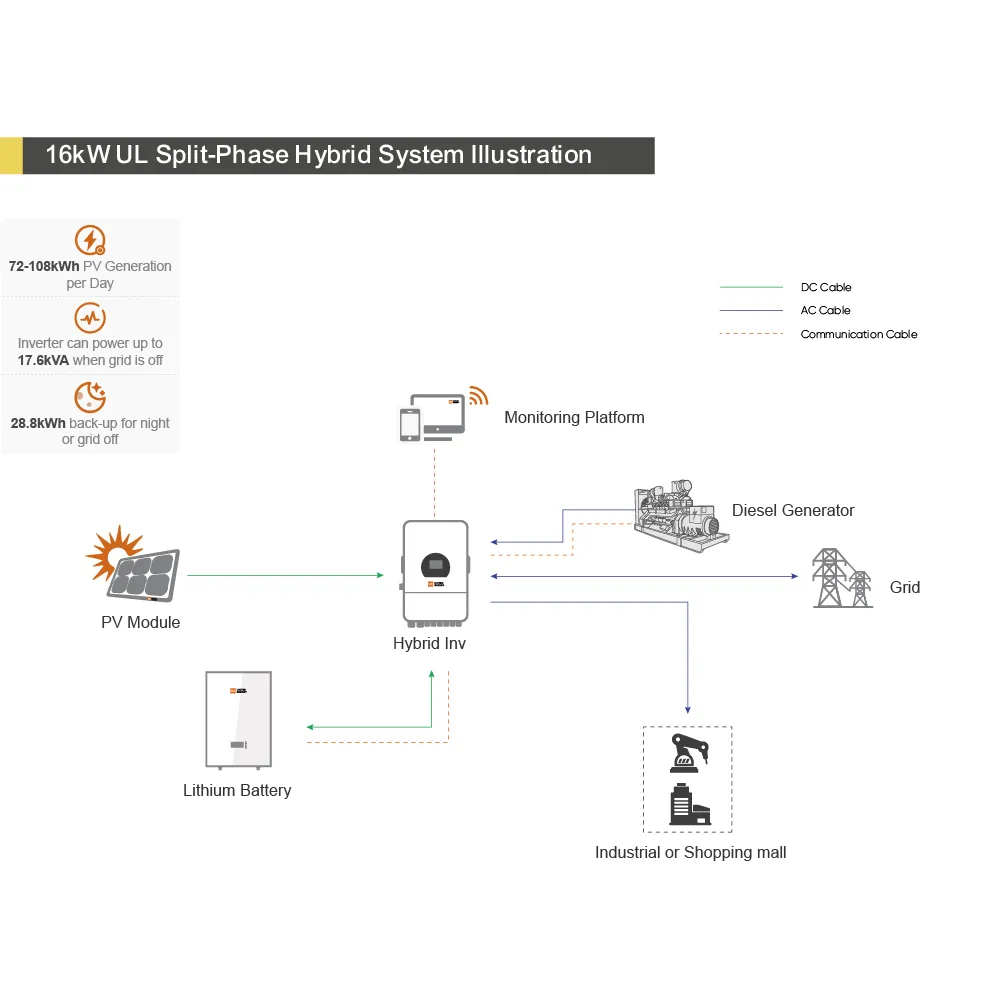

This system supports both on-grid and off-grid operation, black-start functionality, and even diesel generator integration. Thanks to its parallel expansion capability, you can scale to three-phase applications with ease. Built for extreme climates and certified to meet North American standards, the 16kW hybrid system is a reliable choice for those seeking clean, 24/7 power independence.
Technical Specifications Table:
| Component | Specification |
|---|---|
| Inverter | 2 x 8kW UL Hybrid Inverter, Split Phase, 97.6% Efficiency, WiFi |
| Solar Panels | 40 x 450W Bifacial Topcon Panels (UE-450M-54HBD) |
| Battery Storage | 2 x 48V 200Ah LiFePO₄ Batteries, 28.8kWh Total |
| PV Generation | 72–108kWh/day |
| Backup Output | Up to 17.6kVA when grid is off |
| Mounting Structure | Aluminum Brackets for Rooftop Installation |
| Monitoring | WiFi, Web Portal, Mobile App |
| Certifications | UL, CE, IEC, TUV |
