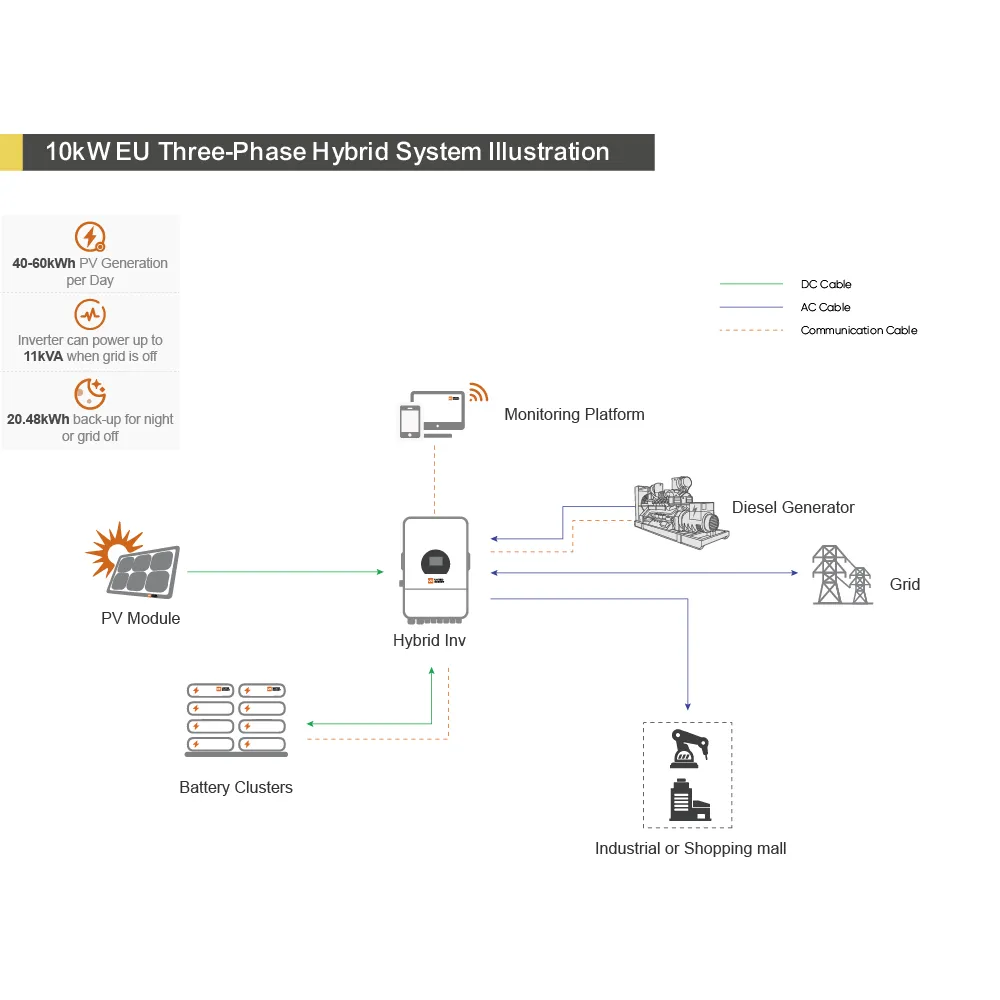

10kW Hybrid PV + ESS System Product Detailed Description:
Our 10kW EU Hybrid PV + ESS System is a compact yet powerful solution for SMEs, agricultural operations, and residential complexes. Key features include:
- High-Yield Solar Panels: 450Wp monocrystalline modules with bifacial technology for enhanced energy harvest.
- Hybrid Inverter (10kW): Dual MPPT (150-850V), 3-phase output (200/250V), and 97.8% peak efficiency for optimal performance.
- High-Voltage Lithium Battery (20.48kWh): 51.2V/400AH battery bank with long cycle life and fast charging.
- Durable Mounting System: Aluminum alloy brackets for easy rooftop or ground installation.
- Plug-and-Play Accessories: Includes AC distribution box, PV cables, and MC4 connectors for hassle-free setup.
Ideal for: Small factories, farms, schools, and multi-unit housing needing affordable, sustainable energy.
Technical Specifications Table:
| Component | Specifications |
|---|---|
| Hybrid Inverter | 10kW, 3-phase (200/250V), 97.8% efficiency, dual MPPT (150-850V) |
| Solar Panels | 450Wp, monocrystalline bifacial, 1720x1140x30mm, 28.5kg per panel |
| Battery Storage | 20.48kWh (51.2V/400AH), HV lithium, 77.8V-75.6V range |
| Operating Temperature | -40°C to 90°C, TUV-certified |
| Backup Power | Supports critical loads during grid failures |
| Daily Energy Output | 40-60kWh (solar) + 20.48kWh (battery backup) |
| Certifications | CE, IEC, TUV |
