Product Description

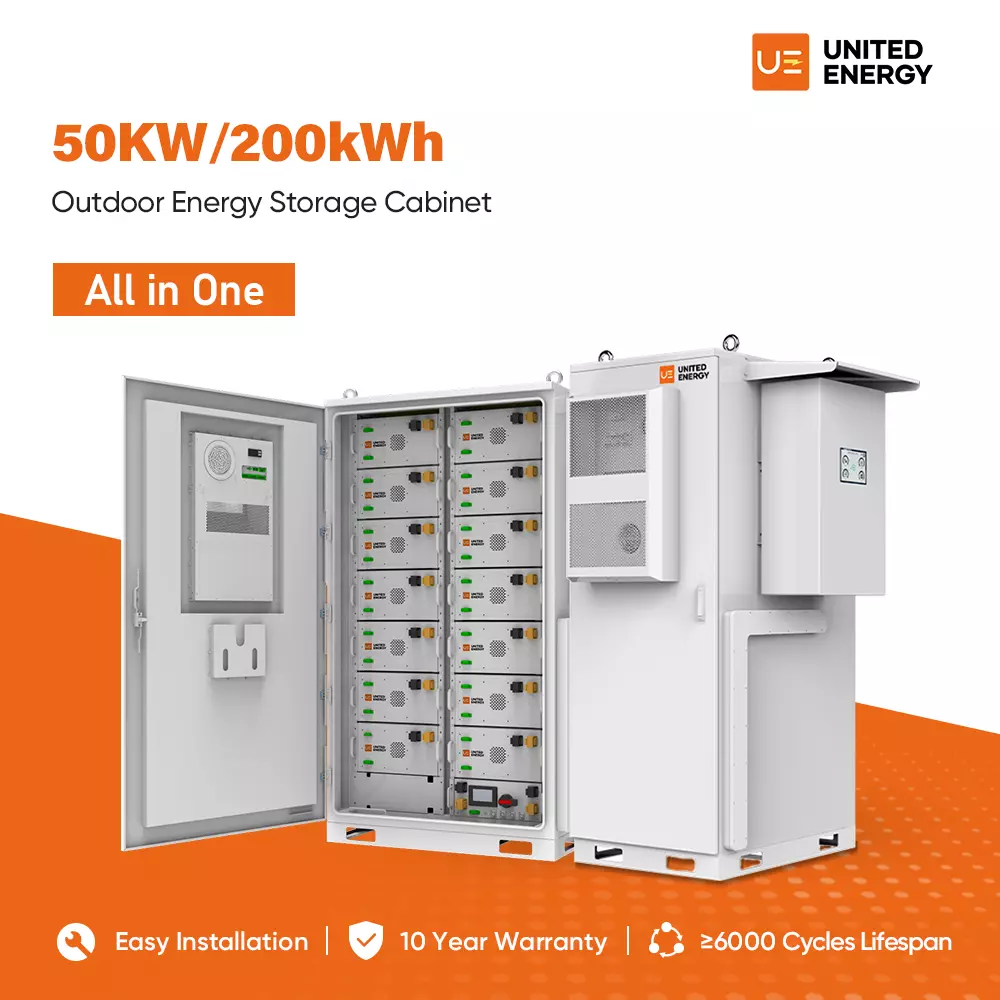

The UE 50kW All-in-One BESS Hybrid System is a compact yet powerful integrated solar storage solution developed for distributed commercial and industrial energy applications.
Unlike conventional systems that require separate inverter cabinets and battery racks, this integrated design consolidates solar conversion, battery storage, control systems, and safety components into a single outdoor enclosure.
This architecture offers:
- Simplified installation
- Reduced engineering complexity
- Lower system footprint
- Enhanced operational reliability
With storage expandable up to 225kWh, the system supports higher energy autonomy and greater demand management flexibility.
It is particularly suitable for commercial rooftop projects, logistics centers, agricultural facilities, island microgrids, and regions with unstable grid infrastructure.
Technical Specifications
Electrical Parameters
| Item | Specification |
|---|---|
| Rated Output Power | 50kW |
| Battery Capacity Range | 51–225kWh |
| Battery Chemistry | LFP (LiFePO4) |
| Output Type | Three-phase |
| Inverter Type | Hybrid with MPPT |
| System Expansion | Parallel supported |
Operational Capabilities
| Feature | Availability |
|---|---|
| Grid-Tied Operation | Yes |
| Off-Grid Operation | Yes |
| Hybrid Mode | Yes |
| Backup Power | Yes |
| Peak Shaving | Yes |
| Energy Arbitrage | Yes |
Installation & Protection
| Item | Specification |
|---|---|
| Installation Type | Outdoor integrated cabinet |
| Cooling Method | Intelligent air cooling |
| Fire Protection | Integrated suppression system |
| Communication | RS485 / Ethernet |
| Monitoring | Cloud-based EMS platform |
🎯 Typical Applications
- Commercial rooftop solar + storage
- Industrial demand charge reduction
- Cold storage and logistics facilities
- Agricultural energy systems
- Island or remote microgrids
- EV charging with storage support
- SME backup power systems
⚡ Stable 50kW Three-Phase Output
- Designed for commercial-grade loads
- Reliable continuous power supply
- Seamless grid and backup transition
🔋 Scalable Energy Storage up to 225kWh
Modular battery expansion allows flexible configuration:
- Entry configuration: 51kWh
- Mid-level storage: 100–150kWh
- High-capacity solution: 200–225kWh
Optimized for peak shaving, load shifting, and increased energy autonomy.
🔄 Intelligent Multi-Mode Operation
Supports:
- Grid-connected mode
- Off-grid mode
- Hybrid PV + storage mode
- Backup supply mode
- Time-of-use optimization
- Demand charge management
Automatically adjusts operating strategy via EMS.
🌡️ Advanced Thermal & Safety Protection
- Intelligent air-cooling system
- Continuous temperature monitoring
- Integrated fire detection and suppression
- Outdoor industrial-grade enclosure
Designed for reliable operation in demanding environments.
🌐 Smart Energy Management System
- Real-time performance monitoring
- Remote diagnostics & control
- Load dispatch optimization
- PV generation analytics
- Cloud-based data platform
Improves operational efficiency and reduces energy cost.
