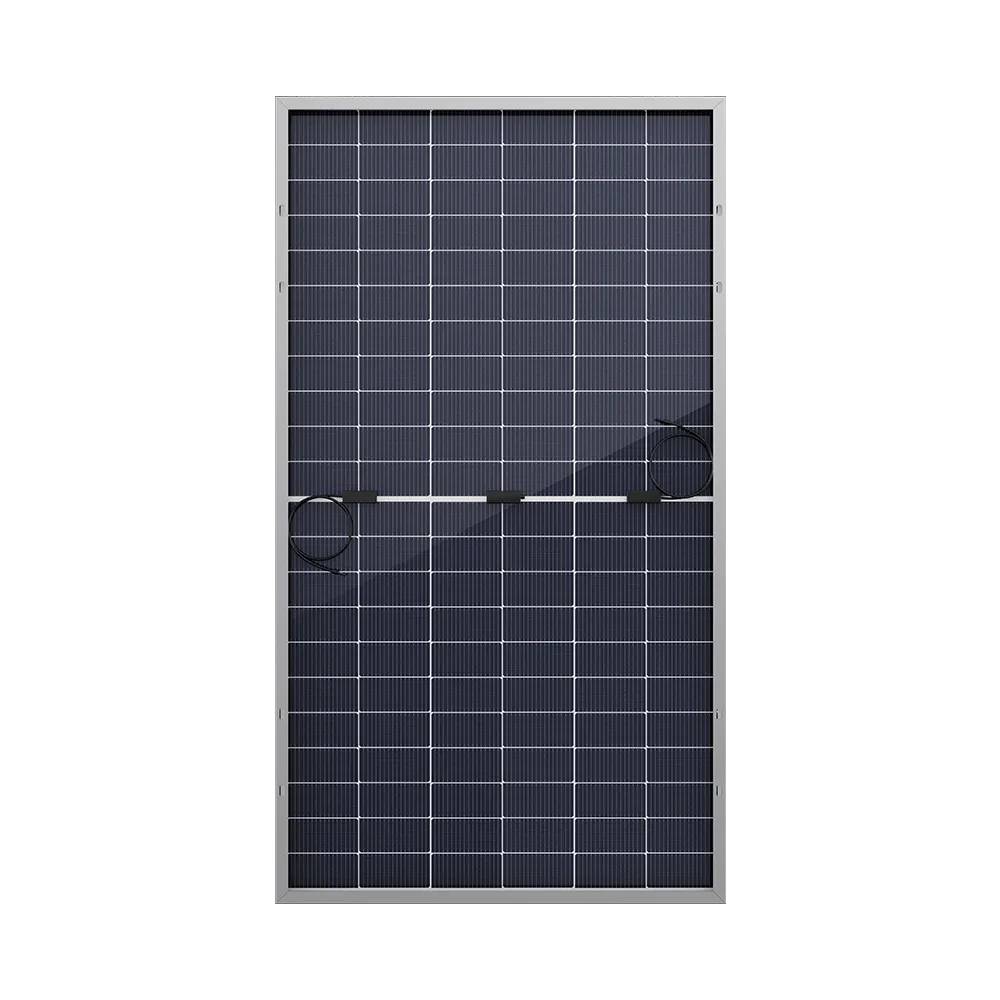

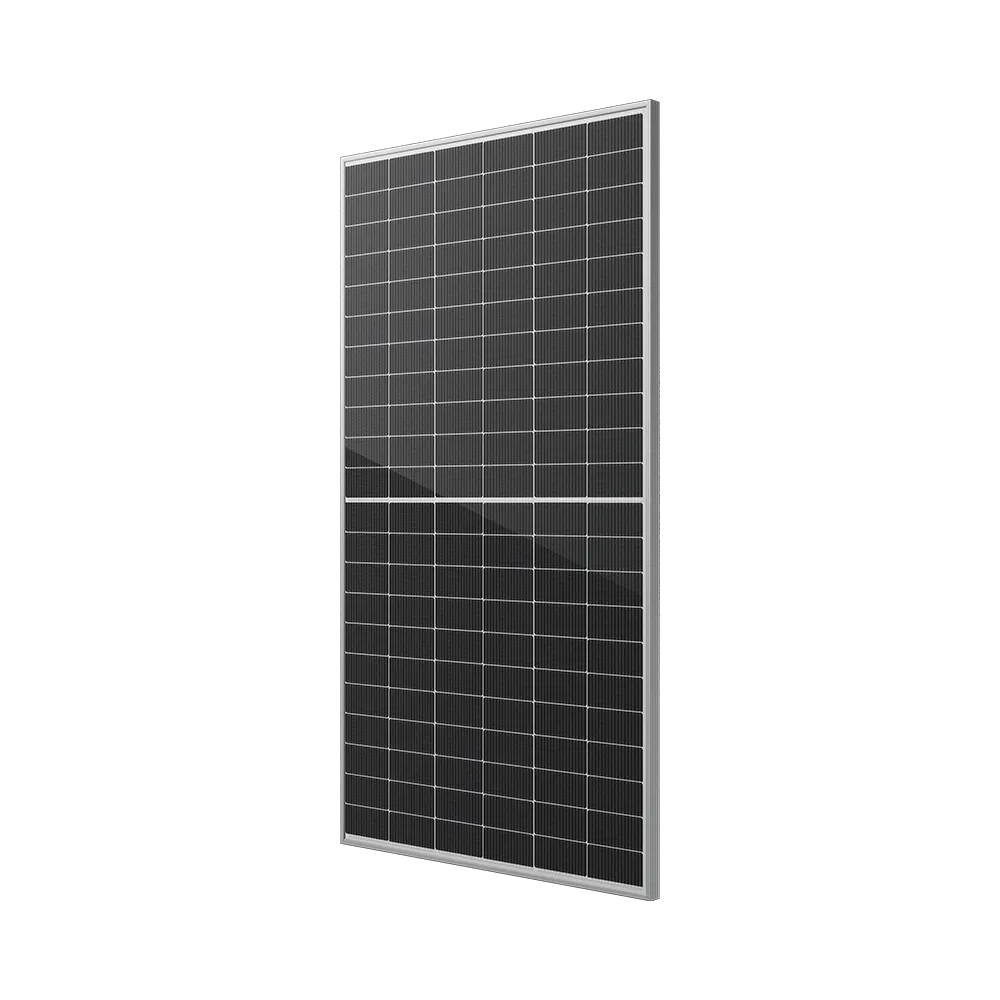

The TOPcon 675-700W Bifacial Solar Module is engineered to provide maximum energy efficiency, delivering up to 30% more power through its advanced bifacial design. Using N-type TOPCon technology, these modules offer exceptional reliability and performance, even in the most demanding conditions.
Whether you're installing for a commercial project or a residential setup, these modules ensure excellent energy yield with minimal degradation over time. The innovative design reduces the risk of micro-cracks, increases resistance to PID (Potential Induced Degradation), and is built to perform in high-humidity, salty, and high-temperature environments.
With a 30-year power warranty and industry-leading efficiency, the TOPcon solar module is a future-proof solution for sustainable energy production.
| Feature | Specification |
|---|---|
| Module Type | N-type TOPCon Bifacial Dual Glass Solar Module |
| Power Output | 675W - 700W |
| Module Efficiency | Up to 22.5% |
| Maximum System Voltage | 1500V DC (IEC) |
| Temperature Coefficient | -0.30%/°C |
| Operating Temperature | -40°C to +85°C |
| Nominal Operating Temperature | 45 ±2°C |
| Front Glass | 2.0mm High Transmission, AR Coated Heat Strengthened |
| Back Glass | 2.0mm Heat Strengthened Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 rated with 3 Bypass Diodes |
| Mechanical Load Test | 5400 Pa positive load, 2400 Pa negative load |
| Certifications | IEC 61215, IEC 61730, UL 61730, ISO9001, ISO14001 |
| Warranty | 12-year material warranty, 30-year power output warranty |
