Product Description

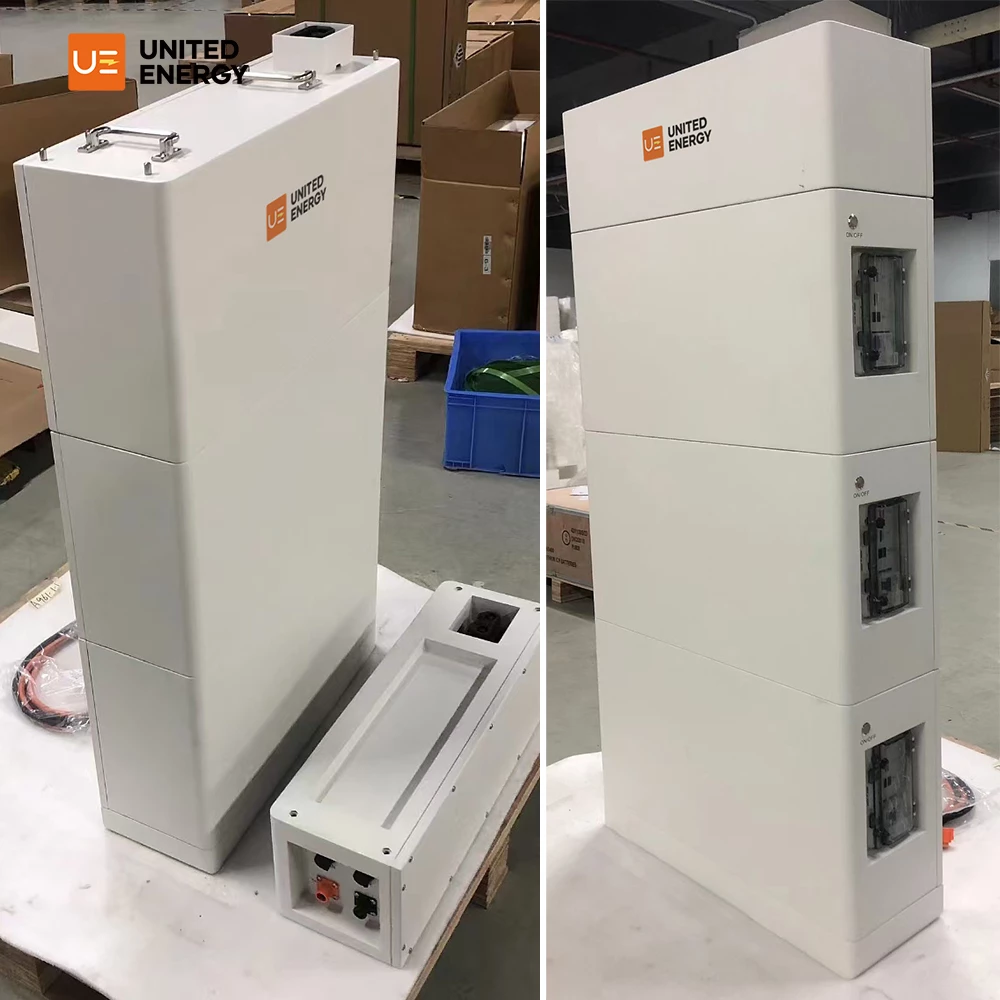

The Easybat S1-LV series brings a new level of flexibility and reliability to 48V residential energy storage systems. Designed for seamless stacking without cables, each battery integrates its own BMS to manage safety, performance, and smart power flow.
The system supports parallel operation, allowing connection with most hybrid inverters for off-grid or self-consumption setups. Whether you need a single 10.24kWh unit or expand to 20.48kWh, it delivers 6000+ cycles with 80% depth of discharge at 0.5C.
Equipped with Bluetooth/WLAN connectivity and an easy-to-use online platform, you can monitor performance and system status from anywhere. The IP65-rated enclosure ensures reliable operation even in humid or dusty environments.
From villas to solar-powered homes and smart energy projects, Easybat S1-LV delivers scalable, safe, and intelligent storage.
Technical Specifications
| Model | S1-LV-10.24 | S1-LV-15.36 | S1-LV-20.48 |
| Rated Voltage | 51.2V | ||
| Energy Capacity (kWh) | 10.24 | 15.36 | 20.48 |
| Max Charging Current | 100A | ||
| Max Discharging Current | 100A | ||
| Cycle Life | ≥6000 (at 0.5C, 80% DoD) | ||
| Charge Voltage | 56V (Cut-off: 58.4V) | ||
| Discharge Cut-off Voltage | 43.2V | ||
| Communication | CAN / RS485 / RS232 | ||
| Monitoring Options | Bluetooth / WLAN (Online platform) | ||
| IP Rating | IP65 | ||
| Installation Type | Stackable – No cabling between units | ||
| Working Temperature | Charge: 050°C / Discharge: -2050°C | ||
| Storage Temp. / Humidity | -20~50°C @ 60±25% RH | ||
| Dimensions (W × D × H) | 640 × 205 × 897~1581 mm | ||
| Weight (Net / Gross) | ~110–226 kg depending on model | ||
| Certifications | CE, UL1973, UN38.3, IEC62619, MSDS | ||
