Product Detailed Description:
The TG-SS-HV Series redefines high-voltage energy storage with:

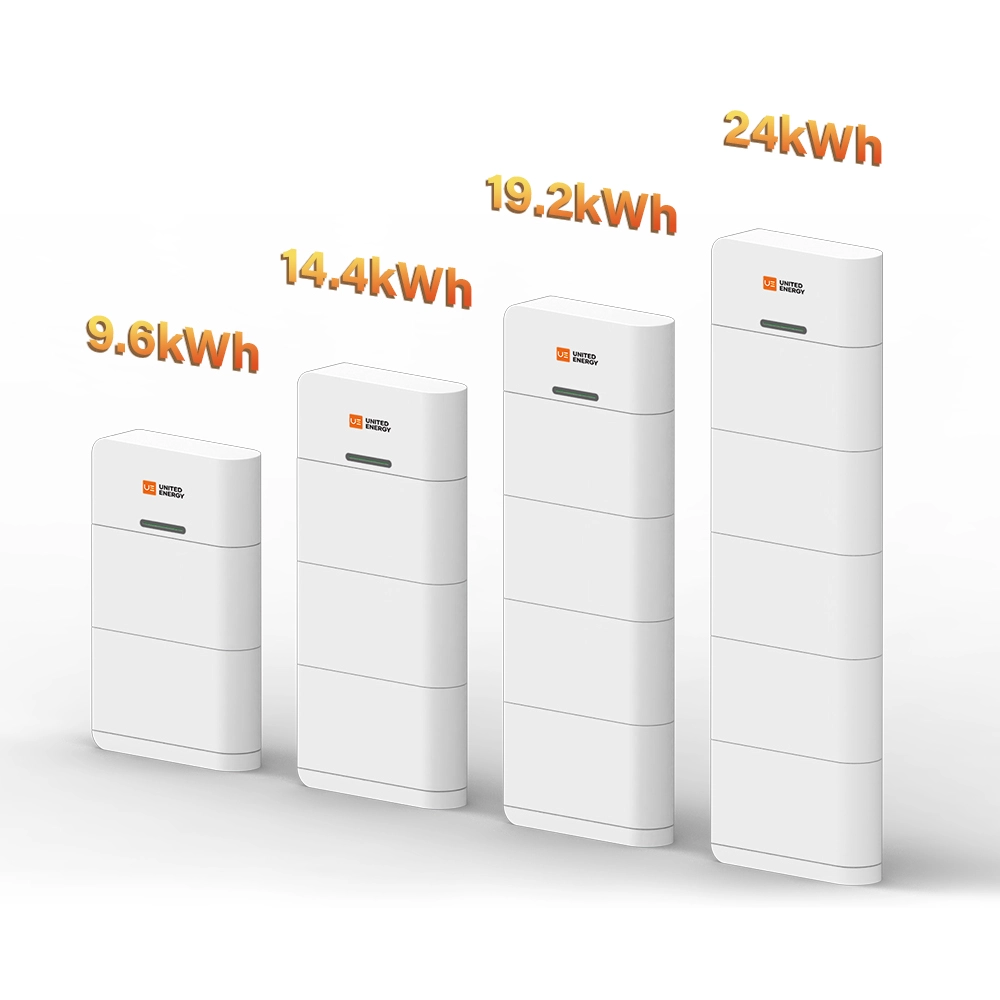

- Modular Scalability: Add 4.8kWh units (up to 5 stacks) for 24kWh total capacity.
- High-Efficiency LiFePO4: 480V nominal voltage with 50A charge/discharge current.
- Robust Build: IP65-rated metal enclosure for dust/water resistance (-20°C to 55°C operation).
- Smart Monitoring: Optional Bluetooth/WLAN for real-time energy tracking.
- Certified Safety: Complies with UN38.3, IEC62619, UL1973, CE.
Perfect for:
- Residential solar storage
- Small commercial backup
- Off-grid/microgrid systems
Technical Specifications Table:
| Category | Specifications |
|---|---|
| Nominal Voltage | 480VDC |
| Capacity | 50Ah (24kWh max) |
| Cycle Life | 6,000+ cycles @ 80% DoD |
| Dimensions (Single Unit) | 680×185×2205mm (14kg) |
| Operating Temperature | Charge: 0°C–55°C / Discharge: -20°C–55°C |
| Communication | Conbus/RS485/RS232 + Bluetooth/WLAN (opt.) |
| Certifications | CE, UN38.3, IEC62619, UL1973 |
