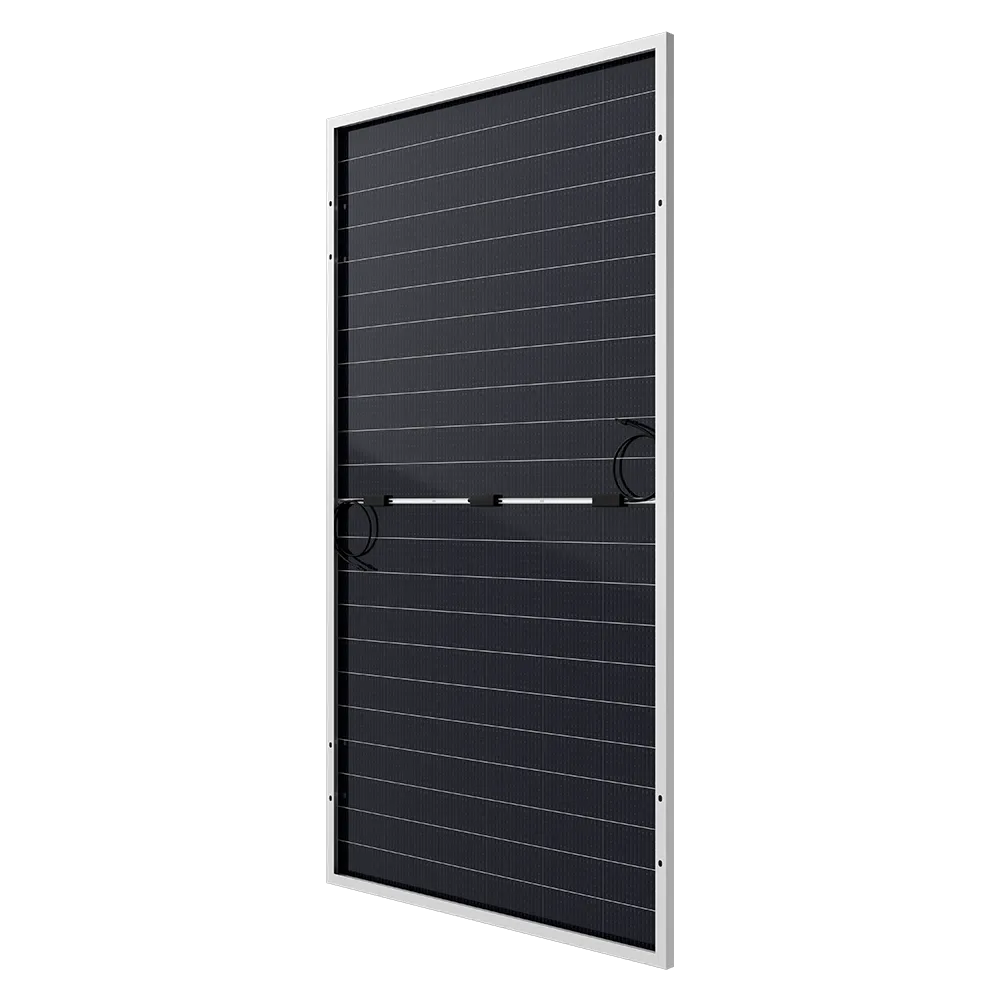

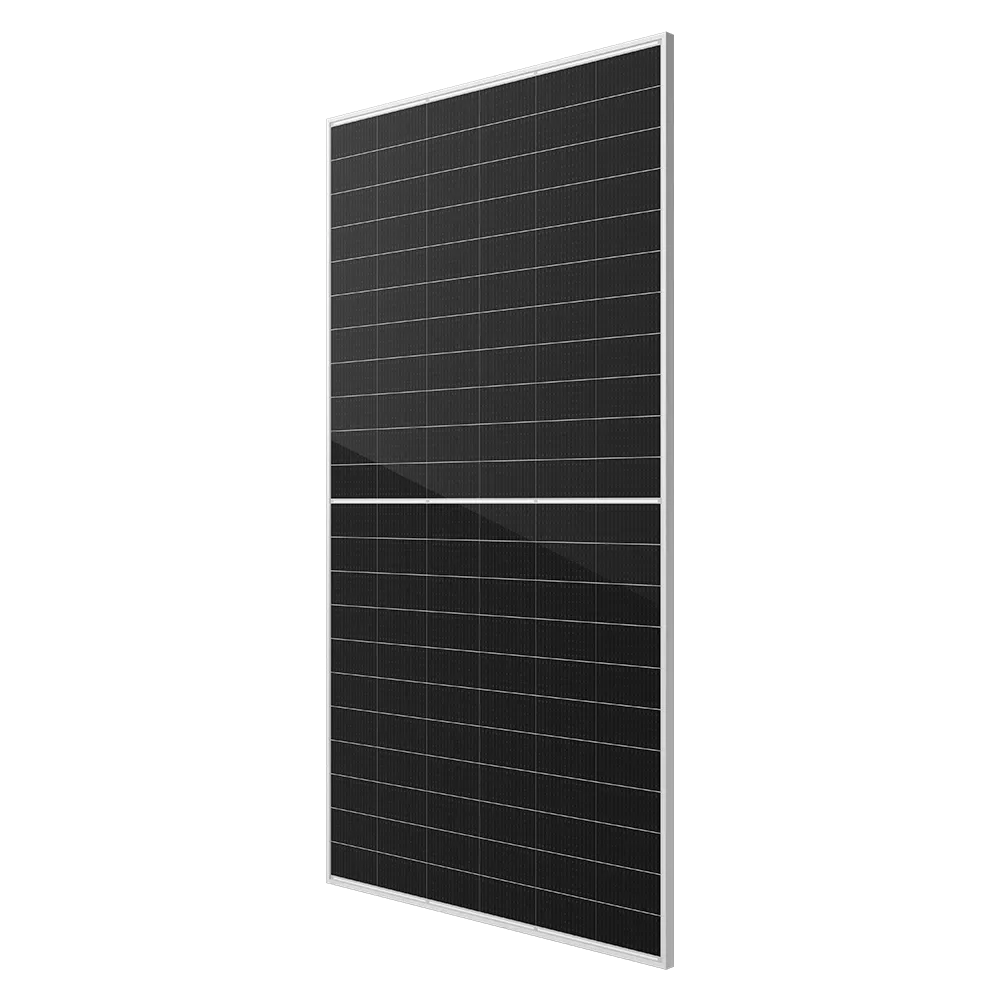

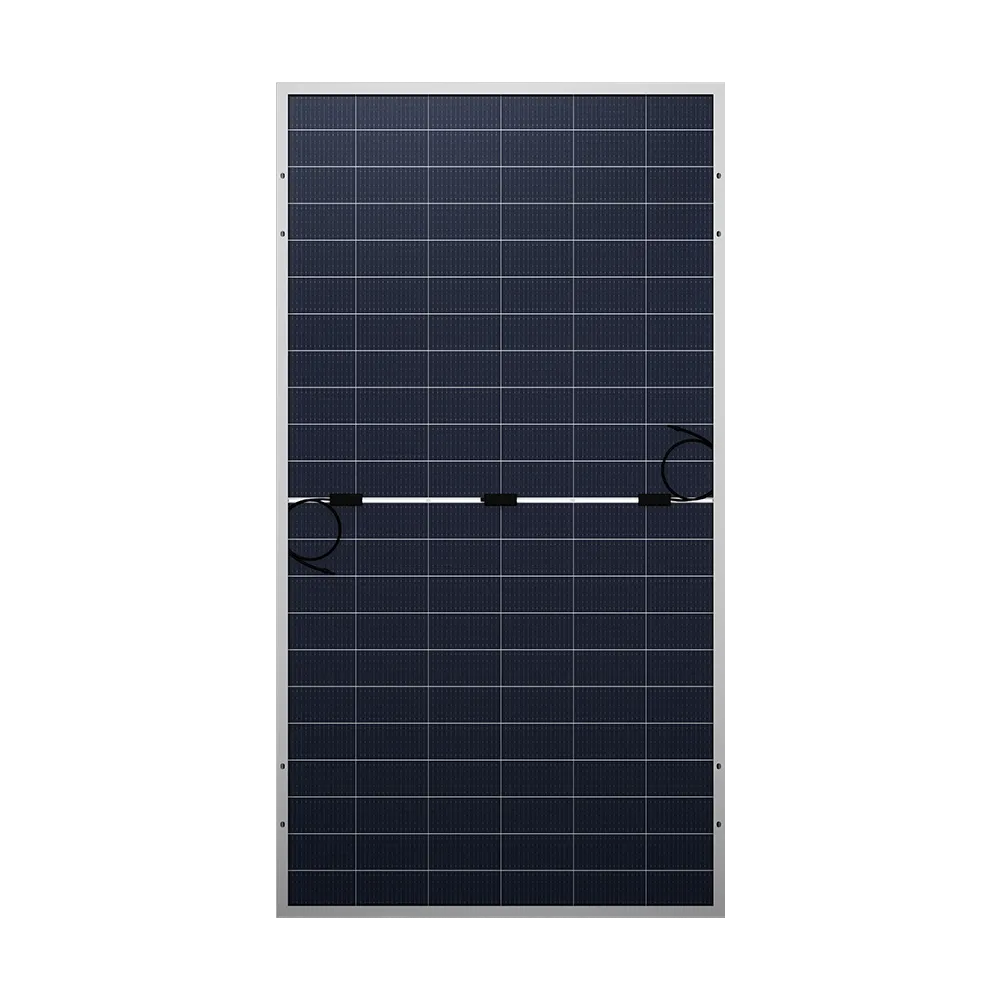

The HJT 715-740W Bifacial Solar Module integrates the latest Heterojunction (HJT) technology to provide industry-leading efficiency and power generation. This N-type dual-glass module utilizes both sides of the panel to maximize energy production, increasing yield by capturing reflected sunlight from the rear.
With a maximum efficiency of 23.80%, this solar module performs exceptionally well under a variety of conditions, including high temperatures, thanks to its low temperature coefficient. It features SMBB design with Half-Cut Technology, minimizing resistive losses and boosting overall energy output.
Designed with durability in mind, this panel utilizes PIB-based sealants and high-quality materials for extended lifespan and reliable performance, even in harsh environments. Whether you're working on residential or commercial solar installations, the HJT 715-740W Bifacial Solar Module offers unparalleled energy efficiency and long-term reliability.
| Feature | Specification |
|---|---|
| Module Type | N-type HJT Bifacial Dual Glass Solar Module |
| Power Output | 715W - 740W |
| Maximum Efficiency | Up to 23.80% |
| Maximum System Voltage | 1500V DC (IEC) |
| Temperature Coefficient | -0.26%/°C |
| Operating Temperature | -40°C to +85°C |
| Nominal Operating Temperature | 44±2°C |
| Front Glass | 2.0mm AR-coated, heat-strengthened glass |
| Back Glass | 2.0mm heat-strengthened glass |
| Frame | Anodized aluminum alloy |
| Junction Box | IP68 rated with 3 Bypass Diodes |
| Mechanical Load Test | 2400Pa positive load, 5400Pa negative load |
| Certifications | IEC 61215, IEC 61730, UL 61730, ISO9001, ISO14001 |
| Warranty | 15-year material warranty, 30-year power output warranty |
