Product Detailed Description:
The TH-R-HV Series is a high-voltage rack-mount battery designed for demanding commercial and industrial environments:
- Modular Scalability: Combine multiple 5.12kWh modules to create systems from 20.48kWh to 51.2kWh.

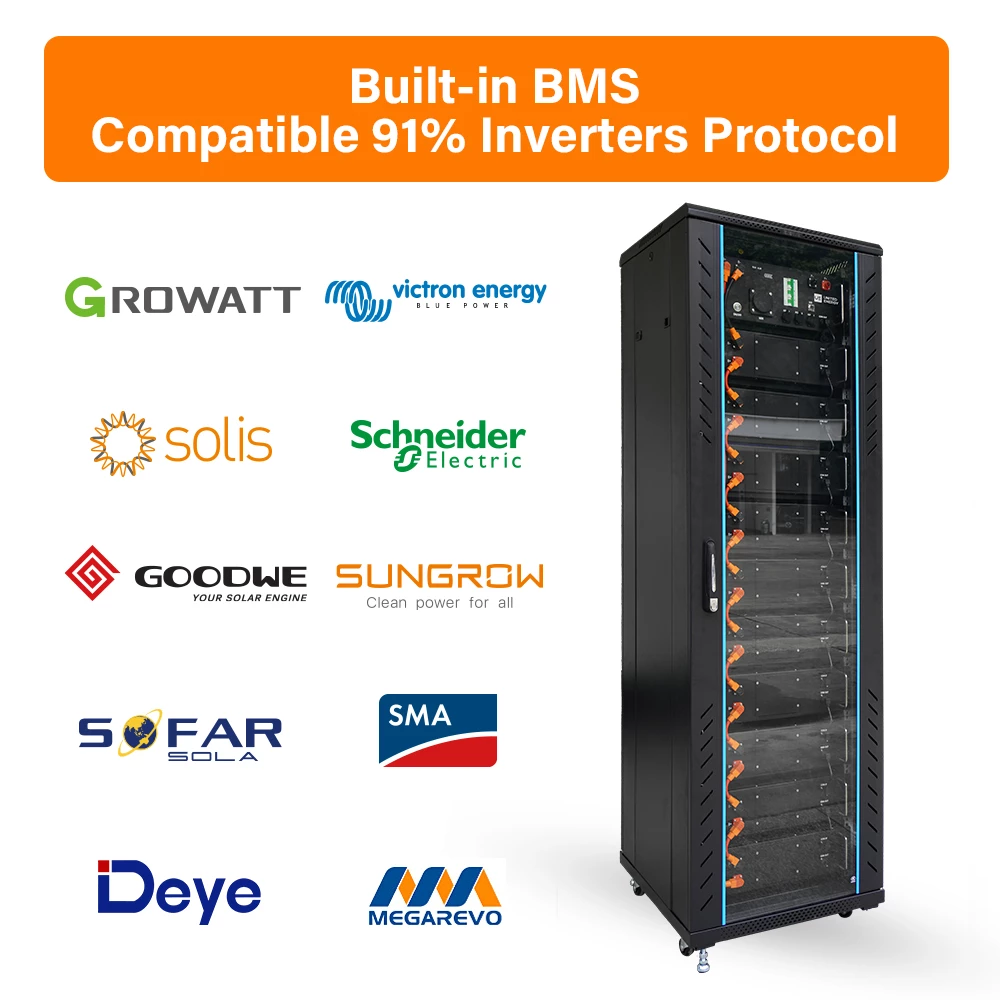

- Intelligent BMS: Auto-balancing, overcurrent/voltage/temperature protection, and Deye inverter compatibility.
- Eco-Friendly: Non-toxic LiFePO4 chemistry with 6-month shelf life (no memory effect).
- Robust Build: IP20 enclosure and rack-mount design (538mm width) for space efficiency.
- High Efficiency: 100A max discharge current with low self-discharge.
Perfect for:
- Data centers & telecom backup
- Solar/wind energy storage
- Microgrids & industrial UPS
Technical Specifications Table:
| Model | TH-R-HV20 | TH-R-HV25 | TH-R-HV30 | TH-R-HV40 | TH-R-HV51 |
| System Voltage | 204.8V | 256V | 307.2V | 409.6V | 512V |
| Capacity | 100Ah | 100Ah | 100Ah | 100Ah | 100Ah |
| Energy | 20.48kWh | 25.6kWh | 30.72kWh | 40.96kWh | 51.2kWh |
| Dimensions (mm) | 538×492×791 | 538×492×941 | 538×492×1091 | 538×492×1391 | 538×492×1691 |
| Weight (kg) | 195 | 240 | 285 | 375 | 465 |
| Cycle Life | 6,000+ cycles (70% capacity) | ||||
| Communication | CAN2.0, RS485, WiFi (optional) | ||||
