Product Detailed Description:
The OMS-200K280 BESS is engineered for mission-critical energy storage:
- Modular Design: 14 compact modules (483×245×792mm each) in a 1090×780×2190mm rack for space efficiency.
- High Efficiency: 200A max discharge current with 616V–795.2V operating range.

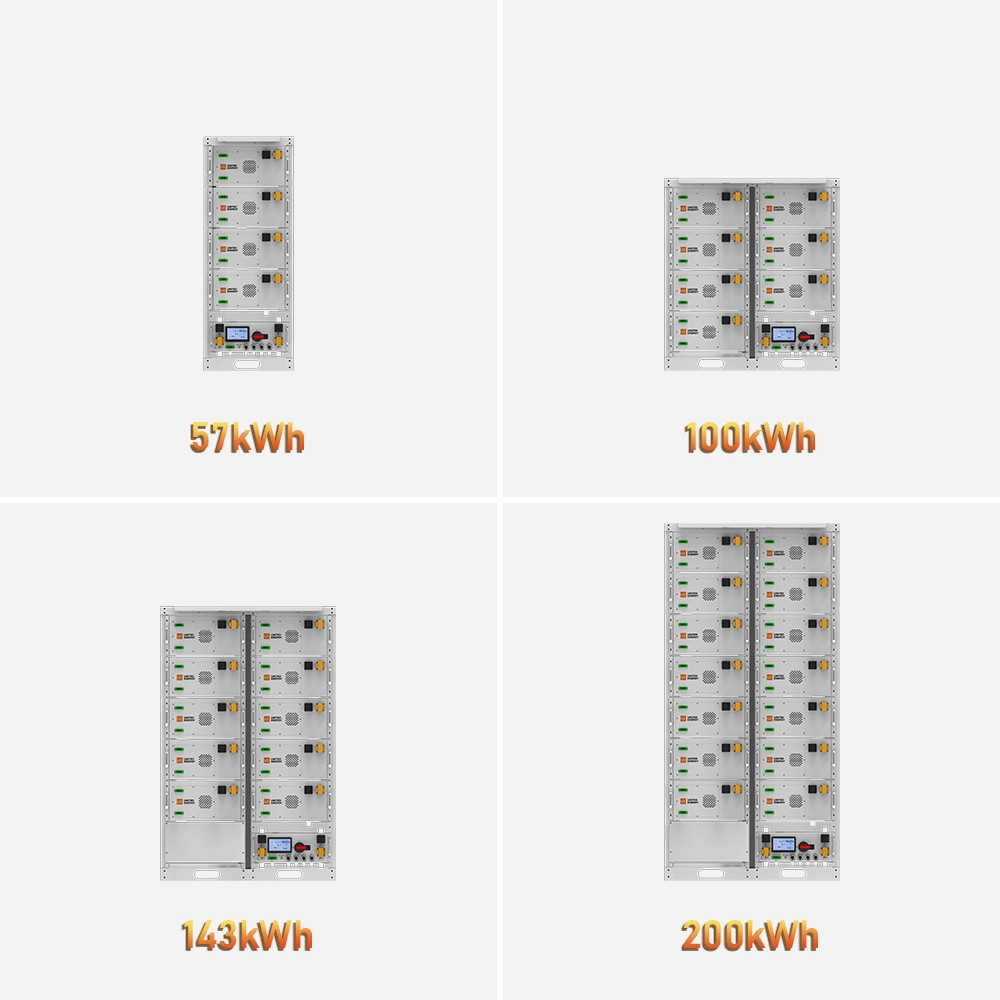

- Scalability: Supports 16 units in series for massive capacity expansion.
- Certified Reliability: Complies with UN38.3, MSDS, RoHS, and 15+ year design life.
- Industrial Use: Ideal for grid stabilization, solar/wind farms, and backup power.
Technical Specifications Table:
| Parameter | Specification |
|---|---|
| Nominal Voltage | 716.8V |
| Nominal Capacity | 280Ah (200.7kWh per rack) |
| Discharge Cut-Off Voltage | 616V |
| Max Current | 200A (100A recommended) |
| Cycle Life | 6,000+ cycles @ 80% DoD |
| Dimensions (Rack) | 1090×780×2190mm (1804kg) |

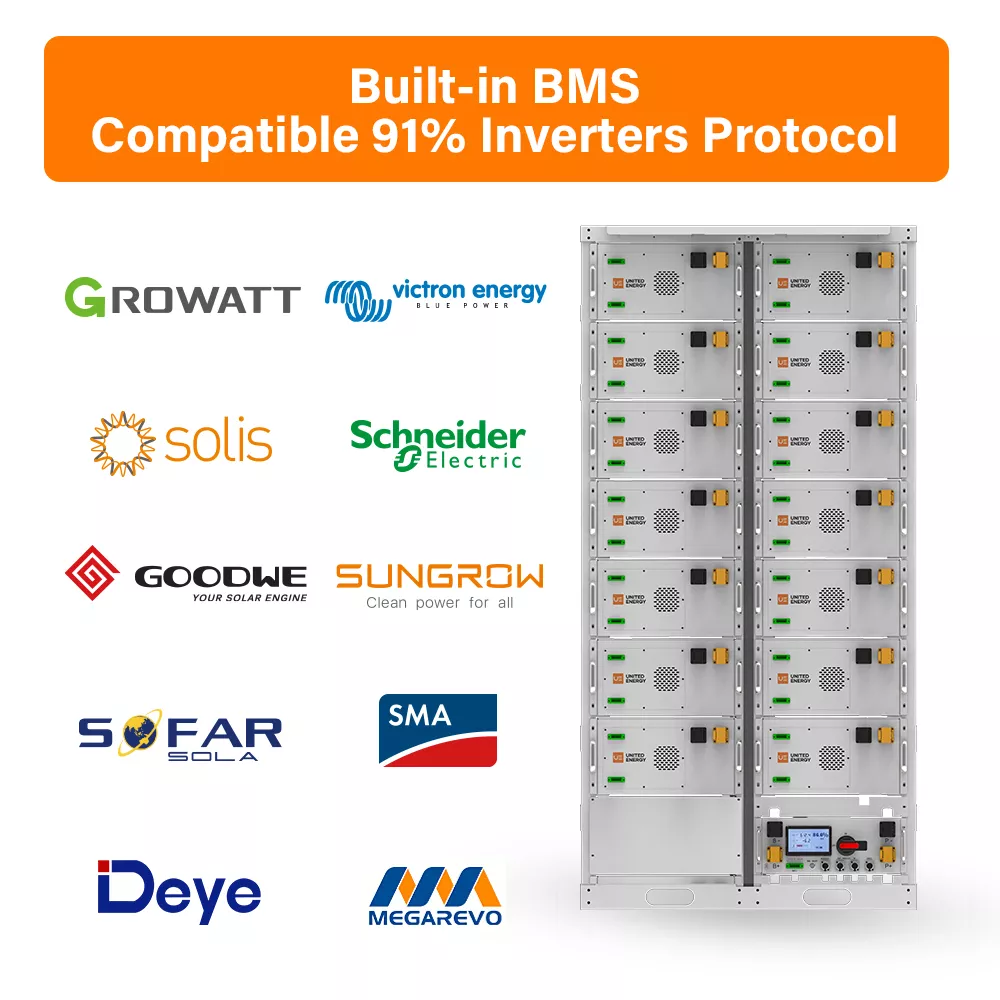

| Communication | RS485/RS232/CAN |
| Certifications | CE, IEC, UL, UN38.3, MSDS, RoHS |
