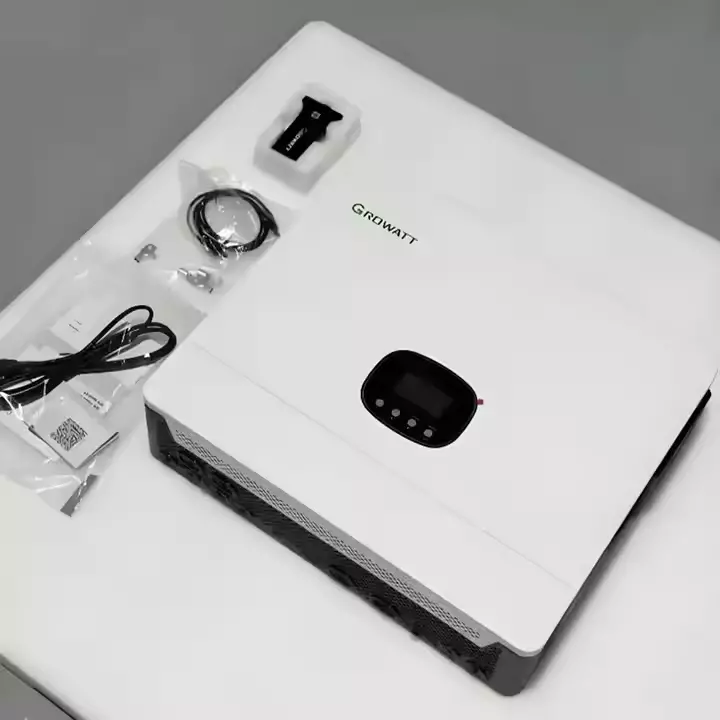

Growatt SPF 6000 ES Plus Products Description
The Growatt SPF 6000 ES Plus is a powerful hybrid inverter designed for off-grid and backup energy systems. It features a pure sine wave inverter, a solar charger with dual MPPTs, and parallel expandability, all in a compact and lightweight design.
It supports up to 8000W of PV input, 500VDC open circuit voltage, and allows solar priority or grid priority settings for flexible power management. This makes it suitable for regions with unstable grid supply or for systems prioritizing solar energy usage.
Thanks to its integrated AC transfer switch and dual AC input terminals, the SPF 6000 ES Plus ensures seamless switching between sources, including generators. It also comes with dust-proof filters for installations in tough environmental conditions.
Whether you're looking for a reliable home energy backup or planning a scalable solar installation for your business, the SPF 6000 ES Plus is a smart, efficient choice.
Growatt 5kW Solar Inverter Technical Highlights
| Category | Details |
|---|---|
| Model | SPF 6000 ES Plus |
| Rated Power | 6000VA / 6000W |
| Battery Voltage | 48VDC |
| Battery Type | Lithium / Lead-acid |
| Surge Power | 12000VA |
| Waveform | Pure Sine Wave |
| Max PV Array Power | 8000W |
| MPPT Voltage Range | 120VDC – 450VDC |
| PV Open Circuit Voltage | 500VDC |
| Max Solar Charge Current | 100A |
| Max AC Charge Current | 80A |
| AC Input Voltage | 230VAC |
| Selectable Voltage Range | 170–280VAC (PC) / 90–280VAC (Appliances) |
| Transfer Time | 10ms typical, 20ms max |
| Parallel Operation | Yes, up to 6 units |
| Dimensions (W/H/D) | 460 x 395 x 132 mm |
| Net Weight | 13.5 kg |
| Operating Temp. | 0°C to 55°C |
| Storage Temp. | -15°C to 60°C |
| Humidity | 5%–95% RH (non-condensing) |
| Protection Degree | IP20 |
| Altitude Limit | <2000m |
