Deye All in One Lithium battery Product Overview
The GE-F60 Hybrid Energy Storage System is a cutting-edge solution designed to maximize energy efficiency for both residential and commercial applications. Featuring a 61.44kWh capacity with 55.29kWh of usable energy, this system is built with high-performance LiFePO4 batteries, ensuring long life and safety.

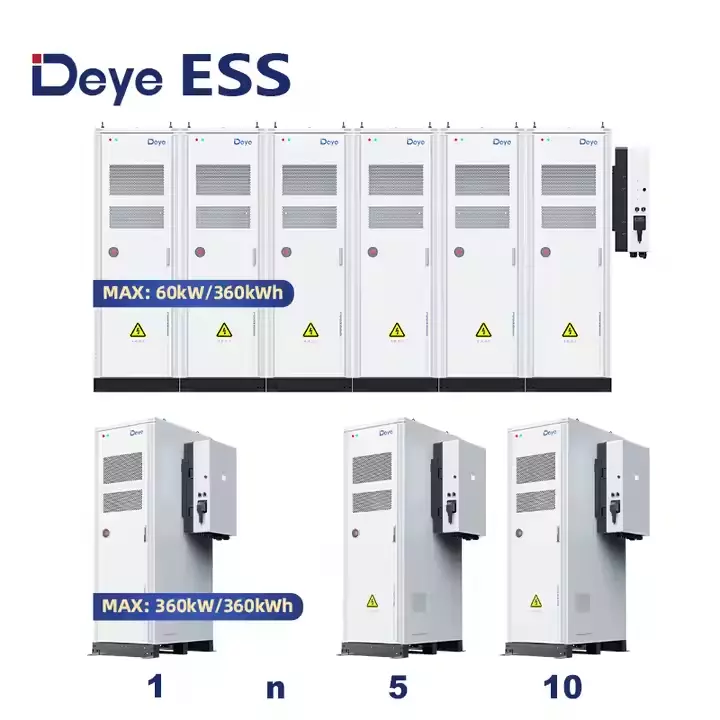

With integrated EMS (Energy Management System) and BMS (Battery Management System) technologies, the GE-F60 optimizes energy usage, maintains battery health, and supports black start and off-grid capabilities for complete energy independence. It also offers a modular design that can be expanded up to 360kWh, allowing for scalability.

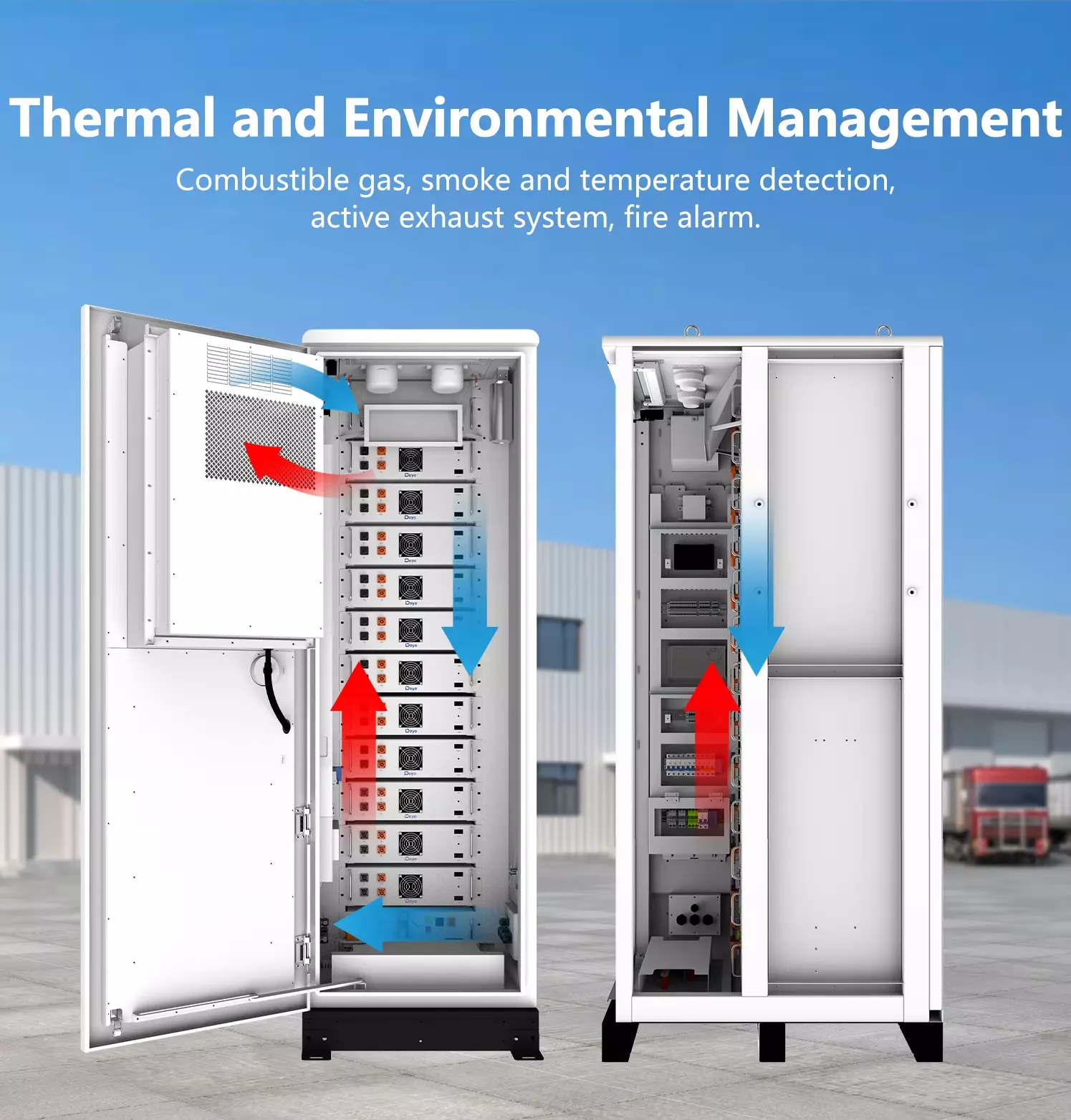

This system is equipped with advanced fire protection features, including an aerosol fire extinguishing solution, smoke, gas, and temperature detection, ensuring maximum safety in any environment. Its IP55 rating ensures it is highly durable and suitable for various installations.
The GE-F60 is certified to international standards (UN38.3, IEC62619, IEC61000), and offers reliable, intelligent, and secure energy storage with remote monitoring and real-time battery status indicators.
LiFePO4 Battery Key Specifications
| Parameter | Value |
|---|---|
| Cell Chemistry | LiFePO4 |
| System Energy | 61.44 kWh |
| Usable Energy | 55.29 kWh |
| Nominal Voltage | 614.4V |
| Operating Voltage | 500V ~ 750V |
| Charge/Discharge Current | Recommend 50A, Nominal 100A, Peak 125A |
| Working Temperature (Charge) | 0°C ~ 55°C |
| Working Temperature (Discharge) | -20°C ~ 55°C |
| Cycle Life | ≥6000 cycles (EOL70%) |
| IP Rating | IP55 |
| Communication Ports | CAN2.0/RS485 |

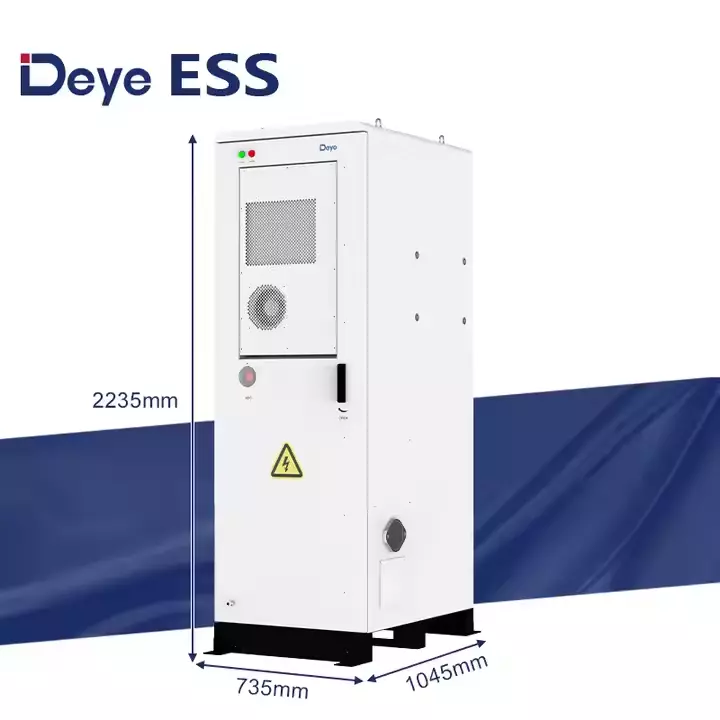

| Dimensions (W × D × H) | 735 × 1045 × 2235 mm |
| Weight | 1010 kg |
| Warranty | 10 years |
| Certifications | UN38.3, IEC62619, IEC61000, IEC62040 |
Features of Deye ESS
