18-25kw Deye On Grid Inverter Products Description
The Deye SUN-18~25K-G05 three-phase inverter series offers a powerful and efficient solution for commercial and industrial grid-tied solar systems. With a max. efficiency of 98.5% and MPPT efficiency >99%, it ensures optimal energy harvesting across a wide input voltage range (200V-1000V).
Designed for reliability and ease of integration, it features dual MPPTs, multiple communication options, and full system protection including arc fault detection (AFCI), ground fault monitoring, insulation resistance, and more.
Its IP65-rated enclosure and intelligent air cooling system make it suitable for various installation environments. The inverter supports zero-export configurations and is certified under global grid codes, ensuring safe, compliant operation in diverse markets.
What is the function of a on grid inverter?
Simply put, one of the most important functions of a grid tied inverter is to allow users to draw power from the public grid when there is a power shortage, and sell excess power to the grid when there is sufficient power.
Deye 18-25kw on grid inverter Technical Highlights

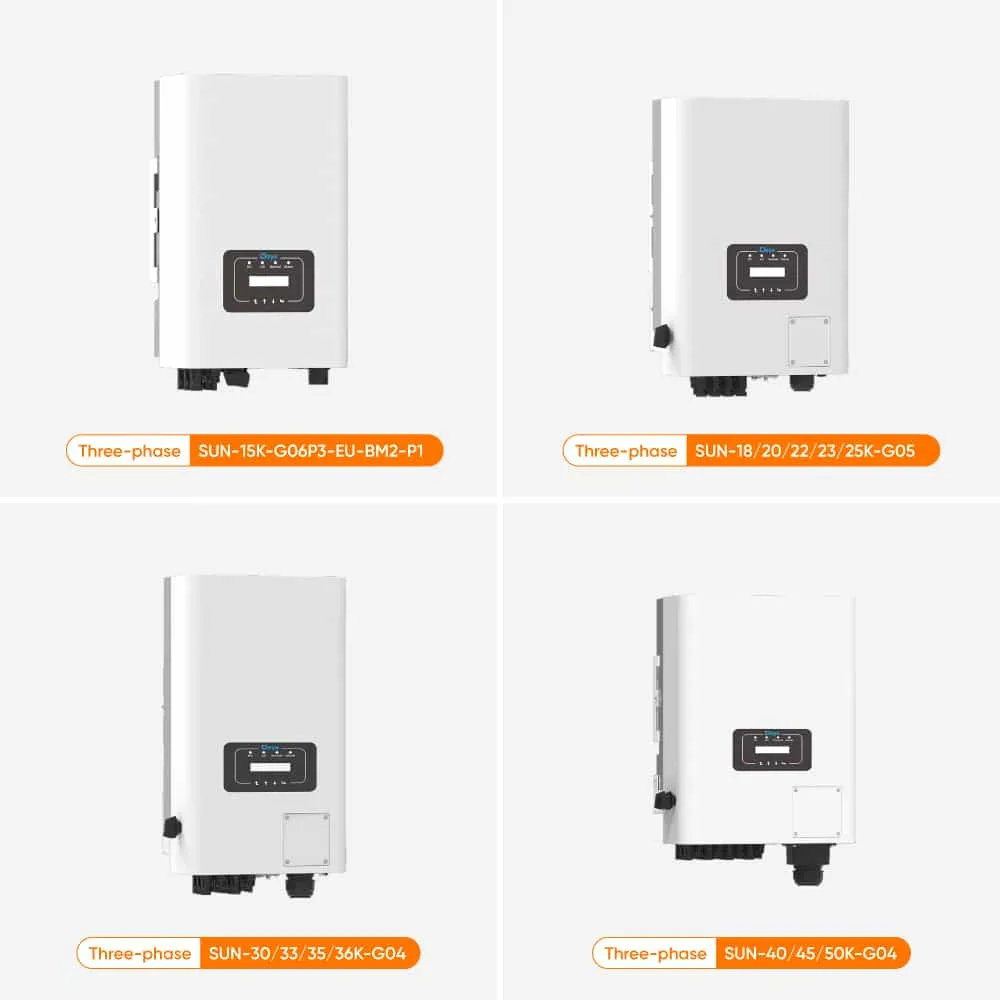

| Model Range | SUN-18K ~ SUN-25K-G05 |
|---|---|
| Max. PV Input Power | 26kW ~ 39kW |
| MPPT Trackers | 2 (2 strings per MPPT) |
| MPPT Voltage Range | 200V ~ 1000V |
| Rated Output Power | 18kW / 20kW / 22kW / 23kW / 25kW |
| Max. Efficiency | 98.5% |
| Communication Options | RS485, RS232, WiFi, GPRS, LAN, 4G |
| Protection Rating | IP65 |
| Dimensions | 362 × 527 × 220 mm |
| Weight | 20 kg |
| Cooling Method | Intelligent air cooling |
| Certifications | CEI 0-21, EN50549, G99, VDE, IEC62109 |
