Deye GE-F120-2H2 Product Description
The Deye GE-F120-2H2 is a high-performance hybrid energy storage system tailored for commercial and industrial sectors seeking grid-independence, peak shaving, and backup power.
With a nominal output of 50kW and 120kWh lithium iron phosphate battery, the system supports both grid-connected and off-grid modes. Thanks to four MPPTs, a wide PV input range (150–850VDC), and up to 65kW solar input, it ensures flexible PV system design and high energy harvest.

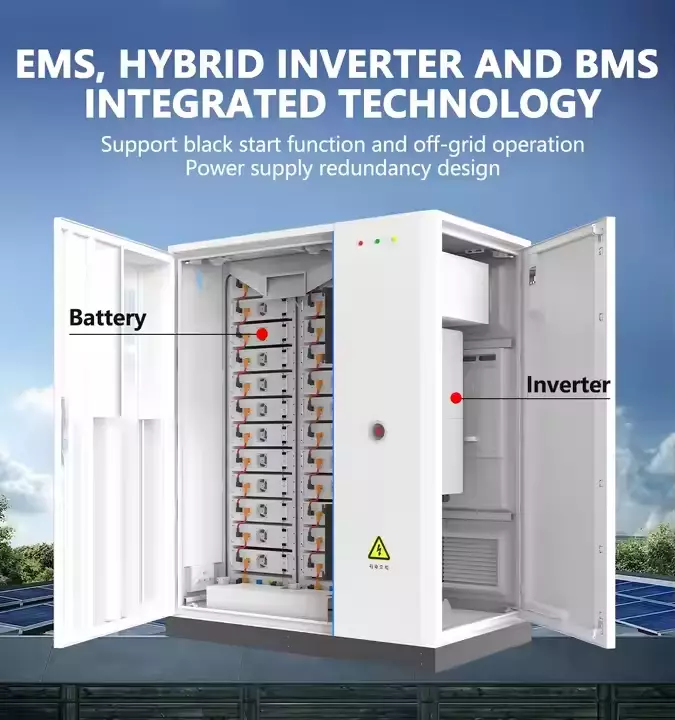

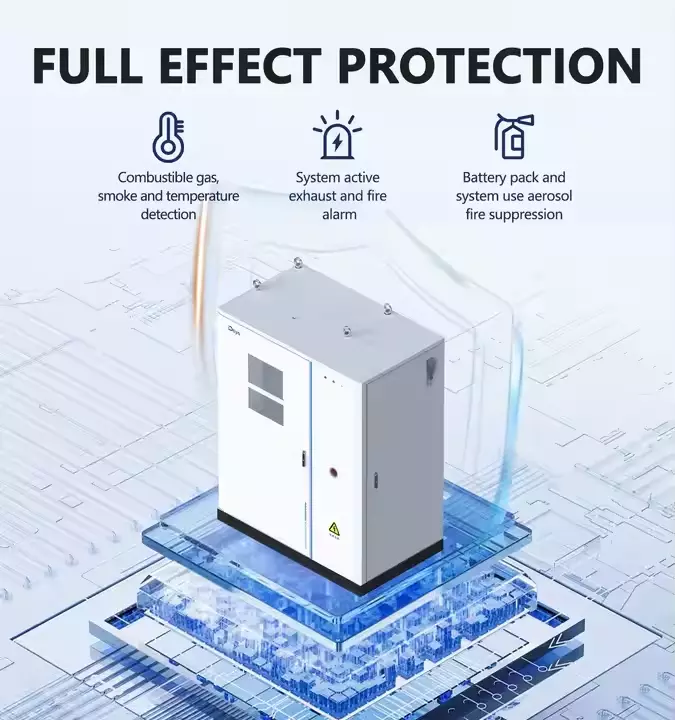

All system elements — PCS, inverter, EMS, battery, BMS — are housed in a single cabinet, greatly simplifying installation and reducing space. Equipped with advanced fire safety (temperature/gas/smoke sensors + aerosol suppression), it meets the highest industrial safety standards.
Designed for daily cycling, fast response, and remote monitoring, the GE-F120 is a future-ready solution for industrial buildings, commercial complexes, energy service companies (ESCOs), and microgrids.
Technical Specifications
| Model | GE-F120-2H2 |
|---|---|
| Output Power | 50kW nominal, 75kW peak (10s) |
| Storage Capacity | 120kWh (expandable to 1200kWh) |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Cycle Life | ≥6000 cycles @ 0.5C / 70%EOL |
| Battery Voltage Range | 500–700V |
| AC Output Voltage | 3L/N/PE 220/380V, 230/400V |
| Frequency | 50/60Hz |
| PV Input Power | Max 65kW |
| MPPT Voltage Range | 150–850VDC |
| MPPT Number | 4 |
| Efficiency (Inverter) | 97.6% |
| Efficiency (MPPT) | 99.9% |
| Enclosure Protection | IP55 |
| Cooling | Active + natural convection |
| Safety Features | Smoke/gas/temp detection + fire suppression |
| Communication | RS485 / CAN / WiFi / Ethernet |
| Dimensions (mm) | 1764 × 1050 × 2250 |
| Weight | ~1980 kg |
| Installation | Floor-mounted, indoor or outdoor |
| Certifications | VDE, IEC61727/62116, UN38.3, IEC62619, CE, etc. |
| Warranty | 10 Years |
