Product Description
The UE750H-66HBD is United Energy’s highest-output solar module to date, utilizing advanced heterojunction technology (HJT) and symmetrical bifacial construction to push system performance to new heights. With a frontside rated output of 730–750W and up to 30% bifacial gain, it offers unmatched energy generation potential per unit.
Built for long-term reliability, it uses high-purity N-type silicon, robust dual-glass design, and PIB sealing to resist moisture, salt mist, ammonia, and UV degradation. Weighing 37.9kg, it's suitable for professional installations using trackers or reinforced racking systems.
Perfect for solar developers, EPCs, and utility providers seeking high-efficiency power density on large land areas.
Technical Specifications
| Specification | UE750H-66HBD |
|---|---|
| Power Output (Pmax) | 730W ~ 750W |
| Max Efficiency | 24.10% |
| Cell Technology | N-Type HJT Half-Cut (Rectangle) |
| Number of Cells | 132 (6×22) |

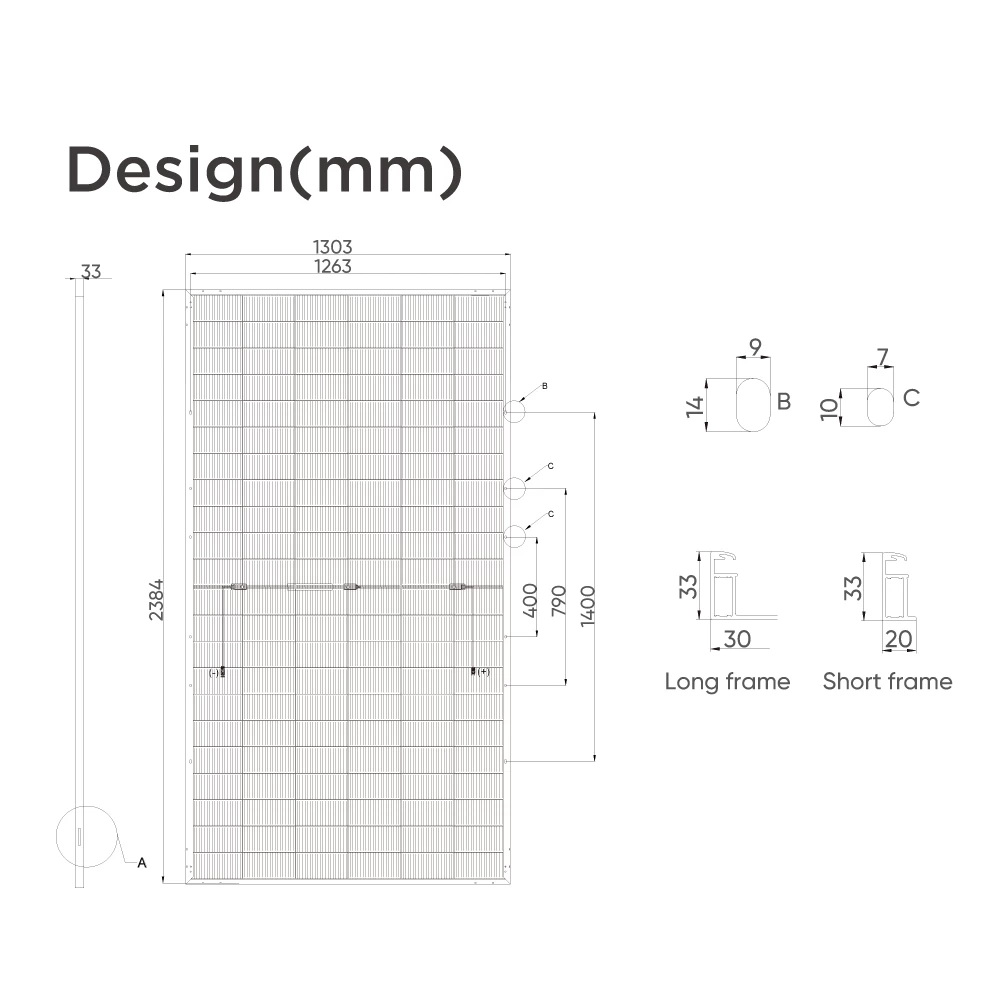

| Module Dimensions | 2384 × 1303 × 33 mm |
| Weight | 37.9 kg |
| Bifaciality | Up to 90% |
| Front / Rear Load | 5400Pa / 2400Pa |
| Glass | Dual Glass (2.0mm / 1.6mm) |
| Frame | Black Anodized Aluminum |
| Junction Box | IP68, 3 Bypass Diodes |
| Connector | MC4 Original / Compatible |
| Cable | 4mm², 300mm (customizable) |
| Max System Voltage | 1500V DC |
| Power Tolerance | 0 ~ +5W |
| Operating Temp. Range | -40°C ~ +85°C |
| Temp. Coeff (Pmax) | Approx. -0.26%/°C |
| Certifications | IEC61215 / IEC61730 / UL61730 / ISO9001 / ISO14001 / ISO45001 / IEC62941 |

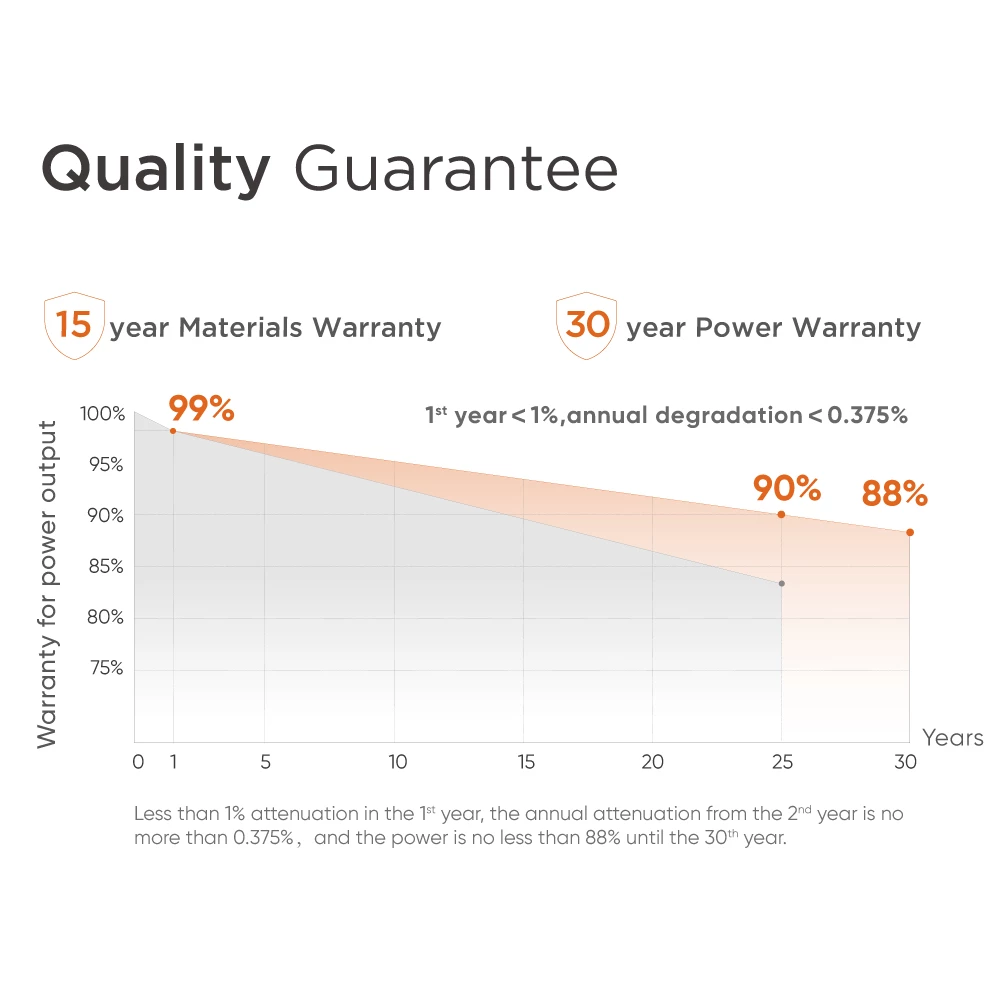

| Warranty | 15-Year Workmanship / 30-Year Linear Power Warranty |
