Product Description
The UE600 T-72HBD is a premium 600W bifacial solar module featuring N-type TOPCon cells and a dual-glass structure, delivering high energy yield and long-term reliability. Built with 72×2 half-cut 182mm cells, this panel achieves 23.24% efficiency under STC and can capture an additional 5–25% from the rear side thanks to its bifacial architecture.
With anti-PID technology, low temperature sensitivity, and certified resistance to ammonia, salt mist, and mechanical stress, it's ideal for utility-scale ground-mounted installations, C&I rooftops, and tracker systems. The module meets IEC 61215 / 61730, UL 61730, and IEC 62941 standards.

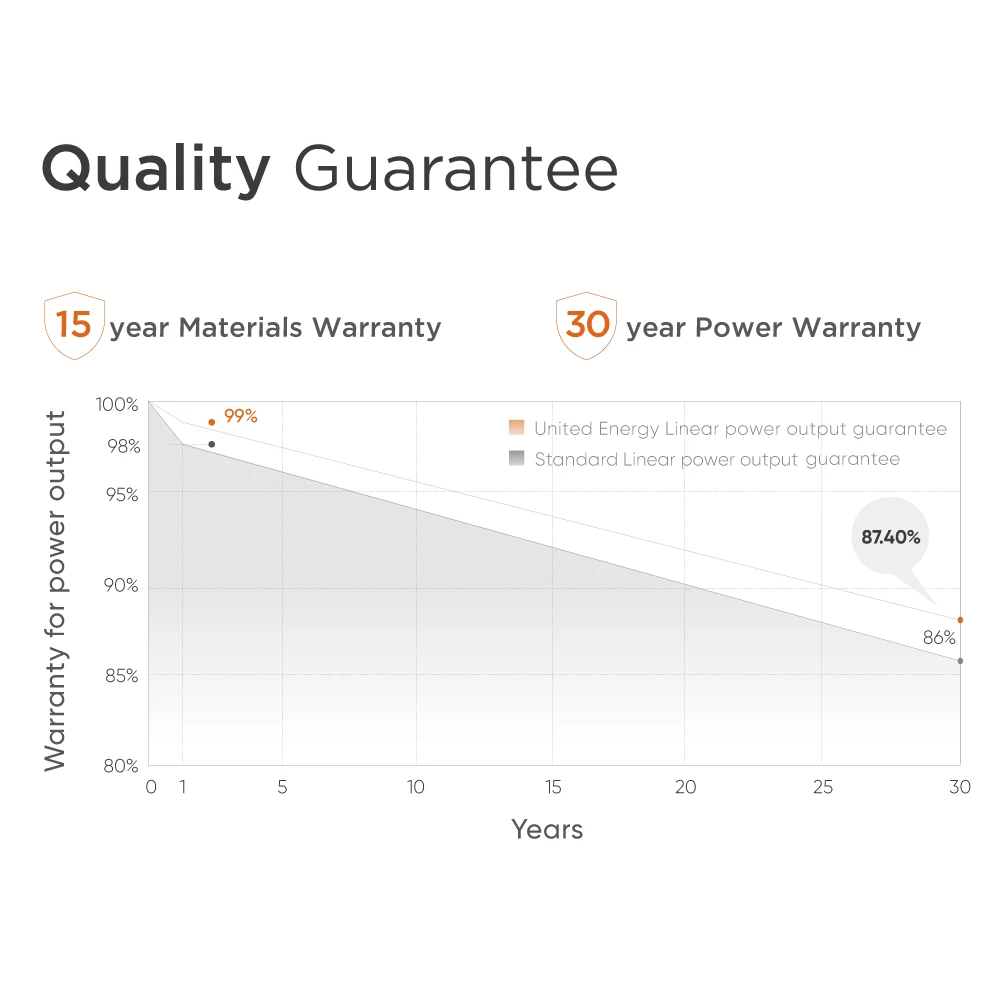

Thanks to its rugged frameless or anodized aluminum design, the UE600 T-72HBD is engineered for long-term outdoor performance with minimal degradation, backed by a 30-year linear power output warranty.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | UE600 T-72HBD |
| Cell Type | N-Type Mono TOPCon |
| Cell Size / Count | 182×182mm / 144 half-cells (72×2) |
| Max Power (Pmax) | 600W |
| Module Efficiency | 23.24% |
| Open Circuit Voltage (Voc) | 52.17V |
| Short Circuit Current (Isc) | 14.42A |
| Voltage @ Pmax (Vmp) | 43.09V |
| Current @ Pmax (Imp) | 13.93A |
| Bifacial Gain | 5–25% |
| Temperature Coef. (Pmax) | -0.29%/°C |
| Operating Temperature | -40°C to +85°C |

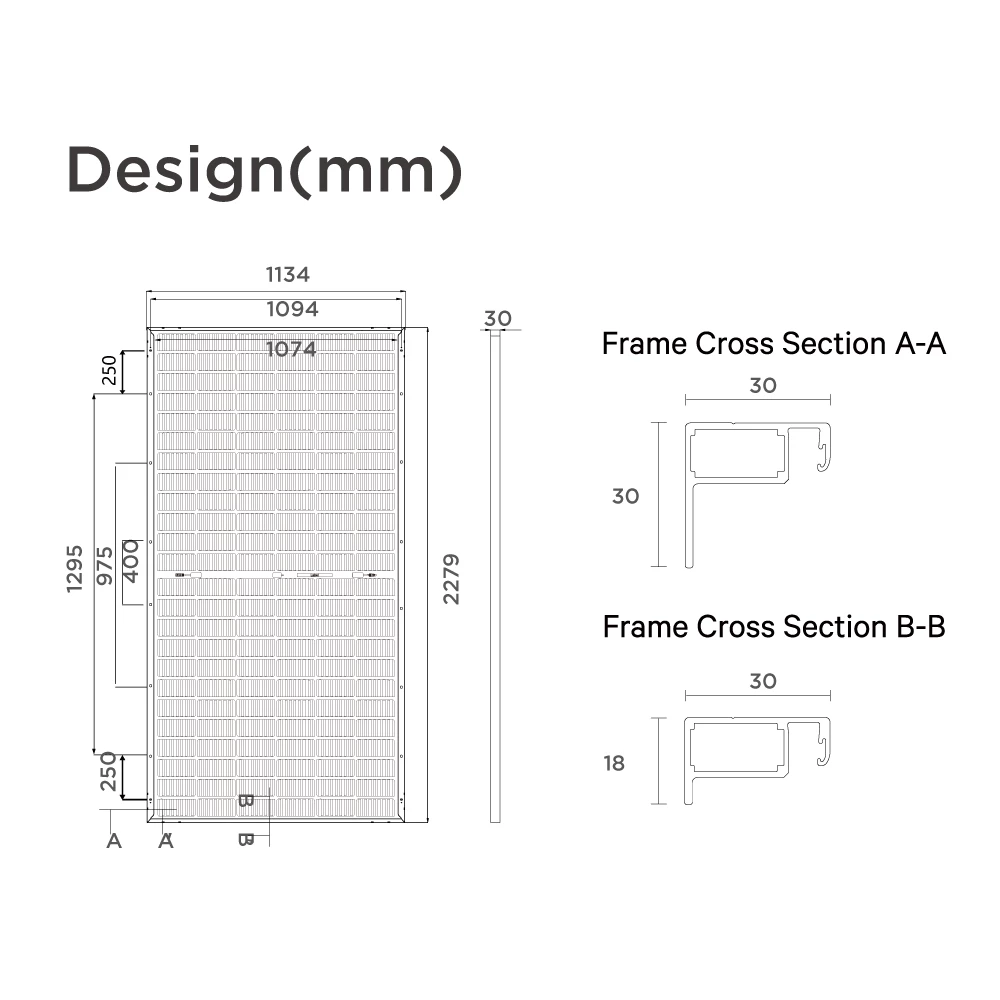

| Module Dimensions | 2279 × 1134 × 30 mm |
| Weight | 32 kg |
| Glass | 2.0mm front + 1.6mm rear, dual-glass |
| Junction Box | IP68, 3 diodes |
| Connectors | MC4 compatible |
| Mechanical Load | 5400Pa (snow) / 2400Pa (wind) |
| Certifications | IEC 61215, IEC 61730, UL 61730, IEC 62941, ISO9001, ISO14001, ISO45001 |
