Product Detailed Description:

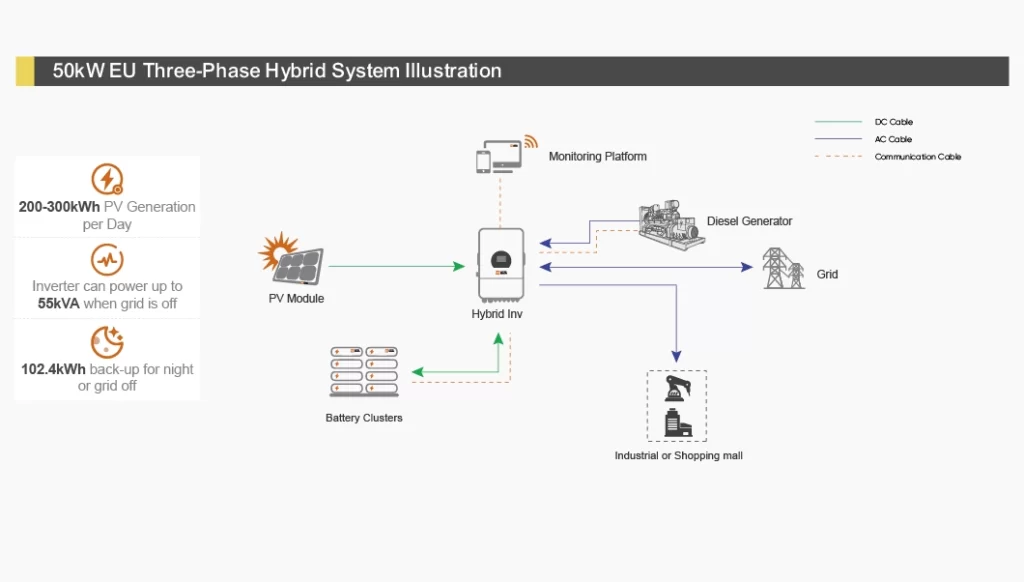

The UE 50kW Three-Phase System is built for mega-scale energy needs:
Key Components:
- Solar Array:
- 590W N-type TOPCon bifacial panels (2279×1134×30mm, 31.5kg) – 23%+ efficiency.

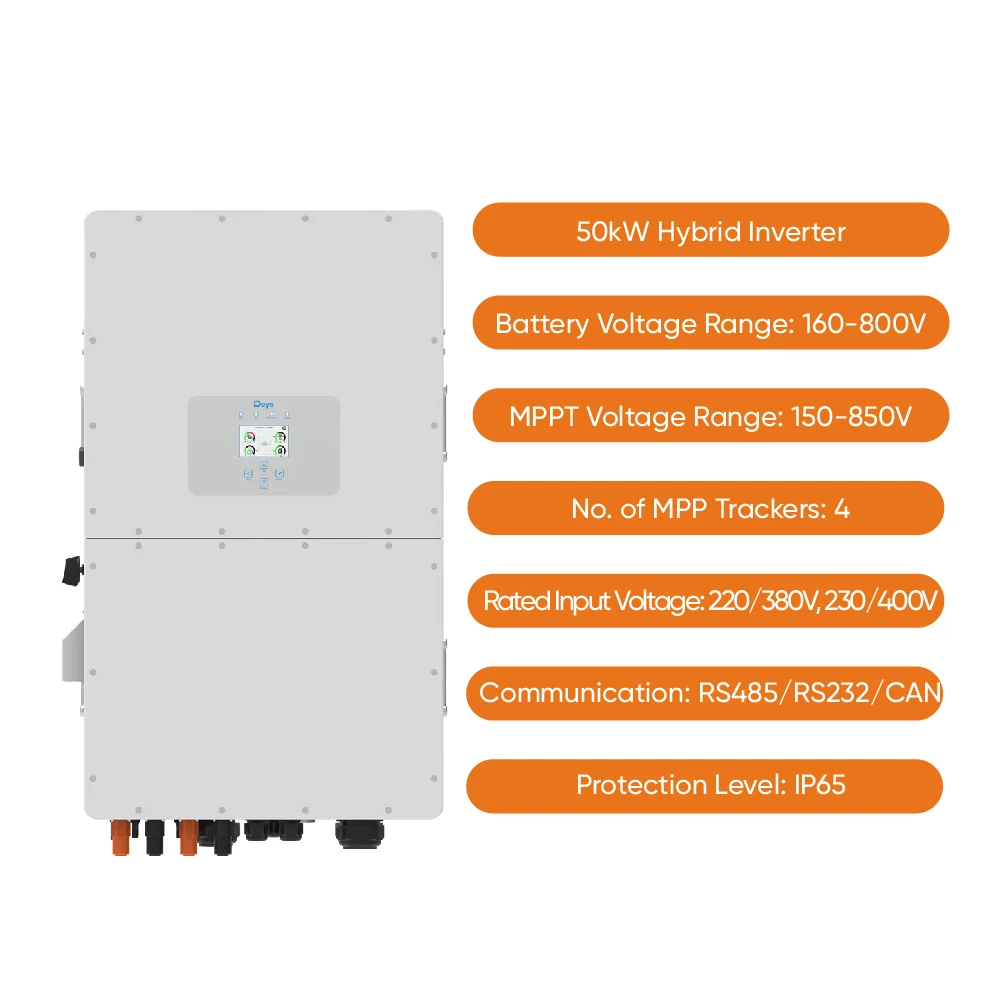

- Hybrid Inverter:
- 50kW continuous output, 4 MPPT trackers (150-850V), 98% efficiency.

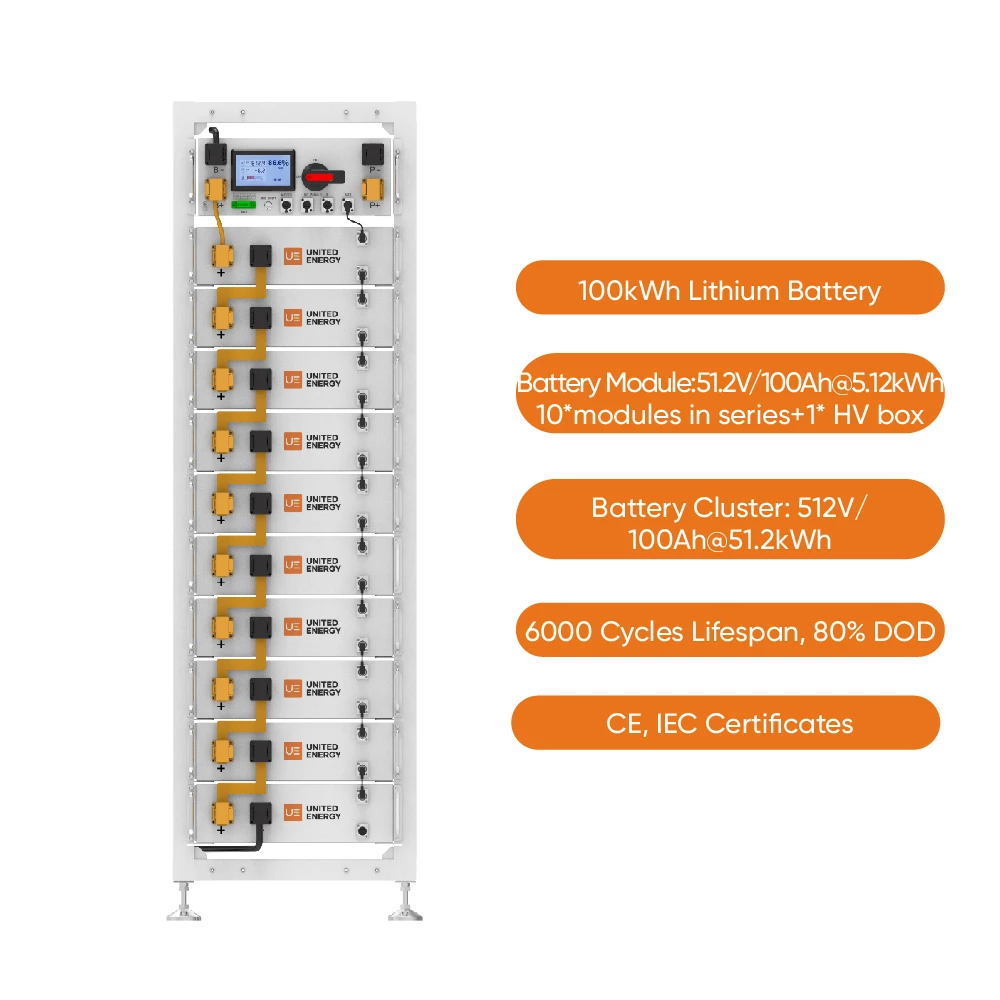

- Battery System:
- HV LiFePO4 (512V/200Ah modules, 440–570V range).
- Scalability:
- Supports parallel clusters up to 300kWh.
Performance Highlights:
- Daily Generation: 250–360kWh (EU insolation).
- Backup Capacity: 102.4kWh base (extends to 300kWh).
- Certifications: CE, IEC, UN38.3.
Technical Specifications Table:
| Component | Specifications |
|---|---|
| Solar Panel | 590W TOPCon, 2279×1134×30mm |
| Inverter | 50kW three-phase, 98% efficiency, 4 MPPT |
| Battery (Base) | 102.4kWh (512V/200Ah), scalable |
| System Voltage | 220/380V AC, 150-850V DC (PV) |
| Operating Temp | -20°C to 50°C (battery), -40°C to 60°C (panel) |
| Communication | WiFi/RS485/CAN |
