Product Description
The United Energy UE485H-48HBD is a premium rectangle-cell HJT bifacial solar panel, offering cutting-edge performance, durability, and beauty. Featuring 96 HJT mono half-cells, this panel combines thin-film and crystalline silicon for superior energy generation—even in low-light or high-temperature conditions.
With up to 90% bifaciality, the panel harvests rear-side sunlight for a significant power boost. Its dual-glass structure and IP68-rated junction box provide industrial-grade protection against moisture, heat, and mechanical loads, making it ideal for rooftops, carports, and ground-mount installations.
Perfect for high-end solar applications where performance and appearance both matter, the UE485H-48HBD is backed by 30 years of linear power warranty and is certified under global safety and quality standards.
Technical Specifications
| Specification | UE485H-48HBD |
|---|---|
| Power Output (Pmax) | 465W ~ 485W |
| Max Efficiency | 24.00% |
| Cell Technology | HJT Mono, Rectangle Half-Cell |
| Number of Cells | 96 (6×16) |

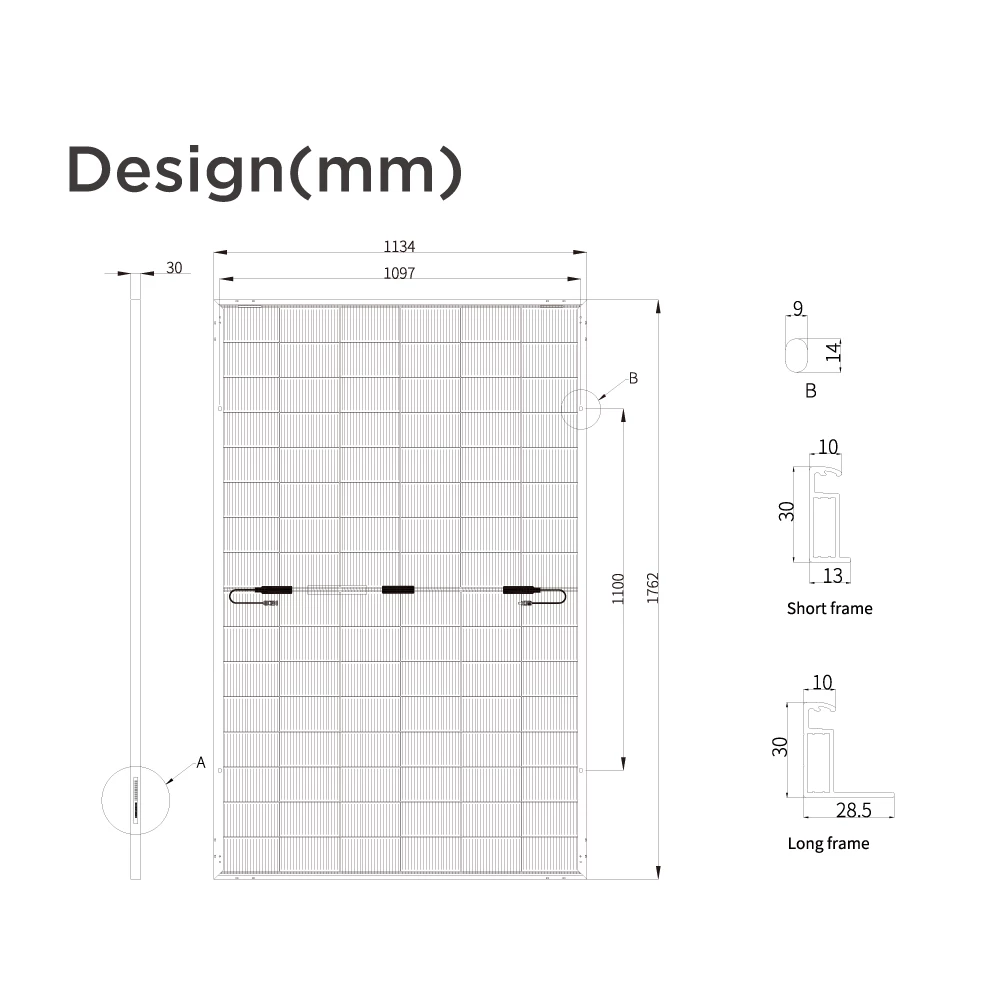

| Dimensions (mm) | 1762 × 1134 × 30 |
| Weight | 21.6 kg |
| Bifaciality | Up to 90% |
| Front / Rear Load | 5400Pa / 2400Pa |
| Glass | Double Glass (2.0mm / 1.6mm) |
| Frame | Black Anodized Aluminum |
| Junction Box | IP68, 3 Bypass Diodes |
| Connector | MC4 Original / Compatible |
| Cable | 4mm², 300mm (customizable) |
| Max System Voltage | 1500V DC |
| Power Tolerance | 0 ~ +5W |
| Operating Temp. Range | -40°C ~ +85°C |
| Temp. Coeff (Pmax) | Approx. -0.26%/°C |
| Certifications | IEC61215 / IEC61730 / UL61730 / ISO9001 / ISO14001 / ISO45001 / IEC62941 |

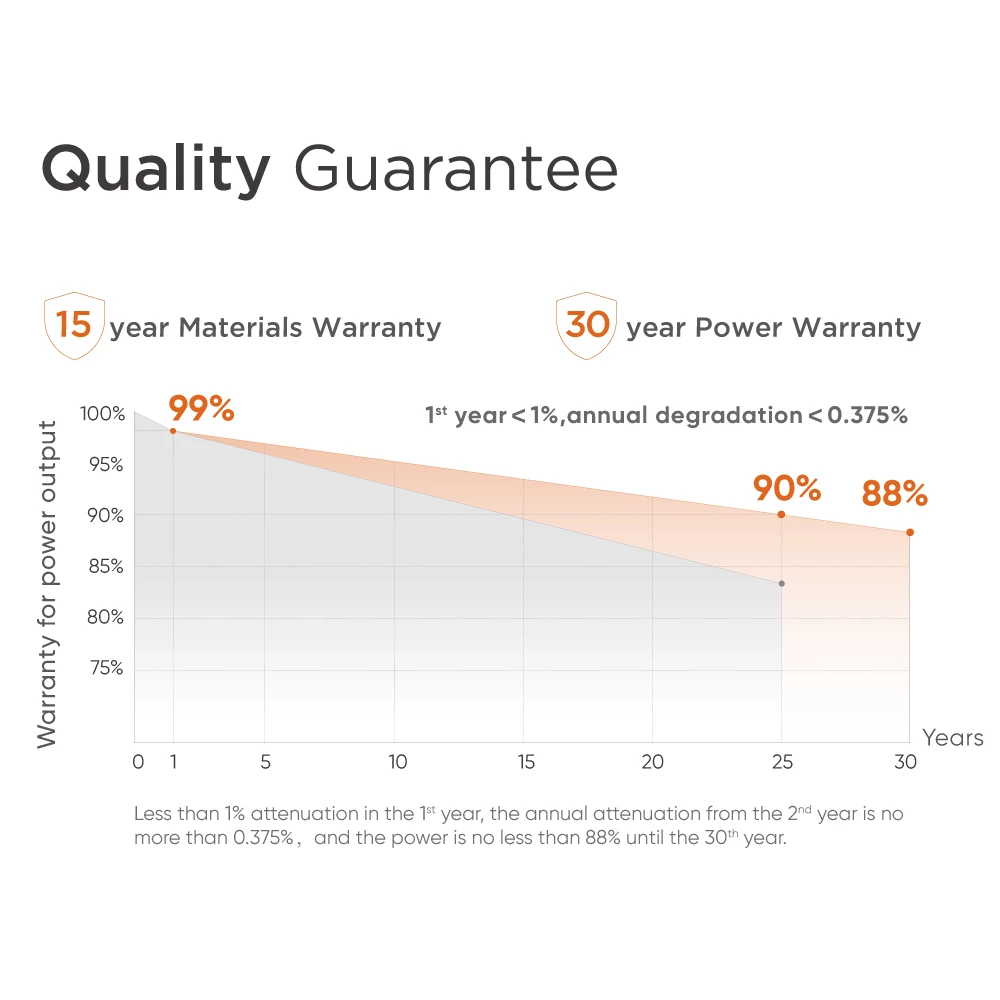

| Warranty | 15-Year Workmanship / 30-Year Linear Power Warranty |
