Product Description
The UE465H-54HBD from United Energy represents the next generation of high-efficiency solar modules, integrating heterojunction (HJT) bifacial half-cut cells with a symmetrical double-glass structure. Designed for both performance and longevity, this panel features enhanced low-light performance, superior temperature coefficient, and outstanding reliability under harsh environmental conditions.
With up to 90% bifaciality, the module captures rear-side irradiance for increased yield. Its elegant black frame and compact size make it especially attractive for residential and C&I rooftop systems. Backed by a 30-year linear power output warranty, the UE465H-54HBD ensures lasting value and reliable return on investment.
Technical Specifications
| Specification | UE465H-54HBD |
|---|---|
| Power Output (Pmax) | 445W ~ 465W |
| Max Efficiency | 23.79% |
| Cell Technology | HJT Bifacial Half-Cell |
| Number of Cells | 108 (6×18) |
| Module Dimensions (mm) | 1722 × 1134 × 30 |
| Weight | 26 kg |
| Bifaciality | Up to 90% |
| Front / Rear Load | 5400Pa / 2400Pa |
| Glass | Dual-glass (2.0mm / 1.6mm) |
| Frame | Black Anodized Aluminum |
| Junction Box | IP68, 3 Bypass Diodes |
| Connector | MC4 Original / Compatible |
| Cable | 4mm², 300mm (customizable) |
| Power Tolerance | 0 ~ +5W |
| Max System Voltage | 1500V DC |
| Operating Temp. Range | -40°C ~ +85°C |
| Temp. Coeff (Pmax) | ~ -0.26%/°C (typical HJT) |
| Certifications | IEC61215 / IEC61730 / UL61730 / ISO9001 / ISO14001 / ISO45001 / IEC62941 |

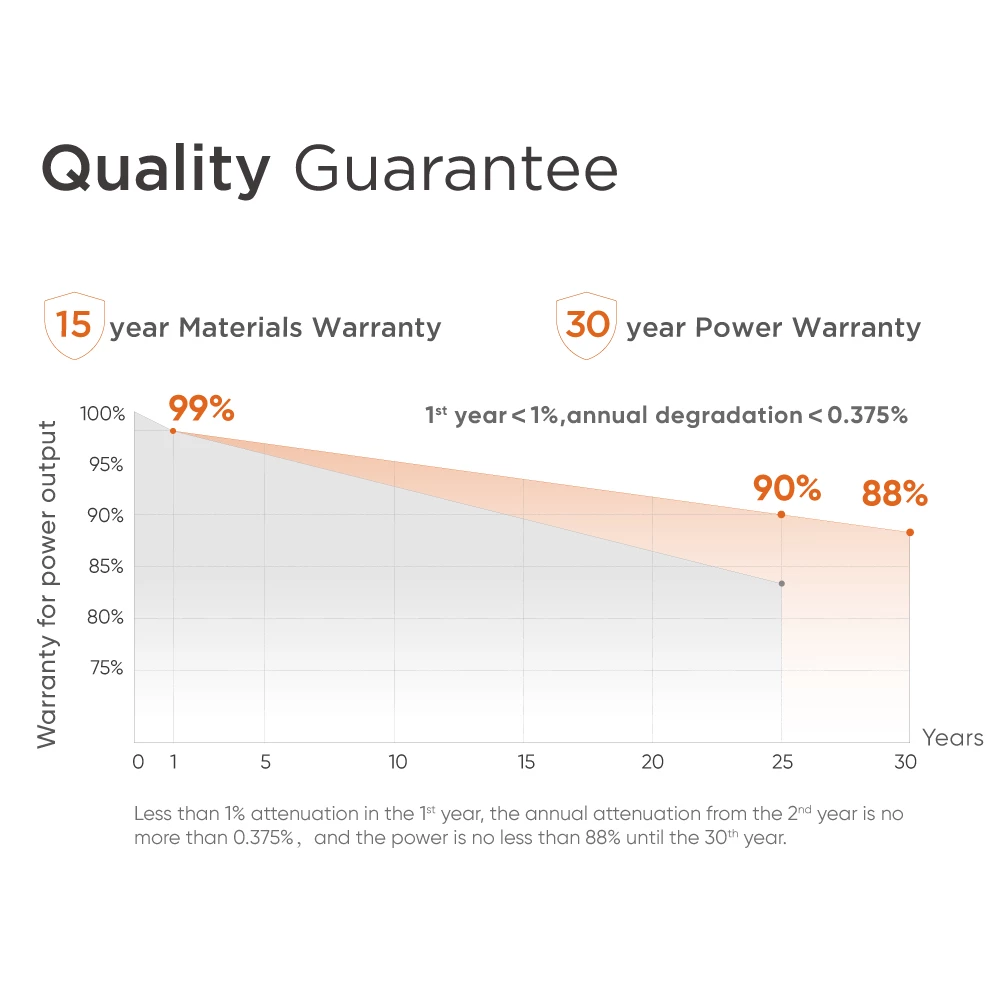

| Warranty | 15 Years Workmanship / 30 Years Power Output Warranty |
