Product Description
The UE450 T-54HBD from United Energy is a compact high-efficiency bifacial module designed for use in space-constrained systems without compromising performance. It uses 182mm × 182mm half-cut N-type TOPCon cells, sealed in a dual-glass enclosure, ensuring top-tier protection against moisture, UV, and mechanical wear.
Ideal for residential and commercial PV systems, the module offers excellent low-light performance, stable output in challenging climates, and seamless integration with common inverter and racking systems. With its PID-resistant cell structure and TÜV Nord certified durability, it’s a long-term energy asset you can trust.
Technical Specifications
| Specification | UE450 T-54HBD |
|---|---|
| Power Output (Pmax) | 430W ~ 450W |
| Max Efficiency | 23.04% |
| Cell Type | N-Type TOPCon, 182×182mm Half-Cell |
| Cell Count | 108 (54×2) |

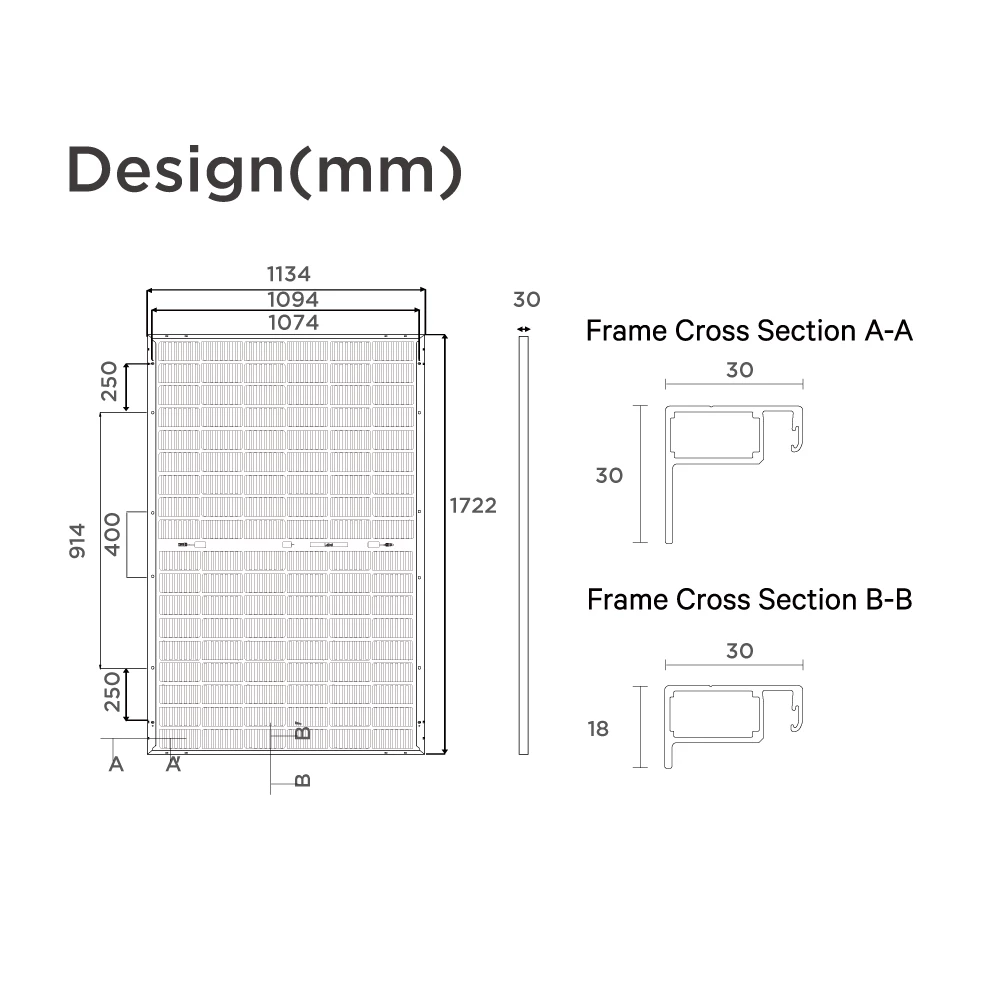

| Dimensions (mm) | 1722 × 1134 × 30 |
| Weight | 24 kg |
| Bifacial Gain | 5% ~ 25% |
| Glass | Dual Glass (2.0mm / 1.6mm) |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated, 3 Bypass Diodes |
| Connector | MC4 Compatible |
| Cable | 4mm², 300mm (customizable) |
| Max System Voltage | 1500V DC |
| Series Fuse Rating | 25A |
| Power Tolerance | 0 ~ +5W |
| Operating Temp. Range | -40°C ~ +85°C |
| NMOT | 45 ± 2°C |
| Temp. Coeff (Pmax) | -0.29% / °C |
| Temp. Coeff (Voc) | -0.25% / °C |
| Temp. Coeff (Isc) | +0.045% / °C |
| Certifications | IEC 61215 / IEC 61730 / UL 61730 / ISO 9001 / 14001 / 45001 / IEC62941 |

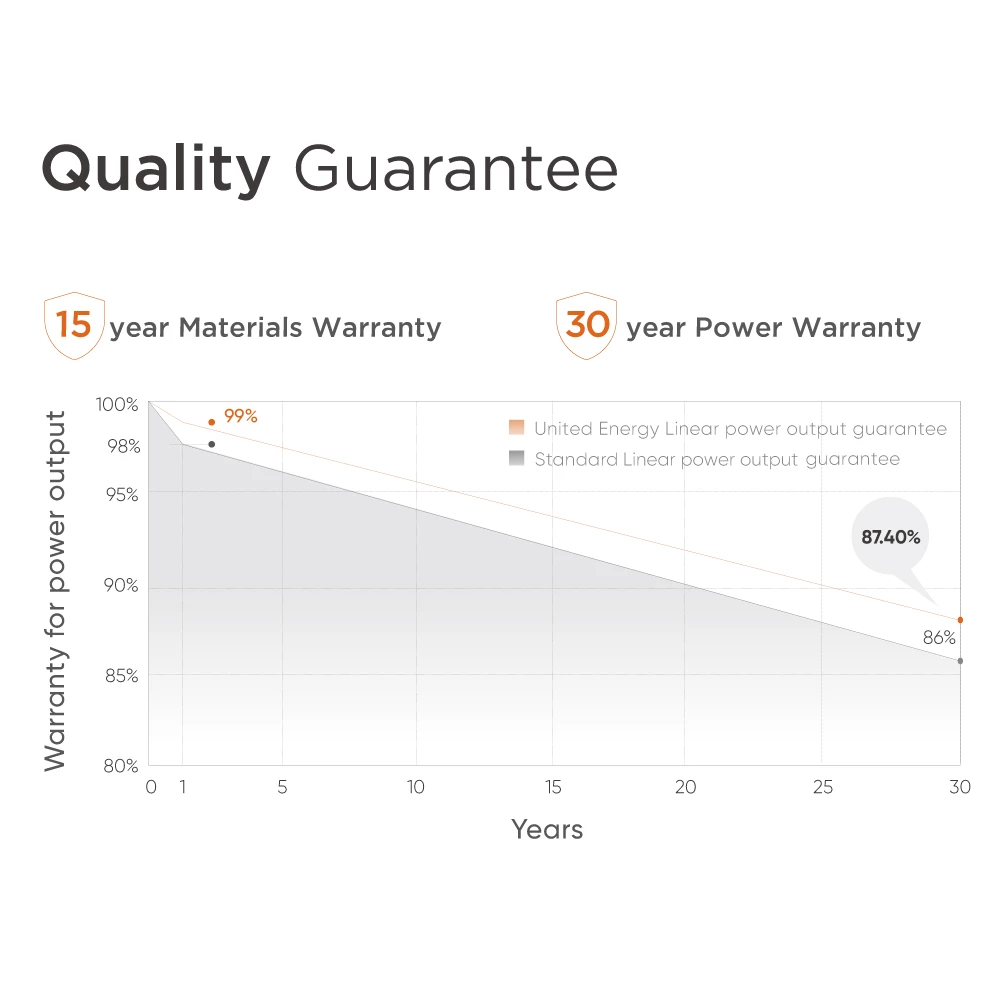

| Warranty | 15-Year Materials / 30-Year Linear Power Warranty |
