Product Detailed Description:
The R5-HV Series delivers mission-critical energy storage for:
Key Features:
- Voltage Flexibility: Choose from 10 voltage options (153.8V–656.8V) to match your infrastructure.

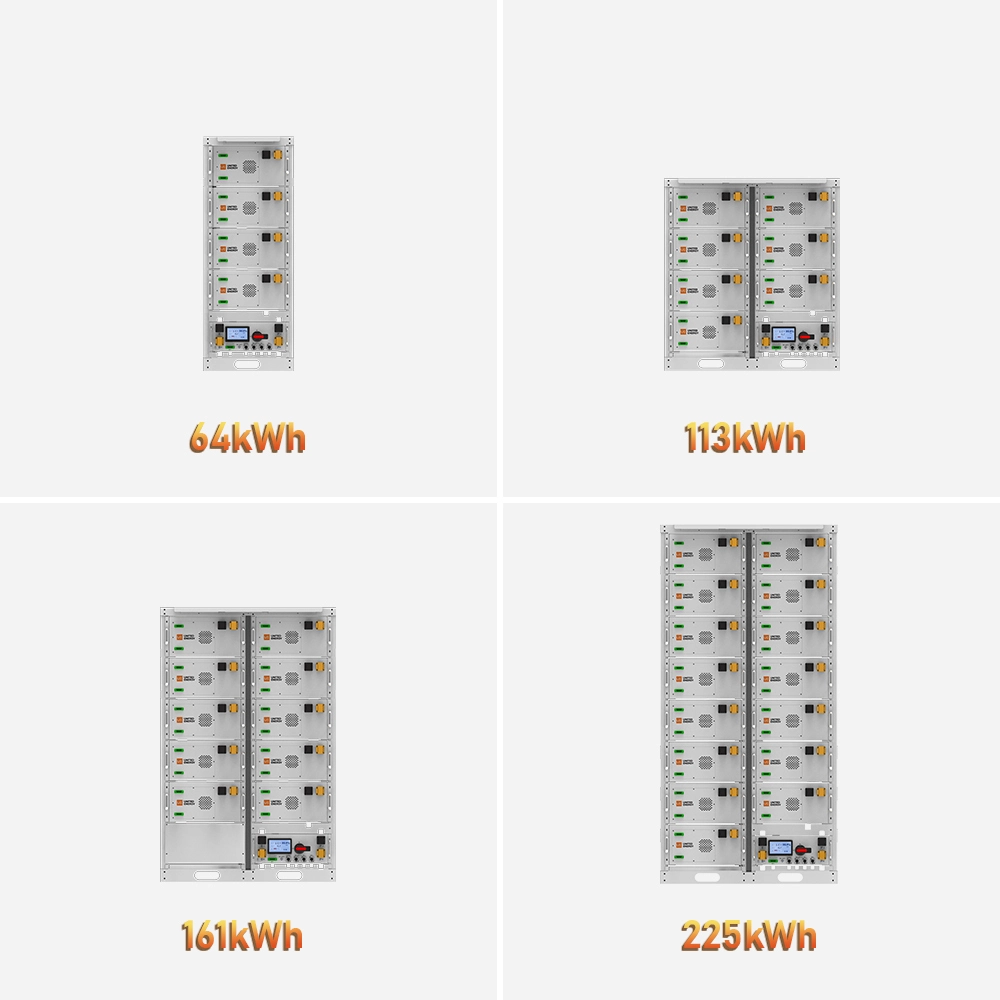

- Scalable Power: Stack up to 16 units for MW-scale projects (data centers, microgrids).
- Robust Safety: UN38.3/MSDS/CE-certified LiFePO4 cells with multi-layer BMS protection.
- Wide Operating Range: -20°C to 55°C discharge, 0°C to 55°C charge.
- Smart Monitoring: RS485/CAN communication for real-time diagnostics.
Applications:
- Industrial Peak Shaving
- Data Center Backup
- Renewable Energy Smoothing
Technical Specifications Table:
| Model | R5-HV-48 | R5-HV-96 | R5-HV-113 | R5-HV-129 | R5-HV-206 |
|---|---|---|---|---|---|
| Voltage | 153.8V | 307.2V | 358.6V | 409.6V | 656.8V |
| Capacity | 314Ah | 314Ah | 314Ah | 314Ah | 314Ah |
| Energy | 48kWh | 96kWh | 113kWh | 129kWh | 206kWh |
| Weight | 398kg | 668kg | 698kg | 698kg | 698kg |
| Max Current | 200A | 200A | 200A | 200A | 200A |
