Product Detailed Description:

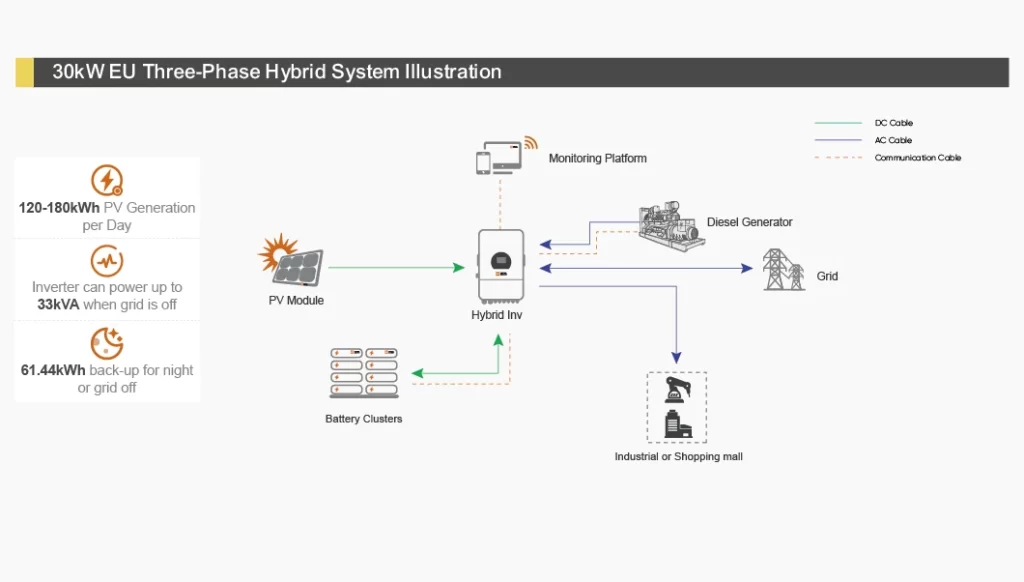

The UE 30kW Three-Phase System is built for 24/7 energy reliability:
Key Components:
- Solar Array:
- 590W N-type TOPCon bifacial panels (2279×1134×30mm, 31.5kg) – 23%+ efficiency.

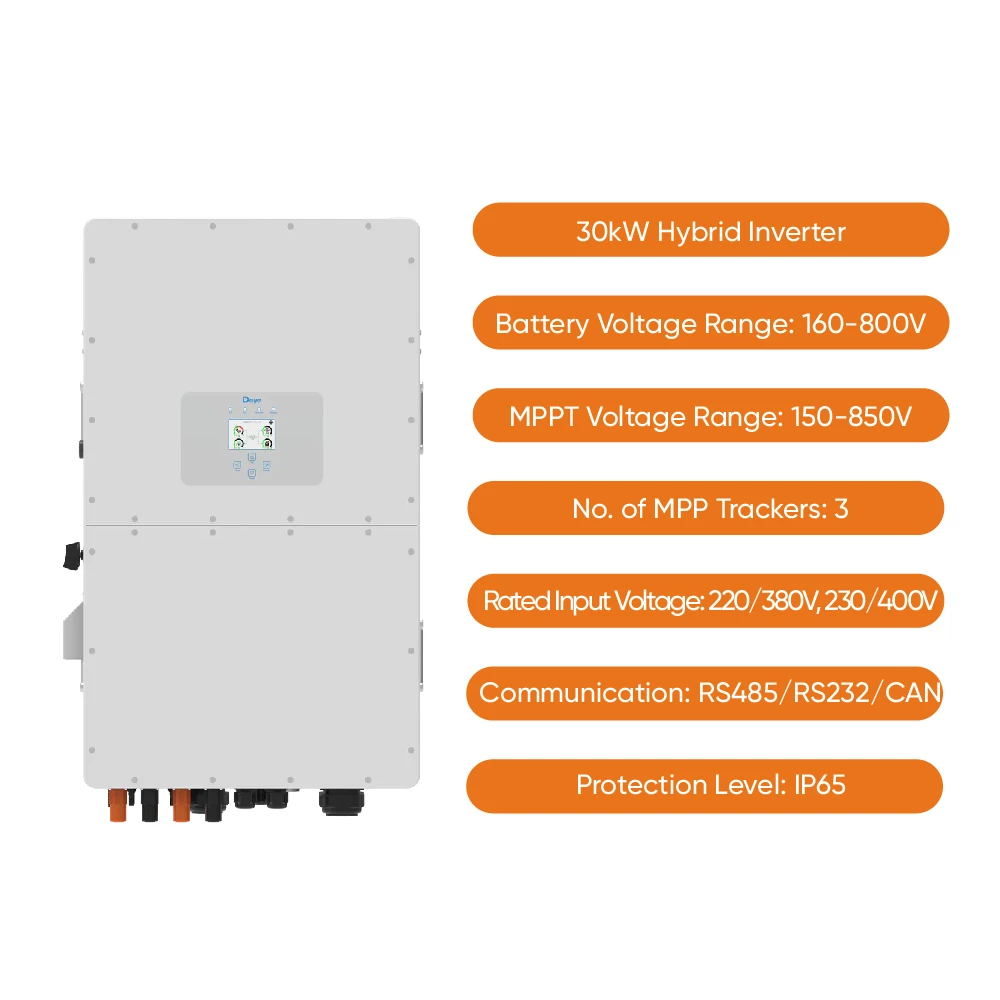

- Hybrid Inverter:
- 30kW output, 3 MPPT trackers (150-850V), 97.6% efficiency.

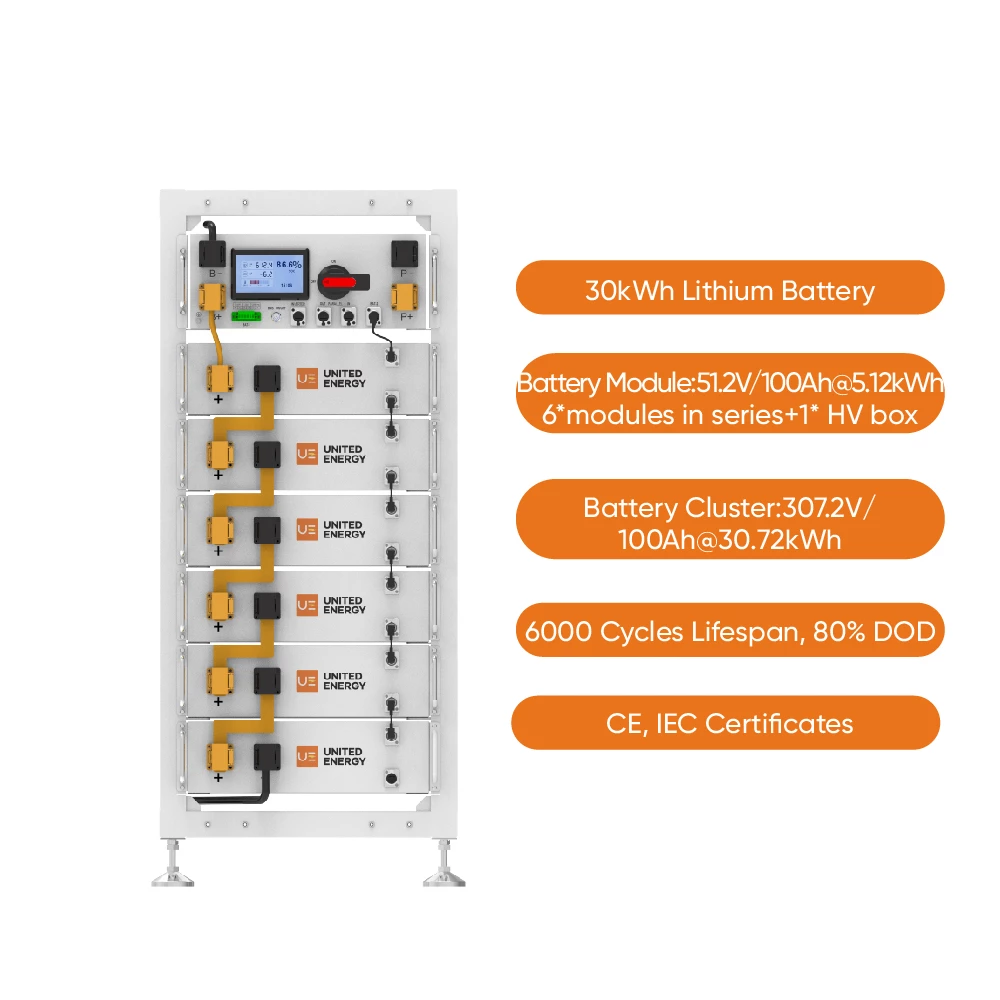

- Battery Storage:
- HV LiFePO4 (307.2V/100Ah cluster, 268.8V–345.6V range).
- Scalability:
- Supports 10 inverters in parallel (up to 300kW total).
Performance Highlights:
- Daily Output: 120–180kWh (EU average).
- Backup Capacity: 61.44kWh (extends to 100kWh with expansion).
- Certifications: CE, IEC, TUV.
Technical Specifications Table:
| Component | Specifications |
|---|---|
| Solar Panel | 590W TOPCon bifacial, 2279×1134×30mm |
| Inverter | 30kW three-phase, 97.6% efficiency, 3 MPPT |
| Battery (Base) | 30.72kWh (307.2V/100Ah), scalable to 100kWh |
| System Voltage | 220/380V AC, 150-850V DC (PV) |
| Operating Temp | -20°C to 50°C (battery), -40°C to 60°C (panel) |
| Communication | WiFi/RS485/CAN |
