Product Overview
The UEI-250kW-631kWh is a high-capacity, enterprise-grade photovoltaic + energy storage hybrid system engineered for large commercial and industrial facilities in the US market.
Featuring the latest 720Wp N-Type Topcon solar modules, a built-in transformer PCS inverter, integrated ATS cabinet, and optional EMS intelligent control, this system delivers seamless transition between grid-tied, hybrid, and off-grid modes. With a standard 250kW AC output and 631kWh usable storage, daily PV generation reaches 1,037-1,555 kWh, making it ideal for factories, data centers, logistics hubs, and large commercial complexes seeking energy resilience and cost optimization.
Performance Metrics & Applications
Key Performance Data
| Metric | Value |
|---|---|
| Daily PV Generation | 1,037 – 1,555 kWh (location-dependent) |
| Max AC Output Power | 275 kVA |
| Standard Backup Capacity | 631 kWh (expandable to 1,892 kWh) |
| Grid Specification | 277/480V Three-Phase, 60Hz (US Standard) |
| System Efficiency | ≥96.5% (end-to-end) |
Ideal Applications
| Sector | Key Benefits |
|---|---|
| 🏭 Manufacturing Plants | Reduce demand charges; ensure production continuity during grid instability; leverage time-of-use arbitrage. |
| 📦 Logistics & Warehousing | Power cold storage & automation systems 24/7; lower operational energy costs with solar self-consumption. |
| 🏢 Data Centers | Provide UPS-grade backup with seamless ATS switching; meet sustainability targets with renewable integration. |
| 🛒 Large Retail Complexes | Offset peak-hour electricity costs; enhance brand ESG profile with visible clean energy deployment. |
| 🏗️ Remote Operations / Microgrids | Enable energy independence with generator integration; scalable design supports phased deployment. |
System Configuration & Specifications
| Component | Model / Description | Key Specifications | Qty |
|---|---|---|---|

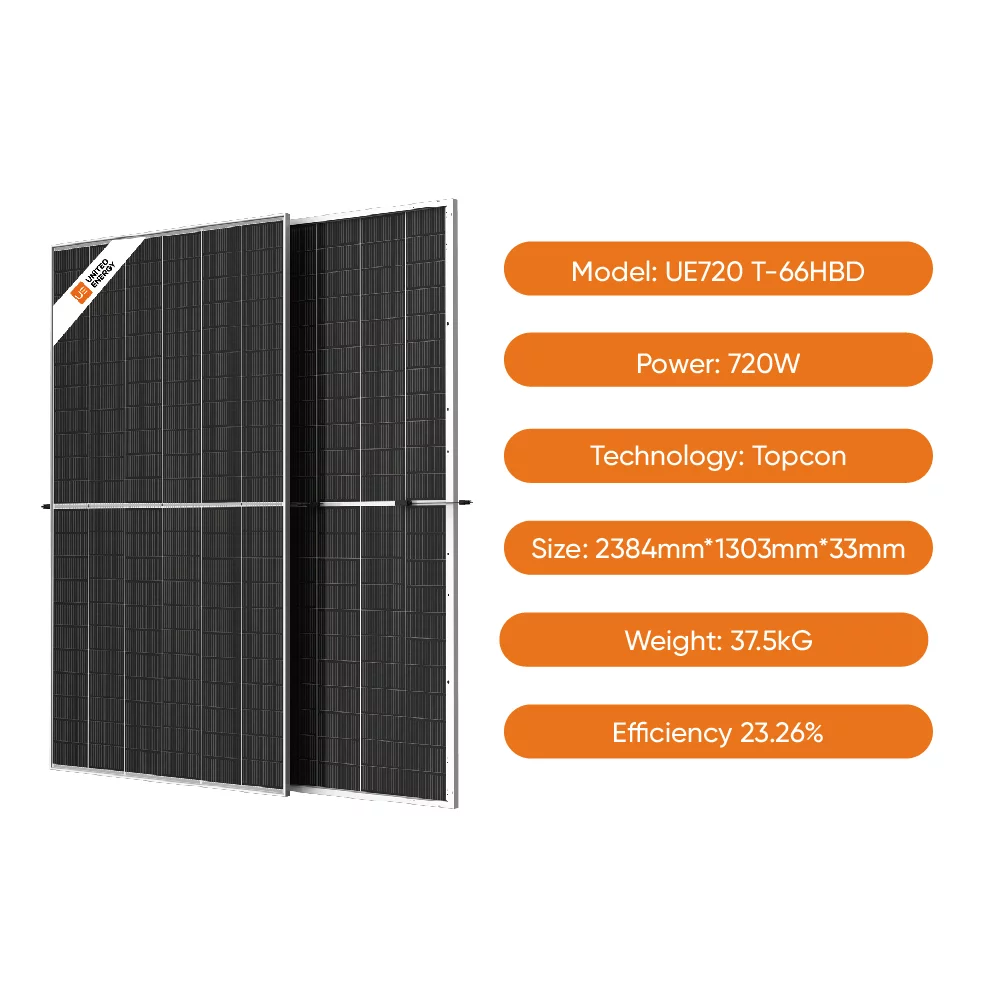

| Solar Module | UE720T-66HBD | Power: 720Wp Tech: N-Type Topcon Efficiency: 23.26% Size: 2384×1303×33mm Weight: 37.5 kg | 360 pcs (18 pcs/string, 20 strings) |
| PV Combiner Box | 5-in-1 Combiner | Input: 5 strings Output: 1 circuit Features: Fuses, output switch, SPD Protection: IP65 | 5 units |

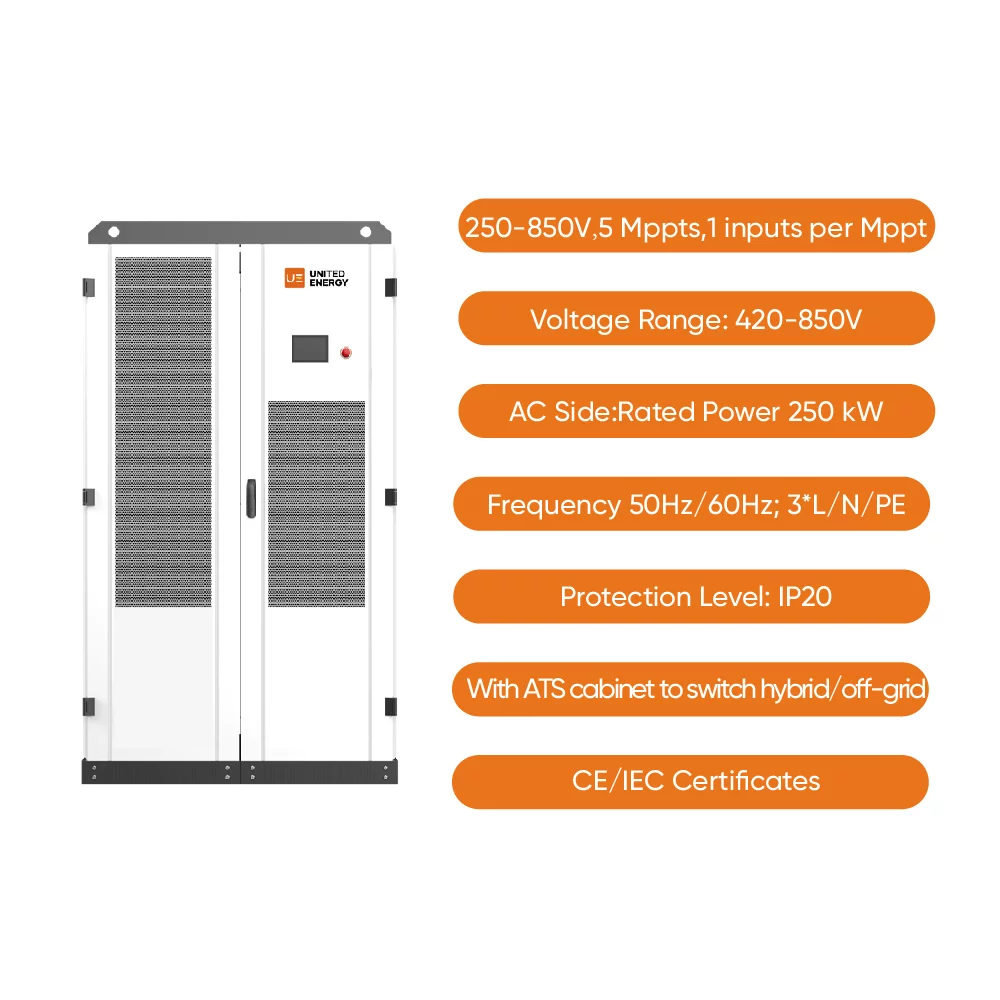

| Hybrid Inverter | US 250kW PCS Inverter (with ATS Cabinet) | PV Side: MPPT 250-850V, 5 MPPTs, 1 input/MPPT Battery Side: 420-850V AC Output: 250kW rated / 275kVA max, 277/480V 3Φ, 60Hz Transformer: Built-in isolated Protection: IP20 Cert: CE/IEC | 1 unit |
| HV Lithium Battery | Battery Cluster (Cables & Rack Included) | Cell: 3.2V/280Ah Module: 51.2V/280Ah @ 14.336kWh (16S) Cluster: 563.2V/280Ah @ 157.696kWh (11 modules + HV box) Voltage Range: 492.8V–633.6V Cert: CE/IEC | 4 clusters (Total: 631kWh) |
| Battery Combiner Cabinet | 4-in-1 Combiner | Input: 4 clusters Output: 1 circuit to inverter Features: Input breaker, output switch, SPD | 1 unit |
| Mounting Structure | Ground-Mount System | Designed for 360×720Wp modules All hardware included Cert: CE/IEC | 1 set |
| EMS Cabinet (Optional) | Energy Management System | Controller + software, I/O modules, 8×GE switches, 1kVA UPS (60min), HMI screen | 1 unit |
| Accessories (Optional) | Cables, MC4 Connectors, Installation Tools | Customizable per site requirements | 1 set |
Estimated ROI & Value Proposition
(Illustrative calculation based on US commercial rates)
📊 Sample Scenario (Avg. Rate: $0.28/kWh + Demand Charges):
- Daily Solar Self-Consumption: ~1,300 kWh × $0.28 = $364/day
- Annual Energy Savings: ≈ $132,860
- Demand Charge Reduction (Peak Shaving): ~$15,000–$40,000/year
- Backup Power Value: Avoided downtime costs (industry-dependent)
- Estimated Payback Period: 4–6 years (with applicable incentives)
