To address the growing demand for reliable, cost-effective, and clean energy among U.S. households, and to leverage the customer’s local region’s accessible solar resources—with the area boasting an average of 5 to 6 hours of daily sunlight—we recently installed and commissioned a 20kW residential hybrid solar system for a U.S. homeowner. This system is customized to meet the family’s daily electricity needs while delivering long-term energy independence and economic benefits.

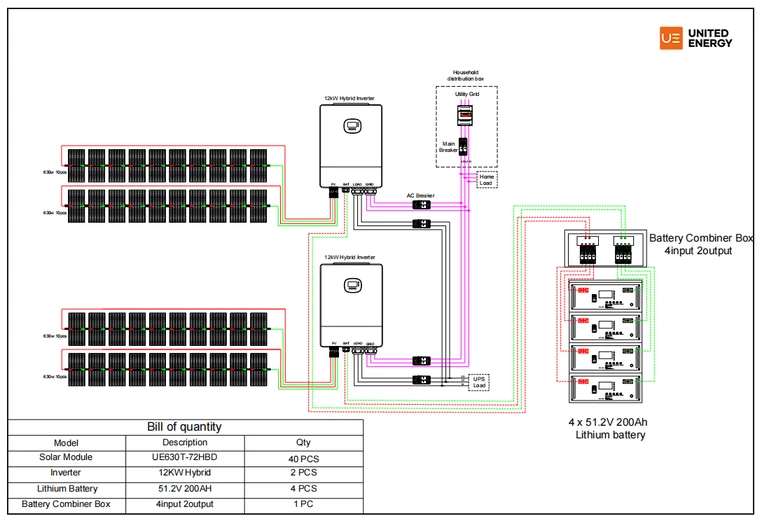

UE technical team provides customized solar solutions for each customer. Based on the customer's location and roof type, we designed precise solar panel layouts, electrical connection diagrams, and 3D layout renderings. This not only ensures safe and efficient operation of the system but also helps customer gain a clear understanding of the product and installation process.
Product details:
630W TOPCon Bifacial Dual Glass Solar Panel (36Pcs)
Model：UE630T-66HBD
Dimensions: 2382 x 1134 x 30mm
Weight: 33.5Kg
Max.Eff: 23.32%

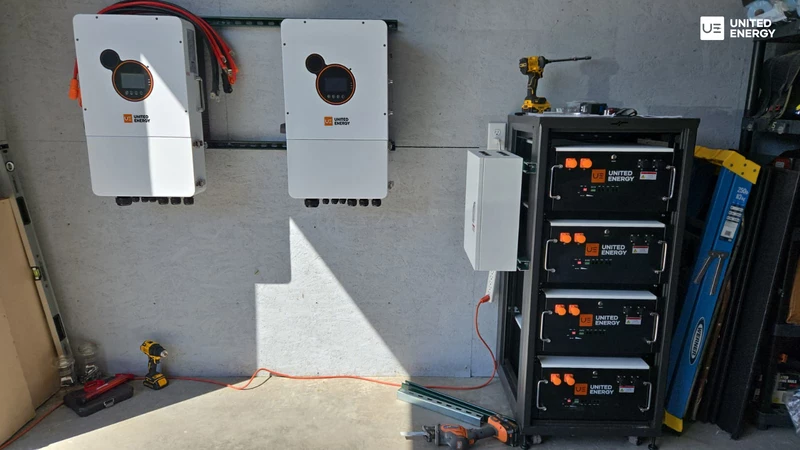

10kW Hybrid Inverter (2 Units)
Rated Power: 10kW
Output Voltage: 120/240Vac Split-phase
Battery Type: Lead-acid/ Li-ion
Rated Battery Voltage: 48V
Num. of MPPT Trackers: 2
MPPT Voltage Range: 125~450Vdc
10kWh Lithium Battery (4 Units)
51.2V 200Ah
Total Capacity: 10.24kWh
Cycles Life: ≥6000cycles@25℃, 80%DOD
Build-in BMS
Operating Temperature Range: - 10℃~ 55℃
Battery Combiner Box (1 Unit)
Configuration: 4 DC input / 2 DC output
Including DC breakers, SPD and other accessories
Mounting System
Customized For 36pcs 630W Solar Panel

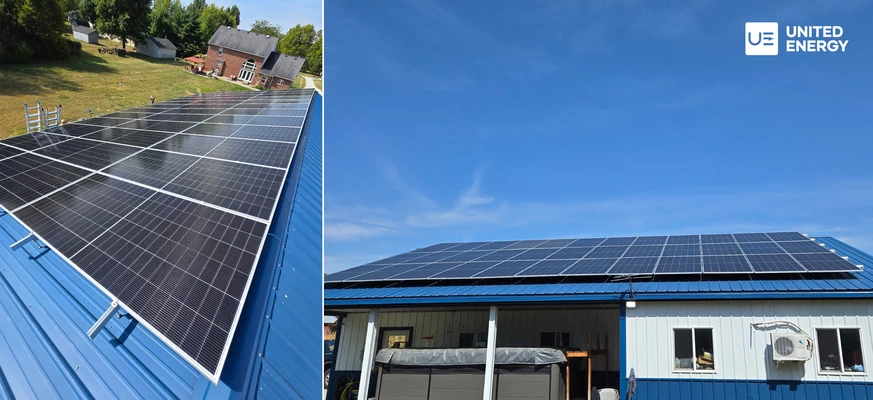

Designed for sloped metal roof Installation
4mm² Single-core PV Cable 400m Length
MC4 Connector 20 Sets
Project Results
According to data from the online monitoring platform, the system currently maintains stable daily power generation of approximately 110 kWh—fully meeting the customer’s household energy consumption needs, from powering essential appliances (e.g., refrigerators, air conditioners, and water heaters) to supporting daily use of electronic devices.
“This solar system has been a game-changer for our home,” the homeowner shared. “We no longer stress about rising electricity bills, and it’s reassuring to know we’re having stable power backup. Moreover, as we do our part to reduce pollution, we believe this is a smart investment for both our family and the planet.”
Conclusion
Looking ahead, we will continue to focus on delivering customized clean energy solutions to more households, bringing reliable solar power to them—empowering them to achieve energy independence while contributing to a greener future.
For additional information, please feel free to contact us via email ( info@ue-pv.com ) or WhatsApp ( +86 189 0569 0996 ). We'll respond promptly.
