24kW Hybrid Solar System Product Detailed Description:
The 24kW UL Three-Phase Hybrid PV+ESS System is an all-in-one solar and battery storage solution engineered for heavy-duty applications in commercial, industrial, and remote locations. This system includes 3 x 8kW UL-certified hybrid inverters, offering 24kW continuous power and up to 26.4kVA in off-grid mode.
With 60 high-efficiency 450W N-type Topcon bifacial solar panels, the system achieves a daily yield of 108–162kWh. The 48kWh battery bank (built from three wall-mounted 48V 200Ah LiFePO₄ batteries) ensures uninterrupted power during nighttime or outages.

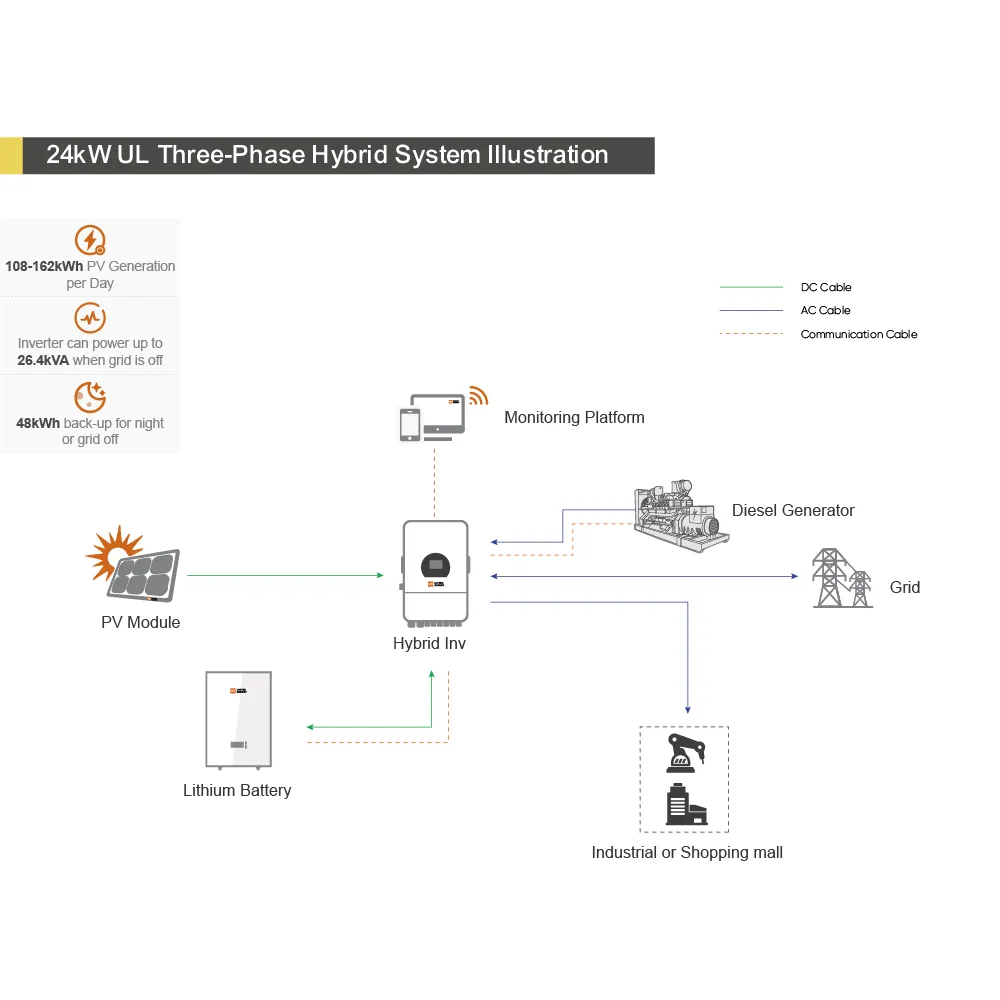

Whether connected to the grid, operating standalone, or backed by a diesel generator, the system intelligently manages power through dual MPPTs and WiFi-based EMS. Its parallel-ready, three-phase design allows scaling or integration into larger commercial infrastructures. Built for performance, safety, and scalability, this system is your key to 24/7 clean energy independence.
Technical Specifications Table:
| Component | Specification |
|---|---|
| Inverter | 3 x 8kW UL Hybrid Inverters (97.6% Max Efficiency, WiFi, Split Phase) |
| Solar Panels | 60 x 450W Bifacial N-type Topcon Modules (UE-450M-54HBD) |
| Battery Storage | 3 x 48V 200Ah LiFePO₄ Modules, Total 48kWh |
| PV Output | 108–162kWh/day |
| Backup Output | Up to 26.4kVA in off-grid mode |
| Monitoring | WiFi platform + mobile app |
| Mounting System | Aluminum rooftop brackets + full accessories |
| Certifications | UL, CE, IEC, TUV |
