Product Description
The UEC 20kW PV + 40kWh ESS package is a turnkey hybrid energy system tailored for grid-connected or off-grid applications across Europe. Designed for simplicity and performance, the system consists of:

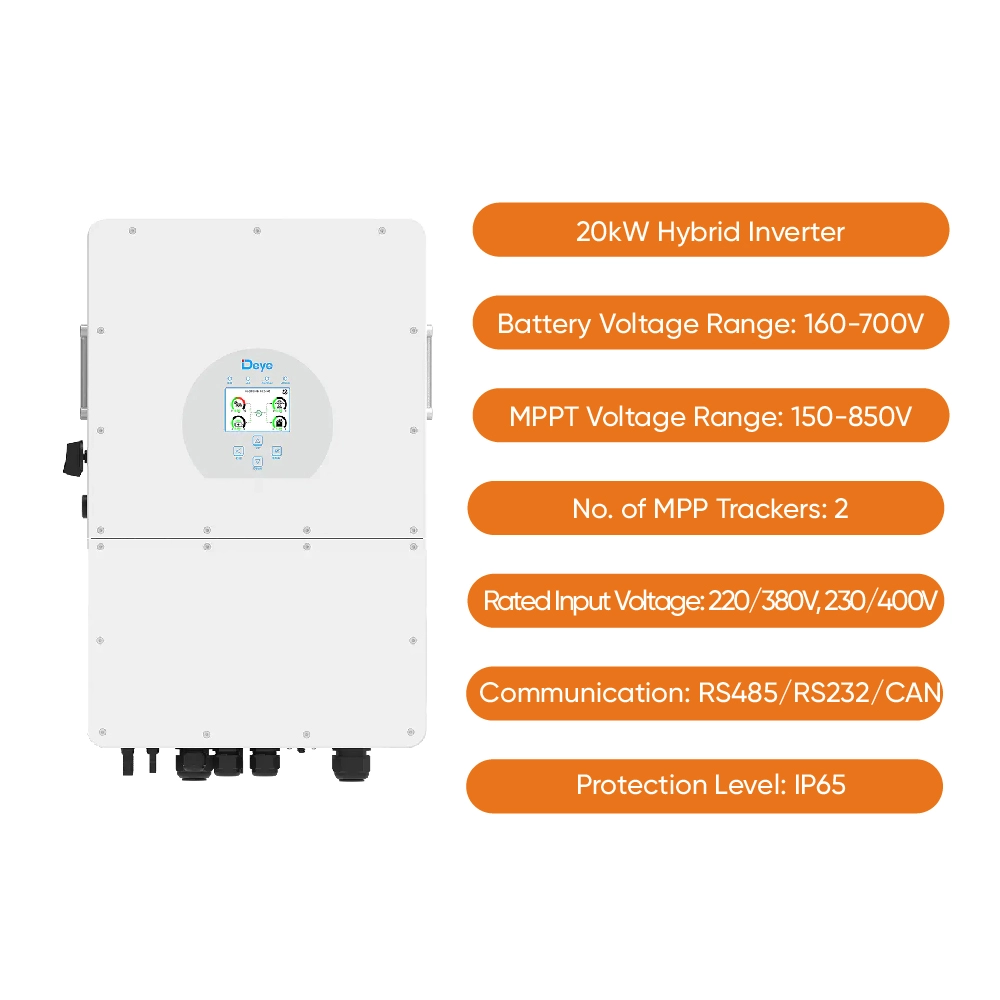

- 1× 20kW hybrid inverter with dual MPPTs, 97.6% max efficiency, and flexible AC output (220/380V, 230/400V @ 50Hz)
- 36 × 590W bifacial N-type Topcon solar panels, delivering up to 120kWh/day

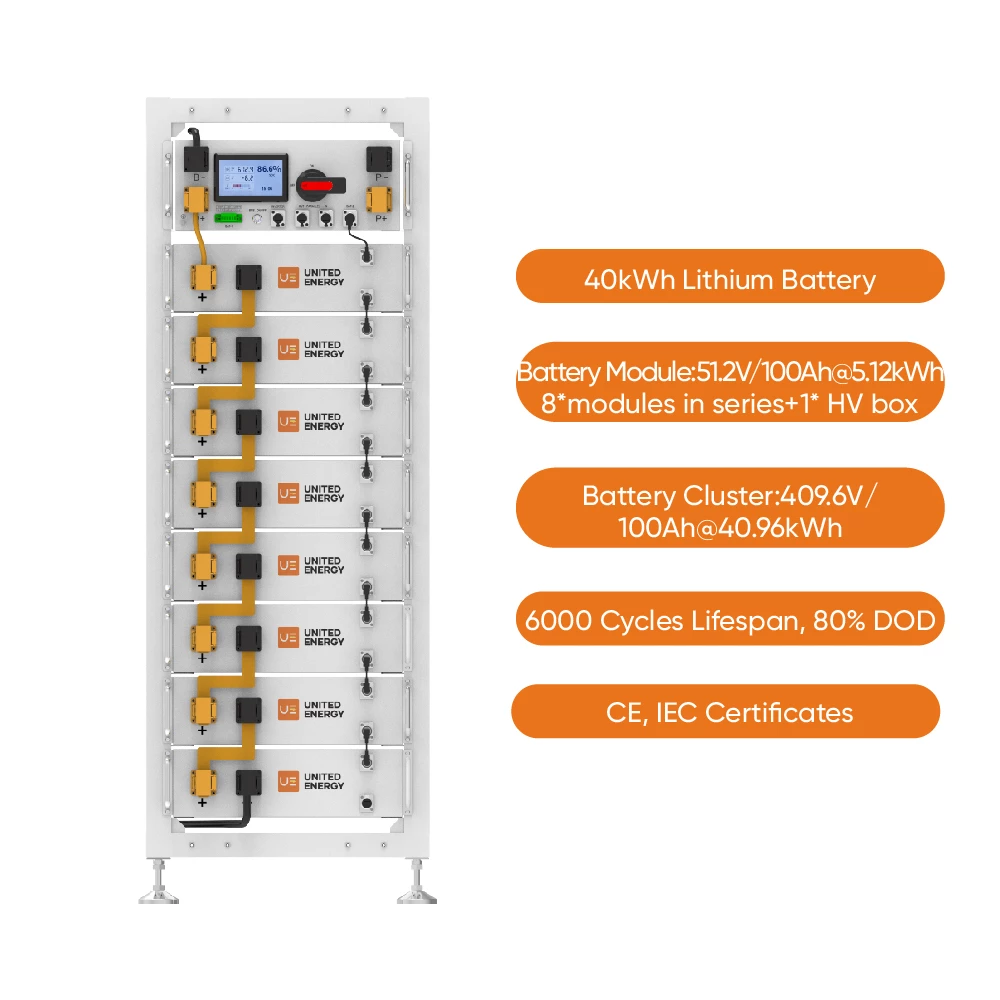

- 1 battery cluster of 8 HV modules + 1 HV box, totaling 40.96kWh usable energy (409.6V @ 100Ah), with CE/IEC certification
- All necessary DC/AC cables, mounting brackets, and monitoring platform

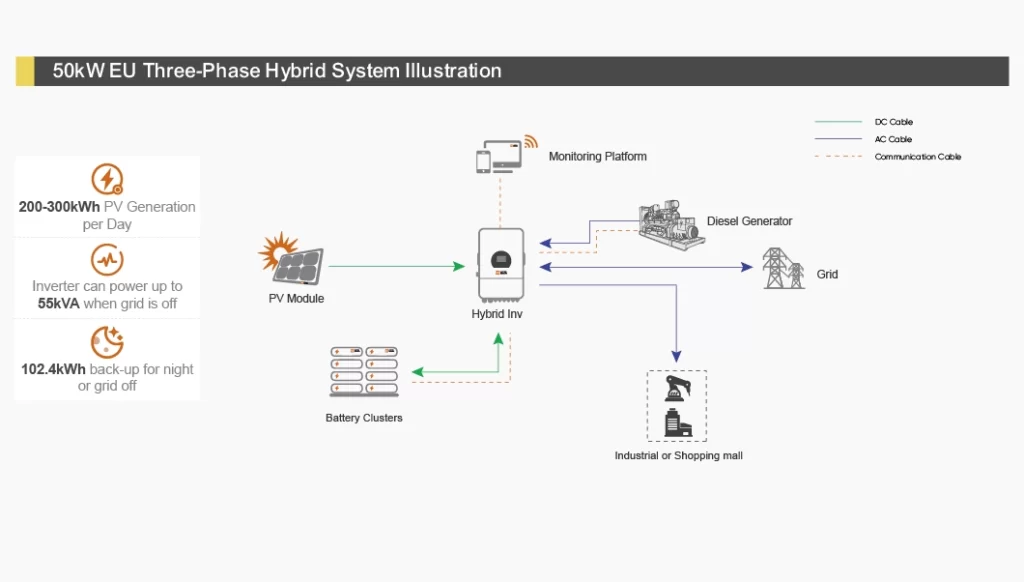

The inverter supports generator input, off-grid operation, and smart energy scheduling, making it ideal for rural electrification, commercial self-consumption, or critical load backup.
Battery configurations are flexible from 40kWh to 100kWh, and inverter parallel operation is supported up to 10 units.
Technical Specifications
| Component | Specification |
|---|---|
| Inverter Model | 20kW 3-phase hybrid inverter |
| AC Output Voltage | 220/380V, 230/400V (50Hz), 3L/N/PE |
| Max AC Power | 22kVA (off-grid mode) |
| MPPT Range | 150–850V |
| MPPT Inputs | 2 |
| Inverter Efficiency | Max 97.6% |
| Solar Panel Model | UE-590T-72HBD (590W Topcon) |
| Panel Quantity | 36 pcs |
| Daily PV Generation | 80–120kWh/day |
| Battery Cluster | HV 409.6V / 100Ah = 40.96kWh |
| Battery Chemistry | LiFePO₄ (LFP) |
| Battery Voltage Range | 368.4V – 460.8V |
| Battery Scalability | 40kWh to 100kWh |
| Monitoring | WiFi module, remote cloud platform |
| Installation Type | Rooftop PV + floor/wall-mount battery |
| Certifications | CE, IEC for inverter, battery, PV modules |
| Application | Villas, schools, farms, offices, shops |
