Product Description
The Easybat Roller-LV-10K & 15K lithium battery packs are designed to provide flexible, efficient, and durable energy storage in a portable format. With advanced LiFePO₄ chemistry, they deliver over 8000 cycles of reliable performance under daily use, making them ideal for hybrid solar systems, mobile power stations, or emergency backup.
Engineered with mobility in mind, the Roller Series features a compact wheeled design for effortless transport and positioning. Its IP65-rated housing protects against dust and moisture, allowing outdoor operation. With natural cooling, parallel expansion, and optional heating elements, it adapts to diverse use cases—from high-humidity farms to off-grid cabins.

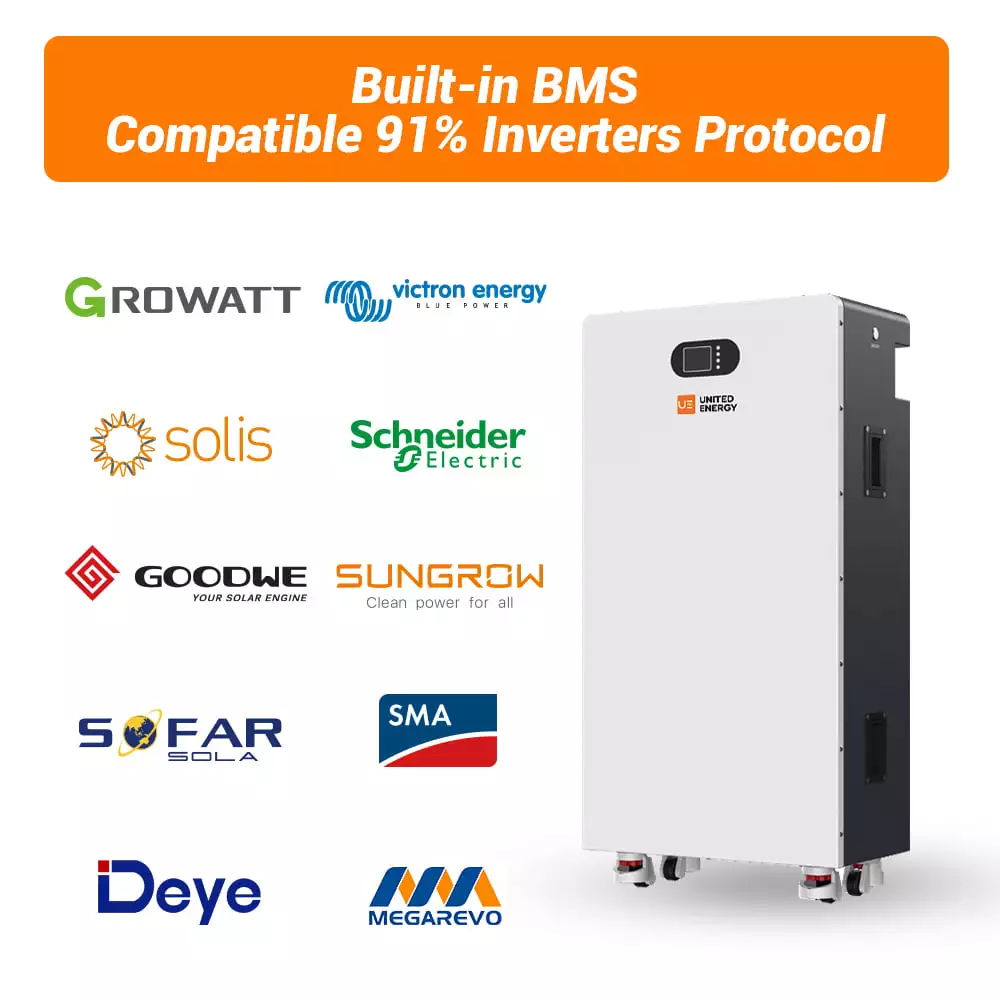

Thanks to CAN/RS485 communication, it's also compatible with most popular hybrid inverters, such as those in the UE SEI-SP series.
Technical Specifications
| Specification | Roller-LV-10K | Roller-LV-15K |
|---|---|---|
| Nominal Energy | 10.49kWh | 14.33kWh |
| Nominal Capacity | 205Ah | 280Ah |
| Nominal Voltage | 51.2V | 51.2V |
| Operating Voltage Range | 40V–58.4V | 40V–58.4V |
| Max Charging/Discharging | 150A / 200A | 150A / 200A |
| Depth of Discharge (DOD) | 90% | 90% |
| Cycle Life (0.5C @ 25°C) | ≥8000 Cycles | ≥8000 Cycles |
| Communication | CAN / RS485 | CAN / RS485 |
| Installation Type | Mobile (with rollers) | Mobile (with rollers) |
| Cooling Method | Natural Air Cooling | Natural Air Cooling |
| Protection Rating | IP65 | IP65 |
| Operating Temp (Charge) | 0°C to 55°C | 0°C to 55°C |
| Operating Temp (Discharge) | -20°C to 55°C | -20°C to 55°C |
| Weight | 85 kg | 109.5 kg |
| Dimensions (W×H×D mm) | 741×480×251 | 881×480×251 |
