150kW Three-Phase Hybrid Solar + ESS System Product Description
The 150kW Three-Phase Hybrid PV+ESS System offers a reliable, scalable, and high-efficiency power solution for mid-sized industrial and commercial applications. With 216 bifacial Topcon solar panels (720W each), this system delivers up to 900kWh of clean energy per day, paired with a 315kWh high-voltage lithium battery storage system.

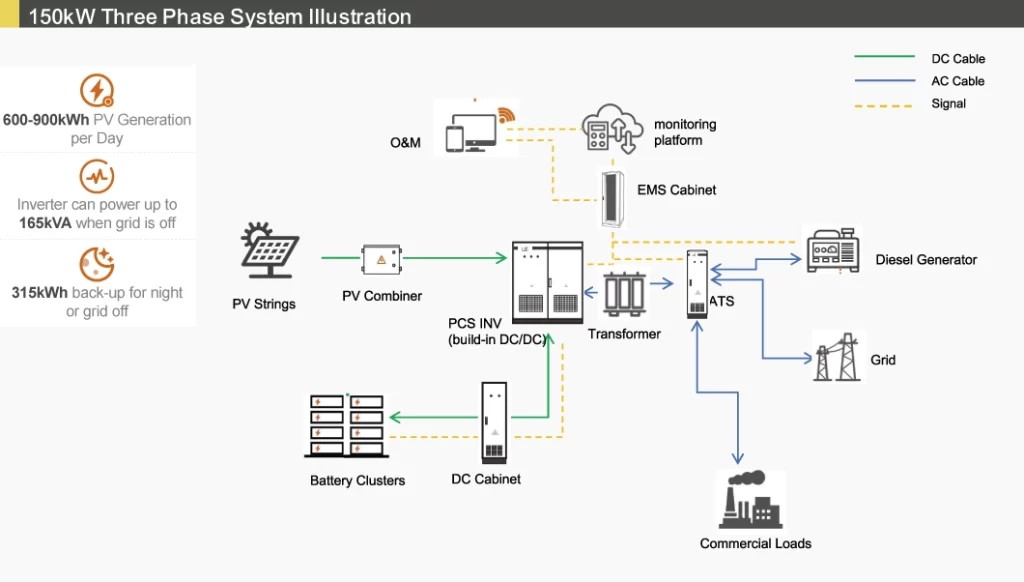

At the heart of the system is a 150kW hybrid inverter featuring an isolated transformer, built-in ATS cabinet, and intelligent MPPT optimization. It supports both grid-tied and off-grid operation, as well as automatic generator integration.

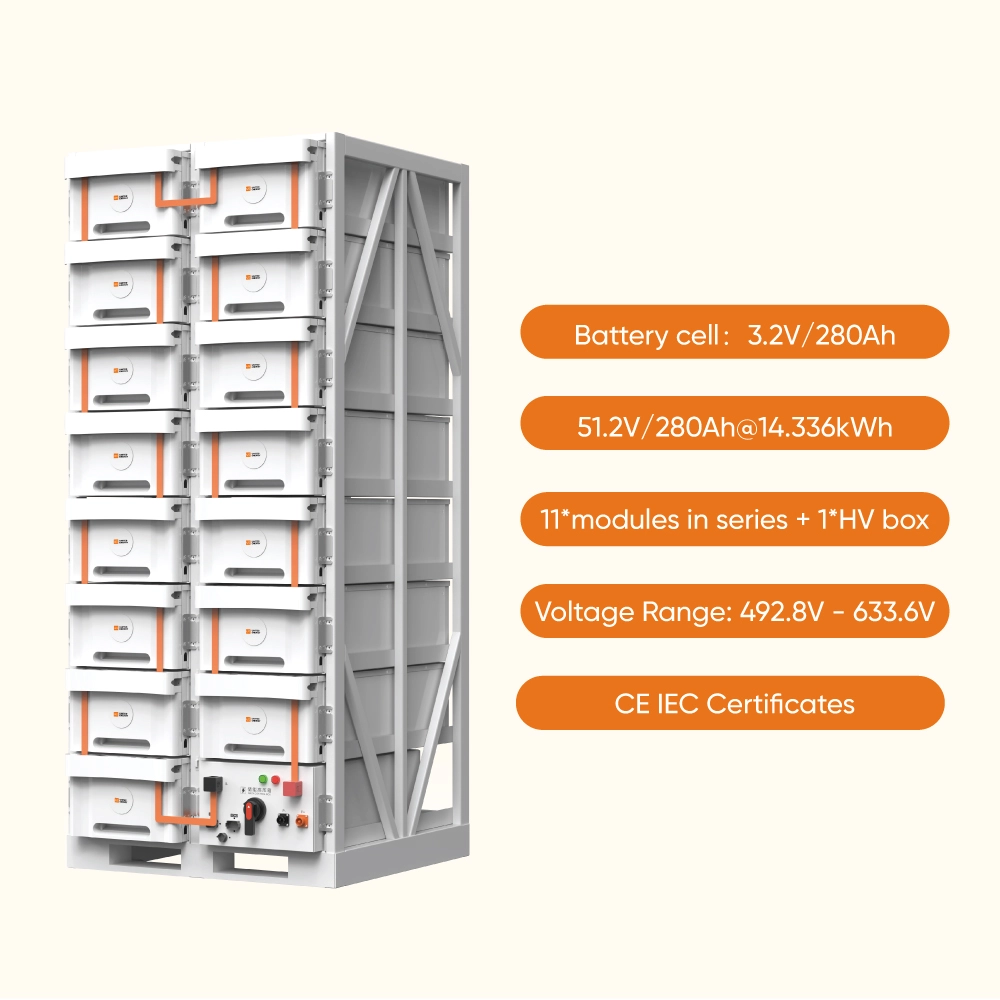

Two 157kWh battery clusters provide robust nighttime or backup power with advanced safety and monitoring features. The system supports optional EMS integration with touch screen, UPS, and communication modules, offering seamless management and real-time control.

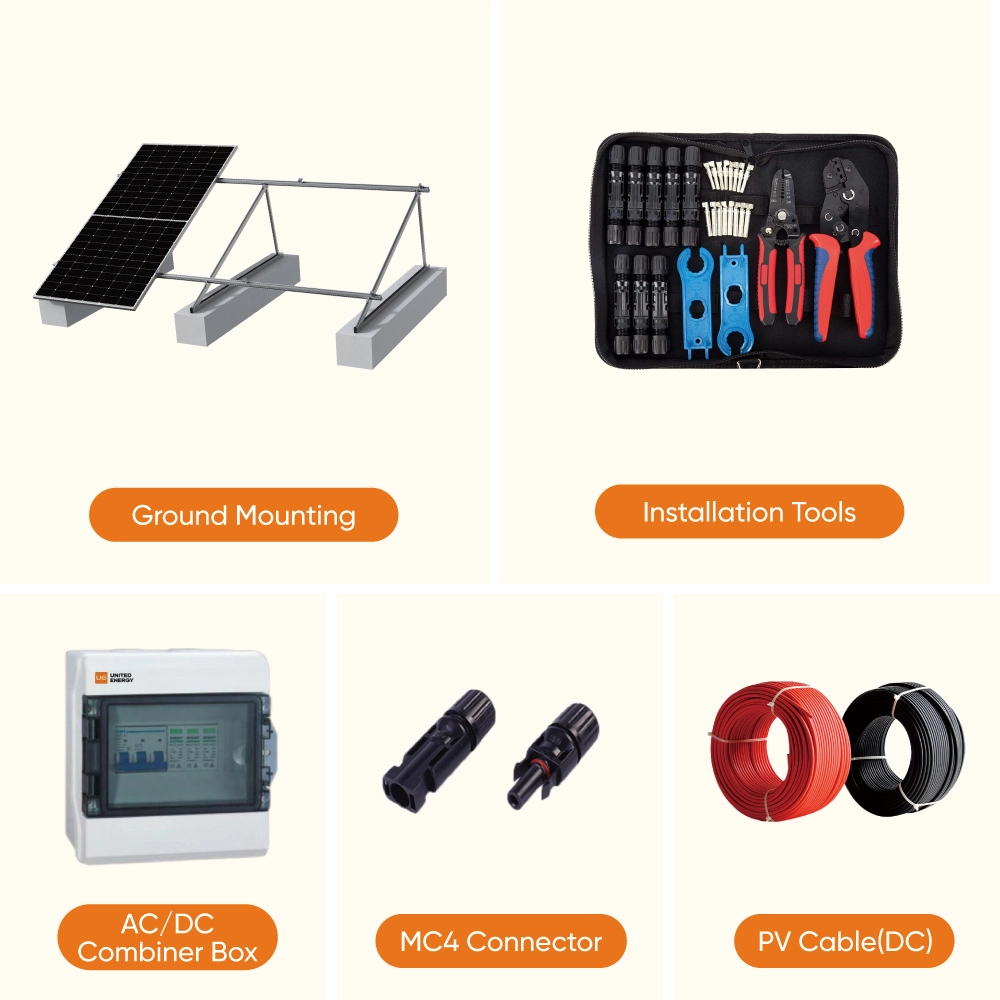

All components—including mounting systems, PV and battery combiner boxes, and accessories—are bundled in a one-stop delivery format, making installation and O&M easy and efficient.
150kw System Components Summary
| Component | Specification |
|---|---|

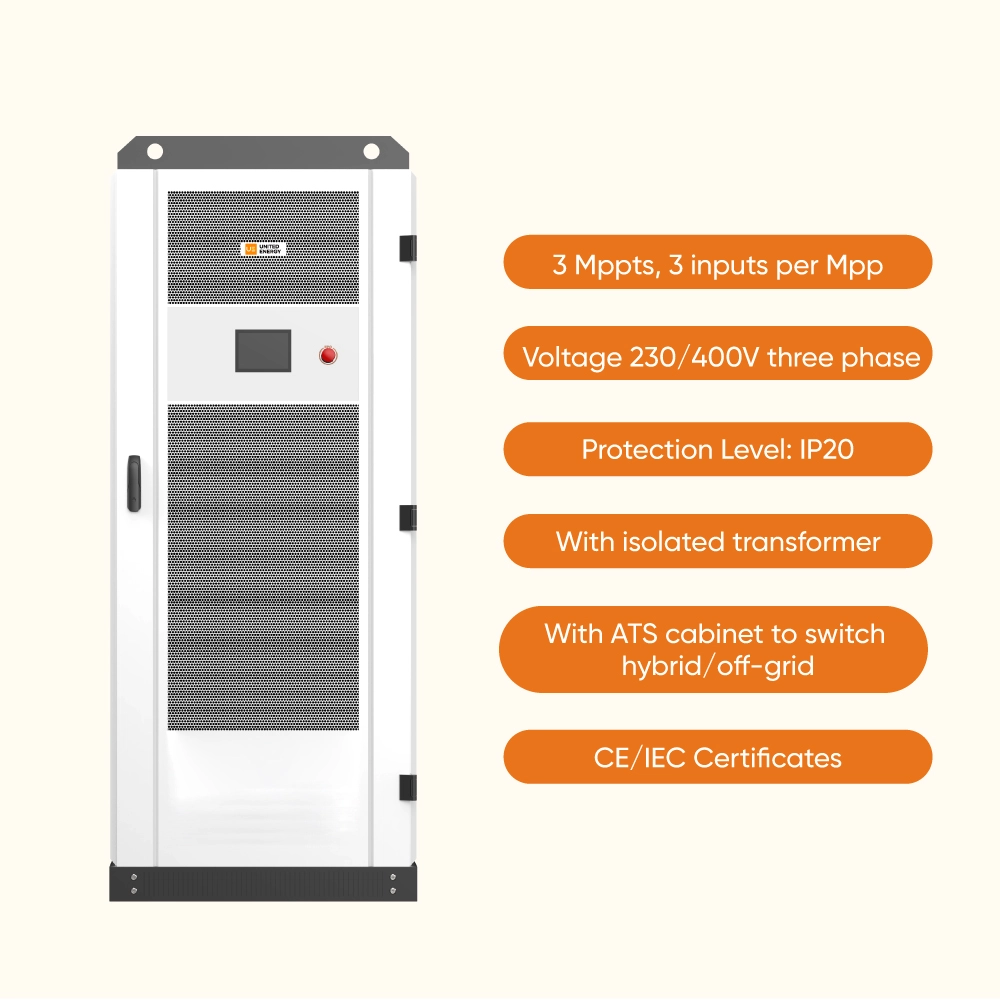

| Inverter | 150kW Hybrid (3 MPPTs, 165kVA peak, transformer-isolated, ATS built-in) |

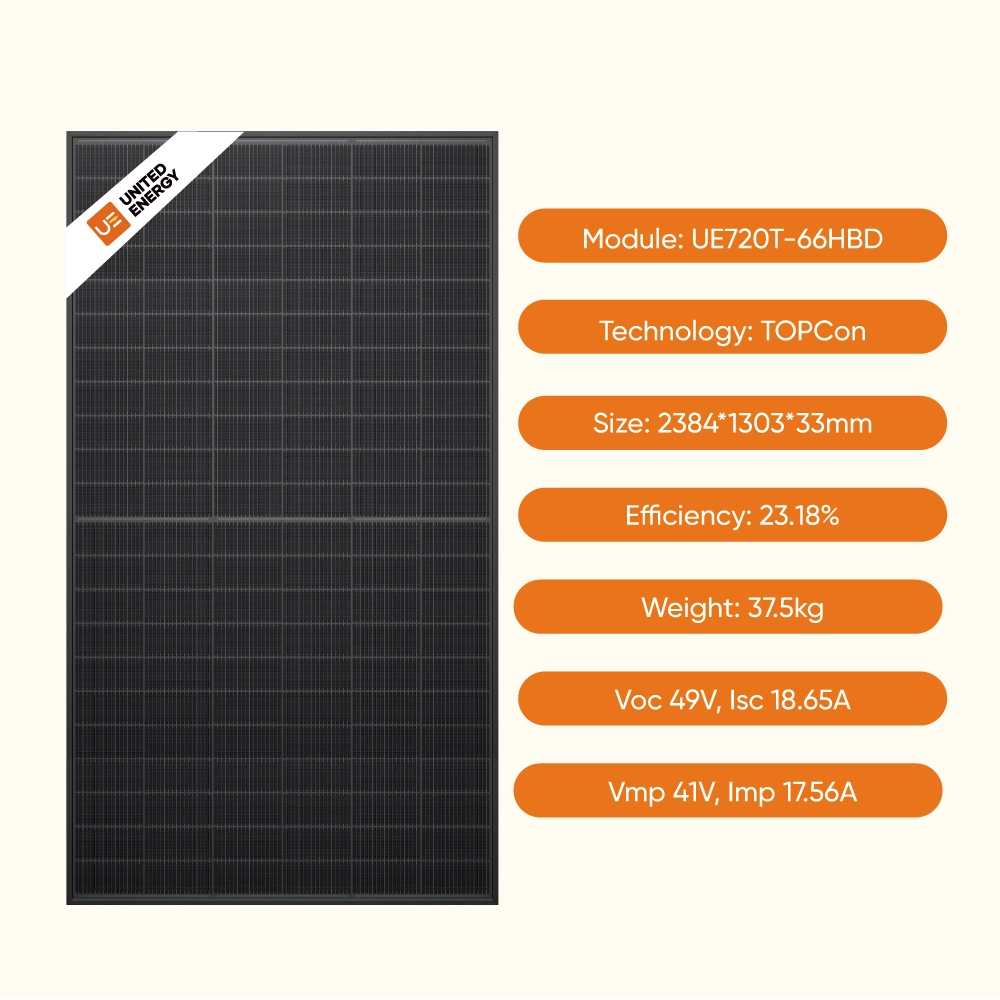

| Solar Panels | 216 x 720Wp Topcon Bifacial, total 155.5kWp |
| Battery Storage | 2 x 157.7kWh HV LiFePO₄ Clusters, total 315kWh, 563.2V |
| Generation Output | 600–900kWh/day |
| Certifications | CE, IEC, TUV |
| Monitoring | WiFi, EMS (optional), local display, Web/App interface |
| Structure | Ground-mount system, aluminum alloy brackets, combiner boxes included |
