10kW PV+15kWh ESS in Jamaica

  • Jamaica 10kw photovoltaic project

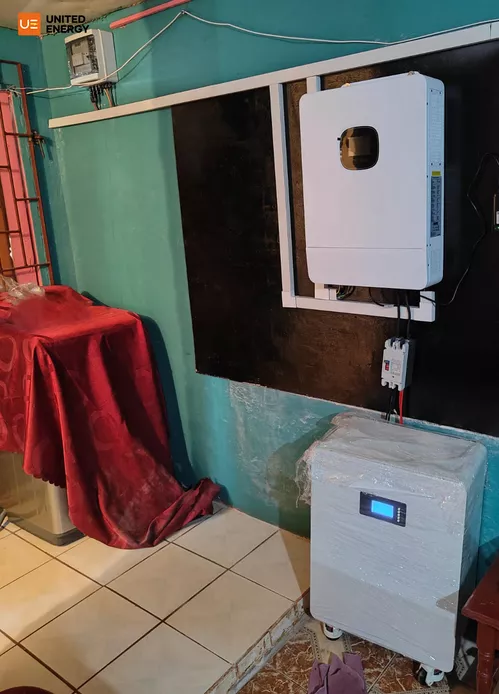

  • Inverter and energy storage battery installed indoors

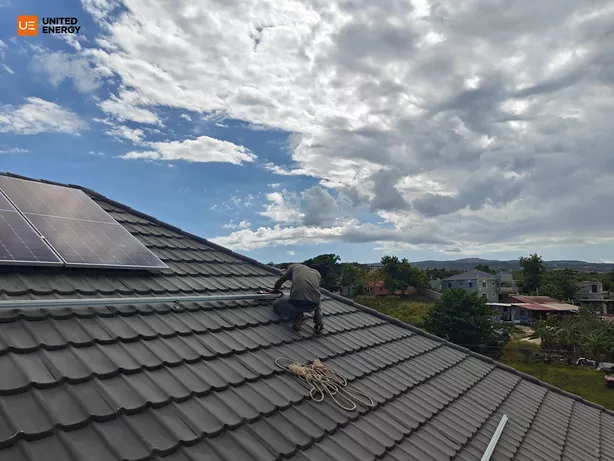

  • Photovoltaic mounting bracket for glazed tile roof

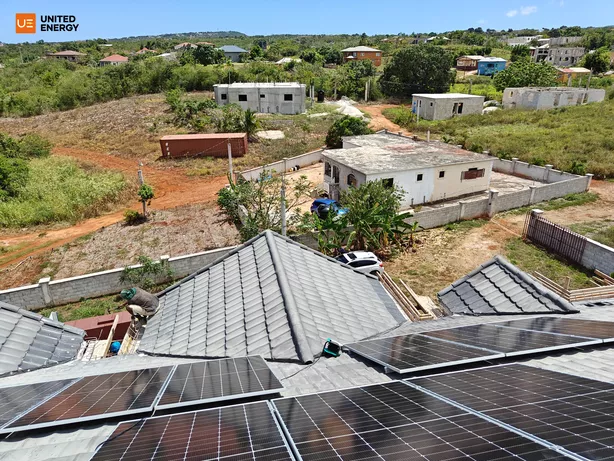

  • Photovoltaic panels installed on Jamaican rooftops

10kW PV+15kWh ESS in Jamaica

Location

Jamaica

Project Capacity

10 kW

Project Ready Date

2025-08-28

Module Type

580W TOPCon Bifacial Dual Glass Solar Panel

Module units

18 PCS

10kW Residential Off-grid Solar Project in Jamaica


To meet Jamaican residents' needs for reliable, clean electricity and capitalize on the region's abundant solar resources, we recently installed and commissioned a 10kW residential off-grid solar system. Below is a detailed breakdown of the key components selected for this project—each tailored to ensure a long-term, efficient, and independent energy supply for customer:

580W TOPCon Bifacial Dual Glass Solar Panel (18 PCS)

Model:UE580T-72HBD

Dimensions: 2279 x 1134 x 30mm

Weight: 32Kg

Max.Eff: 23.24%

Quantity: 18 PCS

10kW Off-grid Inverter (1 Unit)

Rated Power: 10kW

Output Voltage: 110/220Vac Split-phase

Battery Type: Lead-acid/ Li-ion

Rated Battery Voltage: 48V

Num. of MPPT Trackers: 2

MPPT Voltage Range: 125~425Vdc

15kWh Lithium Battery (1 Unit)

51.2V 300Ah

Total Capacity: 15.36kWh

Cycles Life: 8000 Cycles

Build-in BMS

Operating Temperature Range: - 20℃~ 45℃

Mounting System

Customized For 18pcs 580W Solar Panel

Designed for Glazed Tile Roof Installation

4mm² Single-core PV Cable 400m Length

MC4 Connector 10 Sets

Data shows the system generates a stable 50 kWh of electricity per day—this has significantly reduced the homeowner’s reliance on the regional power grid and lowered their monthly electricity expenses. Even during Jamaica’s rainy seasons, the bifacial solar panels (which capture sunlight from both sides) and high-quality lithium battery ensure consistent power supply for daily needs, such as lighting, refrigeration, and home appliances.

Looking ahead, UE will continue to provide clean energy solutions to more regions worldwide, leveraging high-quality products and professional services. We are particularly focused on supporting markets like Jamaica—where abundant solar resources meet urgent demand for reliable power. We also look forward to partnering with more local friends in Jamaica, bringing sustainable, affordable electricity to more households and communities.
