Product Description
The UEC 10kW + 20kWh PV + ESS system offers a powerful, scalable solution for businesses and energy-conscious property owners. It includes:

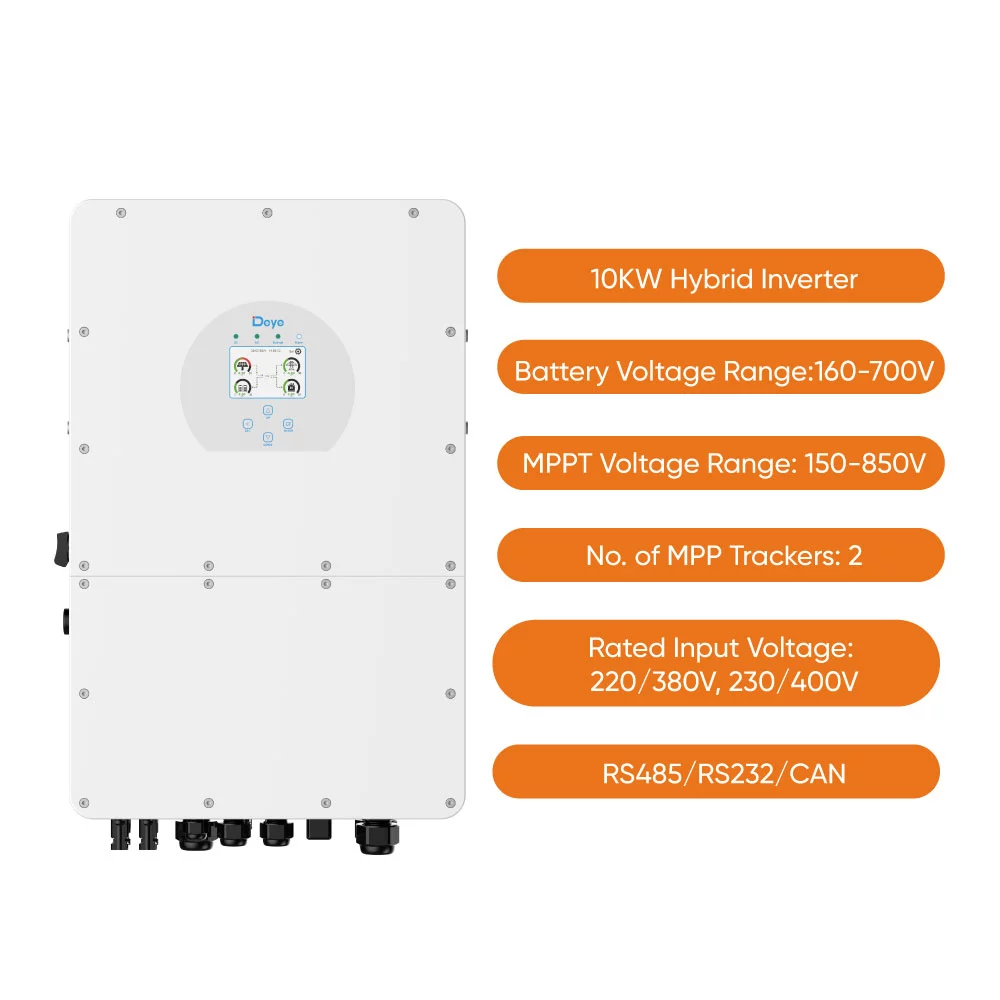

- A 10kW 3-phase hybrid inverter with 2 MPPTs, wide PV input range (150–850V), and up to 97.6% efficiency.

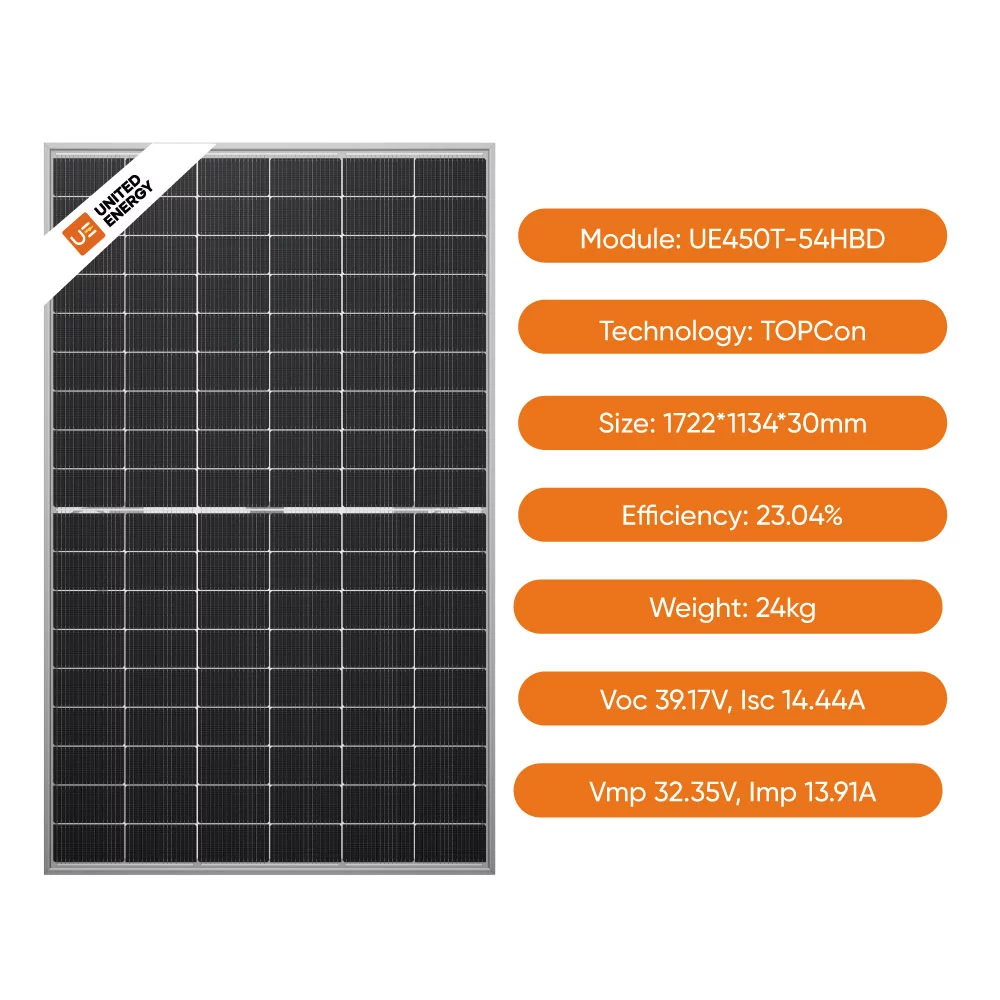

- 24 × 450W bifacial Topcon solar panels, capable of producing 40–60kWh daily, depending on region.

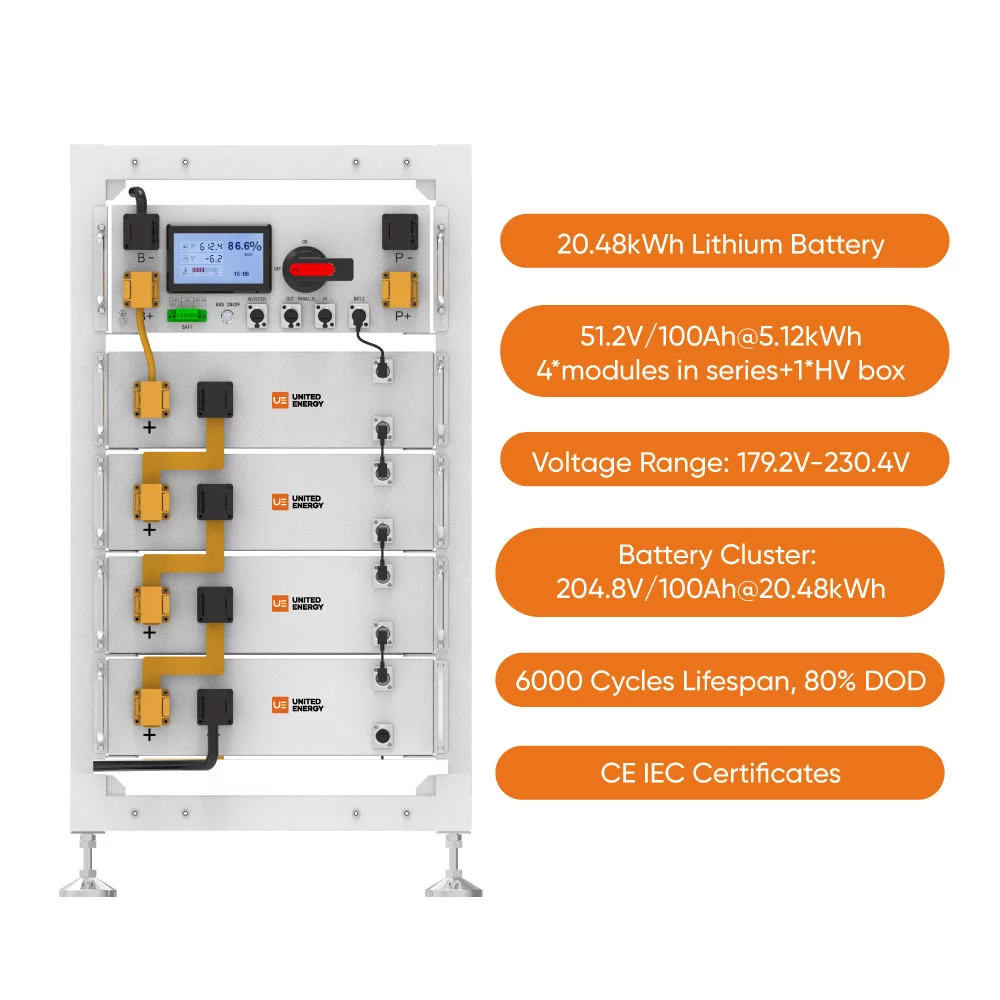

- A modular high-voltage LFP battery cluster (204.8V / 20.48kWh) with excellent safety, CE & IEC certification.

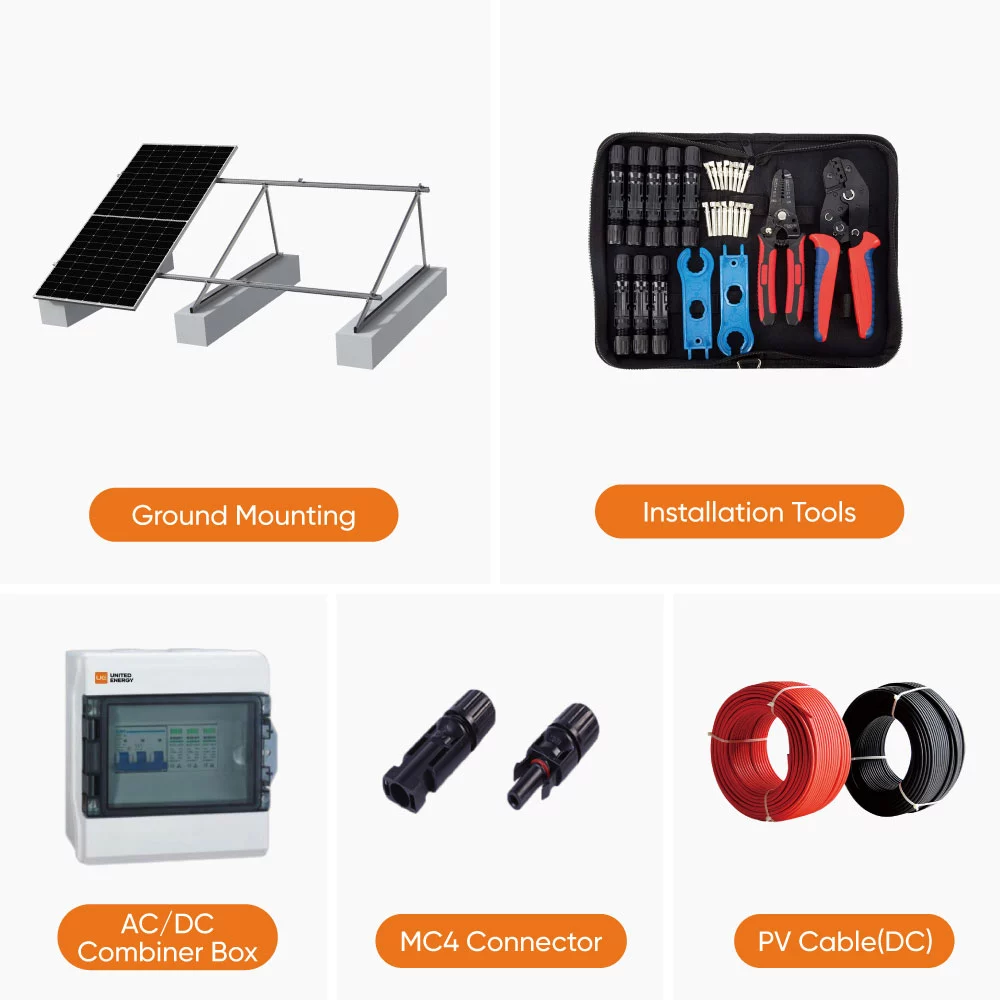

- All necessary DC/AC cables, communication lines, mounting structures, and monitoring platform.

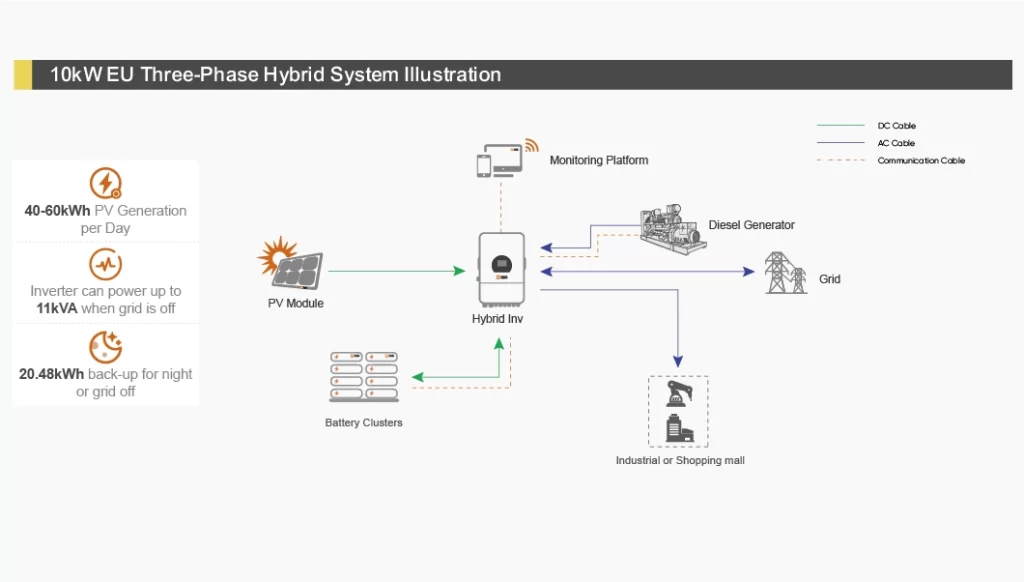

Thanks to its parallel inverter support (up to 16 units) and expandable battery bank, this system can scale with your needs. It also supports diesel generator integration and smart load prioritization, making it ideal for small industrial settings or rural commercial users.
Whether you're looking to reduce electricity bills or need reliable backup for mission-critical loads – this system delivers.
Technical Specifications
| Component | Specification |
|---|---|
| Inverter Model | EU Hybrid 10kW, 3-phase |
| AC Output Power | 10kW rated, 11kVA peak (off-grid) |
| PV Input | 2 MPPTs, 150–850V, Max 65A total |
| Max Efficiency | 97.6% |
| Output Voltage | 220/380V or 230/400V, 3L/N/PE |
| Battery Type | High-voltage LFP (LiFePO₄) |
| Battery Capacity | 20.48kWh (204.8V, 100Ah), modular |
| Battery Voltage Range | 179.2V – 230.4V |
| Solar Panels | 24 × 450W N-type Topcon bifacial |
| Mounting System | Aluminum roof brackets, CE certified |
| System Daily Output | 40–60kWh/day (location dependent) |
| Monitoring | WiFi-based platform, real-time status |
| Parallel Capability | Up to 16 inverters in parallel |
| Certifications | CE, IEC for inverter, battery, PV |
| Application | Small commercial, office buildings, factories, farms |
