Product Overview
The UER-100kW-200kWh(US) is a high-performance hybrid energy storage system specifically engineered for the US commercial and industrial (C&I) market. Integrating the latest 620Wp N-Type Topcon Bi-facial Solar Modules, US-spec three-phase hybrid inverters, and high-voltage lithium battery clusters, this system delivers a comprehensive turnkey energy solution.
With a standard 100kW AC output and 200kWh storage capacity, the system generates 476-714 kWh per day. Whether you aim to reduce peak electricity charges, achieve energy independence, or ensure critical load backup during grid outages, this system provides stable, green power for your business.
Performance & Applications
Key Performance Metrics
- Daily PV Generation: 476 - 714 kWh (Depending on irradiance)
- Max AC Power: 110 kVA
- Backup Capacity: 200.7 kWh (Supports night or grid-off operation)
- Grid Specification: 277/480V Three-Phase, 60Hz (US Standard)
Ideal Use Cases
- 🏭 Industrial Parks / Factories
- Cost Reduction: Self-generation reduces peak electricity charges.
- Continuity: 200kWh+ backup prevents production stoppage due to grid fluctuations.
- 🛒 Shopping Malls / Commercial Buildings
- Green Image: Enhance ESG performance with clean energy.
- Peak Shaving: Discharge storage during peak hours to lower demand charges.
- 🏗️ Remote Areas / Microgrids
- Energy Independence: Supports off-grid operation and generator integration.
- Scalability: Parallel inverter design meets future load growth.
System Configuration & Specifications
| Component | Model / Description | Key Specifications | Qty |
|---|---|---|---|

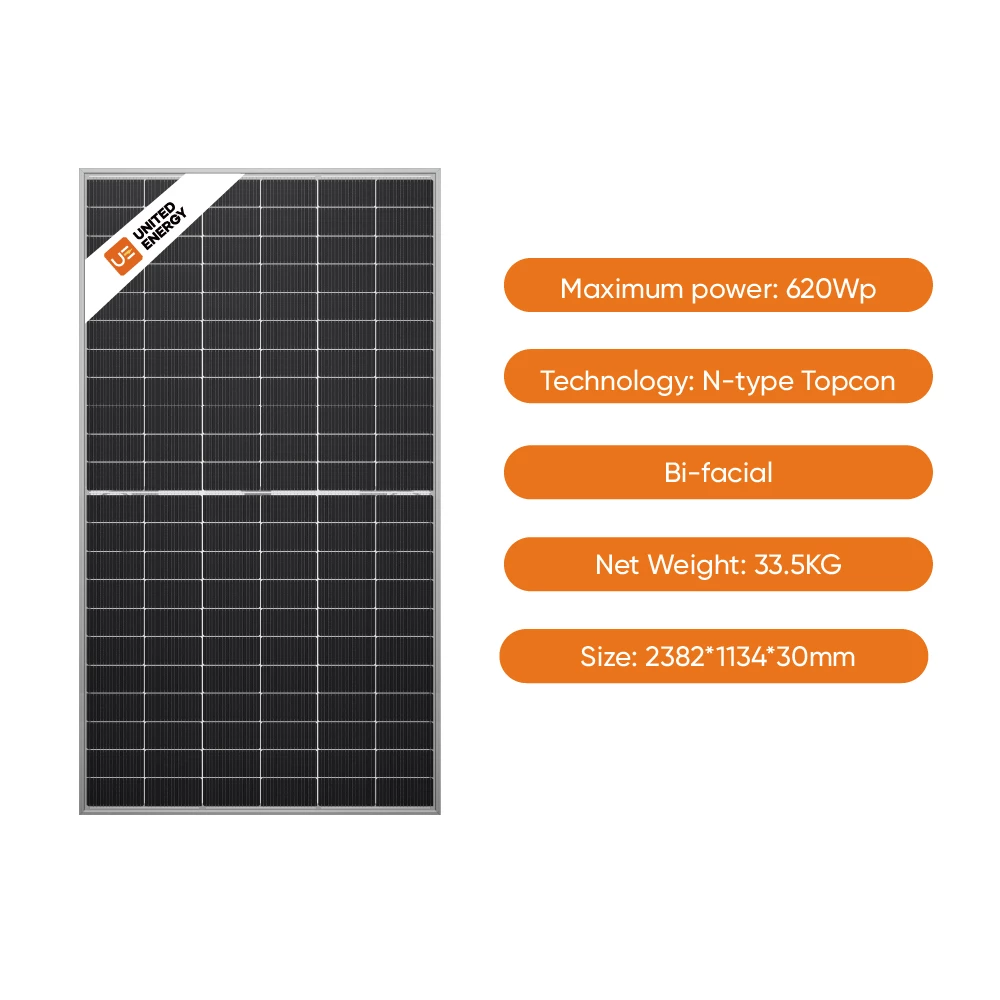

| Solar Module | UE620T-66HBD | Power: 620Wp Tech: N-type Topcon, Bi-facial Size: 2382113430mm Weight: 33.5KG | 160 pcs |

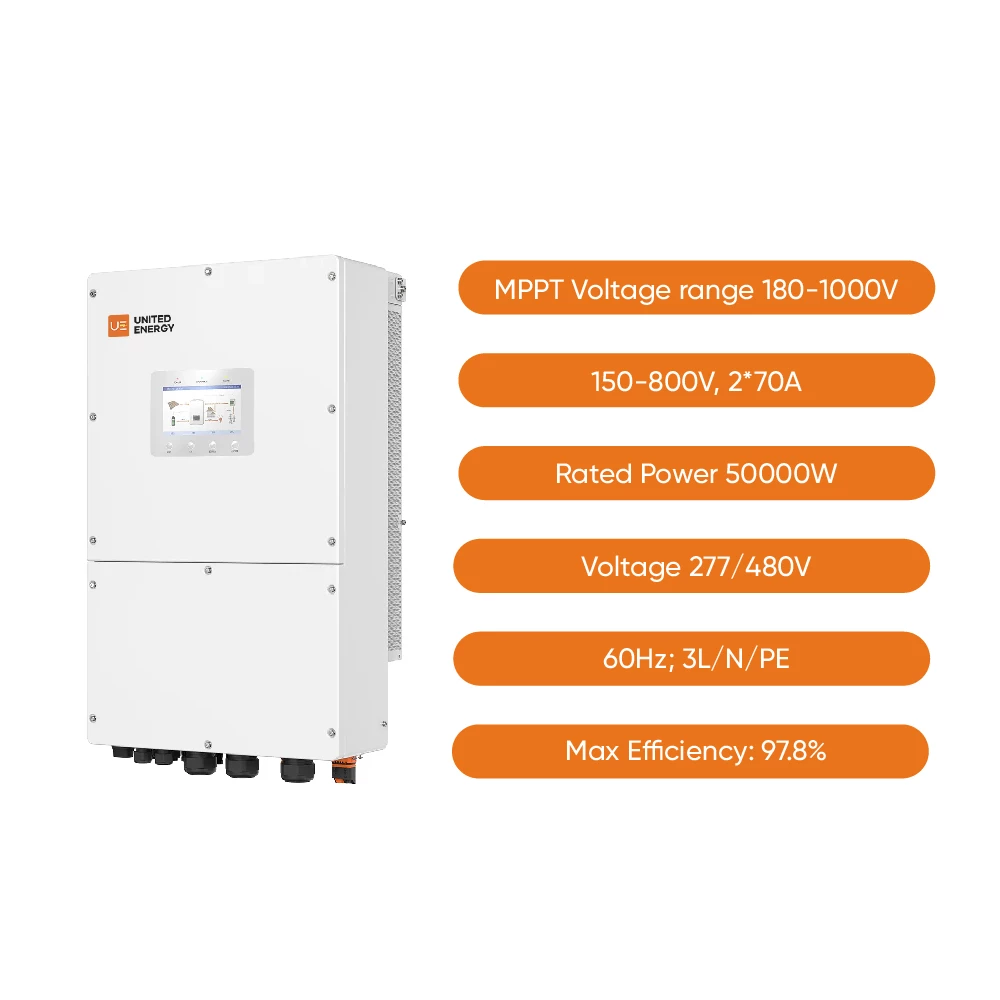

| Hybrid Inverter | US 50kW Hybrid Inverter (WiFi Included) | PV Side: MPPT 180-1000V, 4 MPPTs per unit Battery: 150-800V, 2*70A AC Side: 50kW, 277/480V, 60Hz, 3L/N/PE Efficiency: 97.8% Max | 2 pcs |

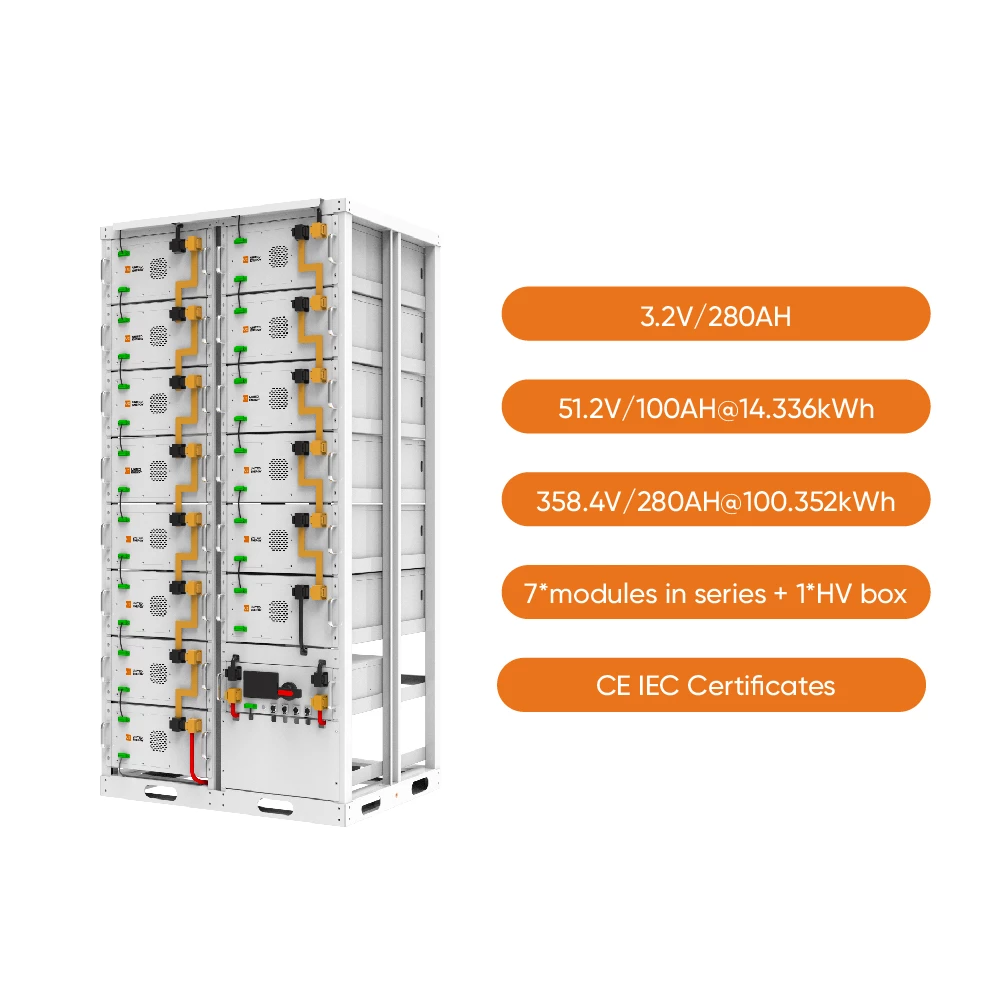

| HV Lithium Battery | Battery Cluster (Cables & Rack Included) | Cell: 3.2V/280Ah Module: 51.2V/100Ah @ 14.336kWh Cluster: 358.4V/280Ah @ 100.352kWh Cert: CE, IEC | 2 Clusters |
| Mounting System | Aluminum Alloy Bracket | Roof Installation System All Accessories Included Cert: CE, IEC | 1 Set |
| Accessories | Optional | AC Distribution Box, DC Battery Combiner Box, PV Cable (DC), MC4 Connector, Installation Tools | Optional |
Estimated ROI (Return on Investment)
(Based on typical commercial electricity rates)
Example Calculation (Commercial Rate $0.25/kWh):
- Daily Self-Consumption: 500kWh × $0.25 = $125/Day
- Annual Savings: ≈ $45,625
- Including Peak Shaving & Demand Charge Optimization, Estimated Payback Period: 4-6 Years
