Product Overview
The UEI-1.2MW-2.5MWh is a utility-scale, fully containerized photovoltaic + energy storage hybrid system engineered for mission-critical industrial, commercial, and community-scale applications in the US market.
Housed in a pre-fabricated 20GP battery container with integrated liquid cooling, fire suppression, and environmental controls, this turnkey solution features the latest 720Wp N-Type Topcon solar modules, a distributed architecture with four 275kW PV inverters (48 MPPTs total) and six 200kW PCS inverters, six high-voltage battery clusters (2.5MWh total), and optional EMS intelligent control. With daily PV generation of 4,800–7,200 kWh and seamless hybrid/off-grid switching via integrated ATS, this system delivers enterprise-grade energy independence for heavy manufacturing, data centers, mining operations, utility-scale solar farms, and resilient microgrids.
System Configuration & Technical Specifications
| Component | Model / Description | Key Specifications | Qty |
|---|---|---|---|

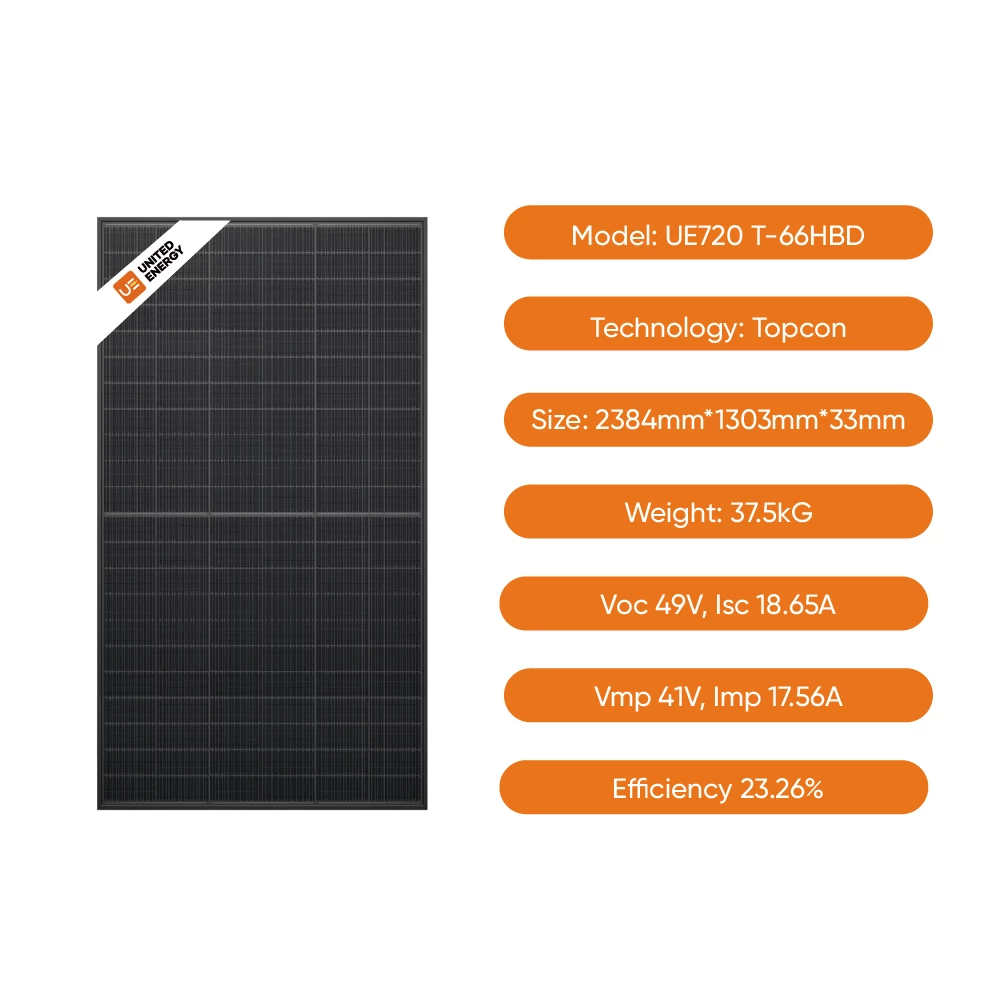

| Solar Module | UE720T-66HBD | Power: 720Wp Technology: N-Type Topcon Efficiency: 23.26% Dimensions: 2384×1303×33mm Weight: 37.5 kg Electrical: Voc 49V, Isc 18.65A, Vmp 41V, Imp 17.56A | 1,664 pcs (26 pcs/string, 64 strings) |

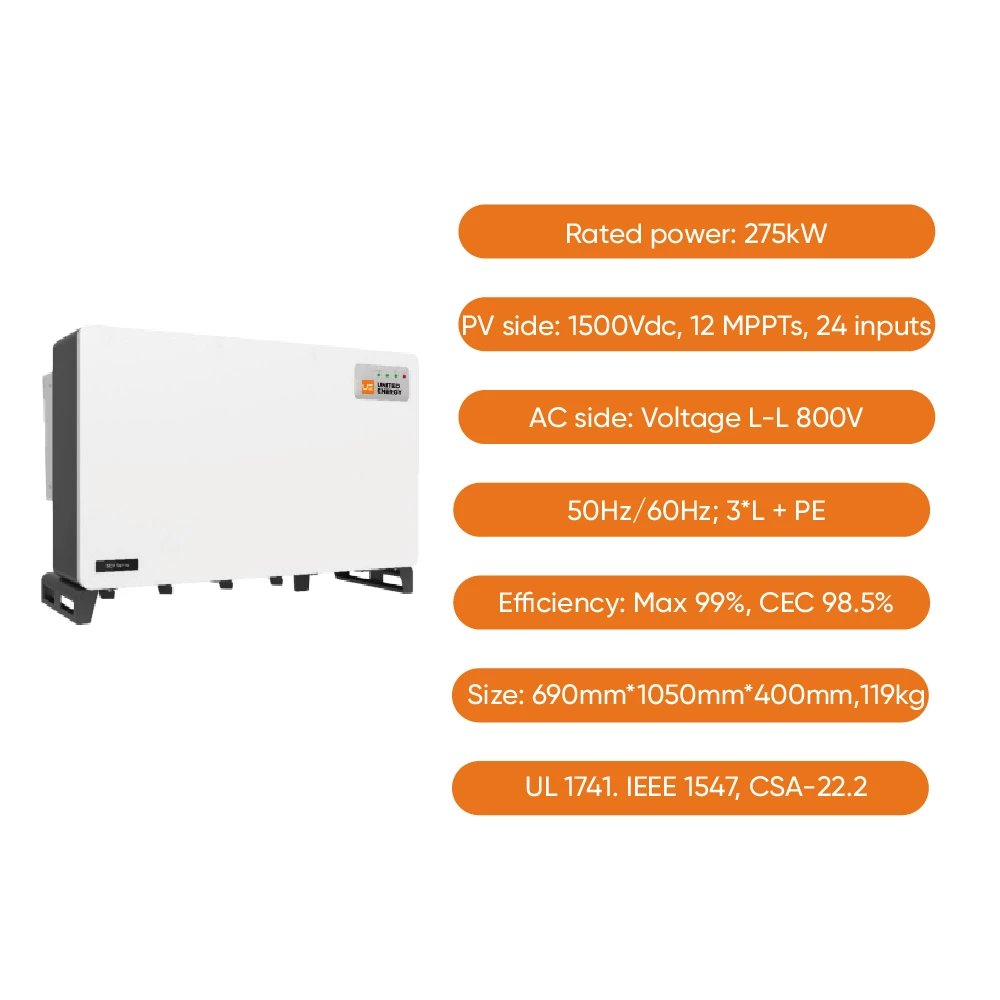

| PV Inverter | US 275kW Grid-Tied Inverter | PV Side: 1500Vdc, 12 MPPTs, 24 inputs per unit AC Side: 800V L-L, 50/60Hz, 3L+PE Efficiency: Max 99%, CEC 98.5% Cooling: Air Size/Weight: 690×1050×400mm, 119kg Cert: UL 1741, IEEE 1547, CSA-22.2 | 4 units |
| PCS Inverter | US 200kW Hybrid PCS Inverter | Battery Side: 875–1500V, Max 218A, 207kW AC Side: 800V L-L, 50/60Hz, 3L+PE Efficiency: Max 98%, CEC 97% Cooling: Air With isolated transformer | 6 units |

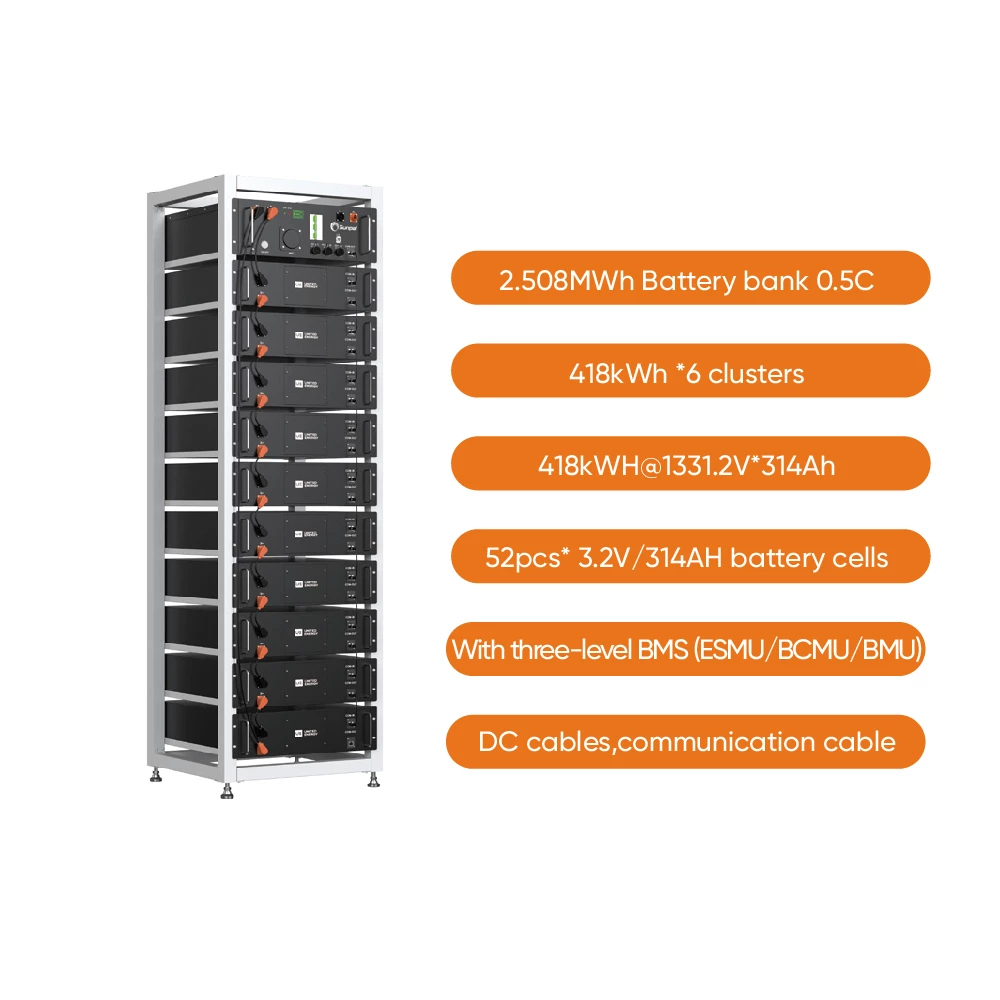

| HV Lithium Battery | Battery Cluster (Cables & Rack Included) | Cell: 3.2V/314Ah Module: 52 cells × 3.2V/314Ah = 166.4V/314Ah @52.4kWh Cluster: 1331.2V/314Ah @418kWh (8 modules + HV box) BMS: Three-level (ESMU/BCMU/BMU) Cert: IEC 62619 / CE / UN38.3 | 6 clusters (Total: 2.508MWh) |
| Battery Container | 20GP Pre-Fab Container | Protection: IP54 Safety: Integrated fire extinguishing system Thermal: Liquid cooling system 40kW Infrastructure: Lighting, ventilation, power supply | 1 unit |
| Battery Combiner Cabinet | 6-in-1 Combiner | Input: 6 clusters; Output: 1 circuit to PCS inverters Features: Input breaker, output switch, SPD | 1 unit |
| Pad-Mounted Transformer | 1250kVA Step-Down Transformer | Primary/Secondary: 800Vac / 480Vac or 400Vac Frequency: 50/60Hz LV Cabinets: For 4 PV inverters + 6 PCS inverters input & output | 1 unit |
| Ground-Mounting Structure | Ground-Mount System | Designed for 1,664×720Wp modules All hardware included Cert: CE/IEC | 1 set |
| EMS Cabinet (Optional) | Energy Management System | Controller + software, I/O modules, 8×GE switches, 1kVA UPS (60min), HMI screen | 1 unit |
| Accessories (Optional) | Cables, MC4 Connectors, Installation Tools | Customizable per site requirements | 1 set |
Performance Metrics & Applications
Key Performance Data
| Metric | Value |
|---|---|
| Daily PV Generation | 4,800 – 7,200 kWh (location-dependent) |
| Max AC Output Power | 1,200 kVA |
| Standard Backup Capacity | 2.5 MWh usable (configurable 418kWh–2.5MWh) |
| Grid Specification | 480V / 400V Three-Phase, 60Hz (US Standard) |
| System Efficiency | ≥96% (end-to-end) |
| Deployment Time | ~60% faster vs. traditional stick-built systems |
Ideal Applications
| Sector | Key Benefits |
|---|---|
| 🏭 Heavy Manufacturing / Steel / Cement | Eliminate production downtime with 2.5MWh backup; reduce demand charges via intelligent peak shaving; leverage time-of-use arbitrage. |
| 💻 Hyperscale Data Centers | Provide UPS-grade resilience with seamless ATS switching; meet Scope 2 emissions targets with verifiable renewable integration. |
| ⛏️ Mining & Remote Industrial Sites | Enable energy independence in off-grid locations; integrate diesel generators for extended runtime with automatic fuel optimization. |
| 🌐 Utility-Scale Solar + Storage Farms | Deploy as a modular building block for larger installations; AC-coupled design simplifies grid interconnection and curtailment management. |
| 🏘️ Community Microgrids / Critical Infrastructure | Serve as the core asset for resilient community power; scalable architecture supports phased deployment and multi-stakeholder ownership. |
Estimated ROI & Value Proposition
(Illustrative calculation based on US industrial/utility rates)
📊 Sample Scenario (Avg. Rate: $0.32/kWh + Demand Charges):
- Daily Solar Self-Consumption: ~6,000 kWh × $0.32 = $1,920/day
- Annual Energy Savings: ≈ $700,800
- Demand Charge Reduction (Peak Shaving): ~$80,000–$200,000/year
- Backup Power Value: Avoided downtime costs (e.g., data center: $100k+/hour; manufacturing: $10k+/hour)
- Estimated Payback Period: 3–5 years (with applicable federal/state incentives, e.g., ITC, SGIP)
